Honda Civic IV 1.6i 16V (110 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

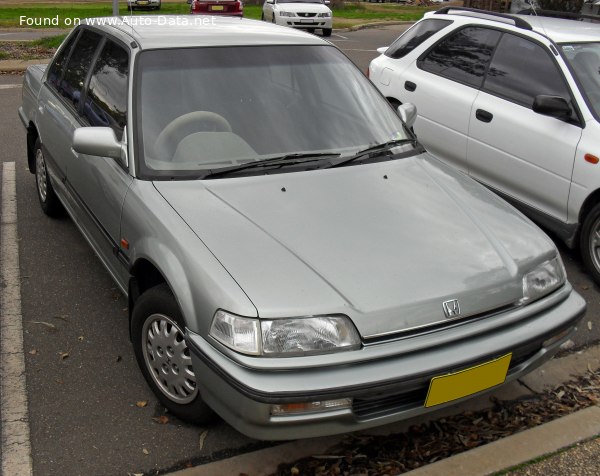

Honda Civic IV 1.6i 16V (110 Hp) /Sedan 1987 - 1991/

What is the body type of Honda Civic IV?

Sedan

How fast is 1987 Civic IV 1.6i 16V (110 Hp)?

185 km/h | 115 mph

What is the power output of Honda Civic Sedan 1987 1.6i 16V (110 Hp)?

110 Hp, 134 Nm
99 lb.-ft.

What is the engine displacement of Honda Civic Sedan 1987 1.6i 16V (110 Hp)?

1.6 l
1590 cm³
97.03 cu. in.

What is the number of cylinders in 1987 Honda 1.6i 16V (110 Hp)?

What is the drivetrain of Honda Civic IV Sedan 1987 1.6i 16V (110 Hp)?

Internal Combustion engine.

What is the length of 1987 Honda Civic Sedan?

4295 mm
169.09 in.

What is the width of 1987 Honda Civic Sedan?

1695 mm
66.73 in.

What is the kerb weight of 1987 Honda Civic IV 1.6i 16V (110 Hp)?

942 kg
2077 lbs.

What is the maximum permissible mass of 1987 Honda Civic IV 1.6i 16V (110 Hp)?

1410 kg
3109 lbs.

Honda
- Honda Civic
  - Civic IV
    - 1.6i 16V (110 Hp)
    - 1.6i 16V (109 Hp) 4x4
    - 1.6i 16V (107 Hp)
    - 1.5i 16V (90 Hp)
    - 1.4 (90 Hp)

Compare

General information

Brand

Honda

Model

Civic

Generation

Civic IV

Modification (Engine)

1.6i 16V (110 Hp)

Start of production

1987

End of production

1991

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Looking for Honda Civic on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

8.7 l/100 km 27 US mpg
32.5 UK mpg
11.5 km/l

Fuel consumption (economy) - extra urban

5.7-7.8 l/100 km 41.3 - 30.2 US mpg
49.6 - 36.2 UK mpg
17.5 - 12.8 km/l

Fuel Type

Petrol (Gasoline)

Maximum speed

185 km/h 115 mph

Weight-to-power ratio

8.6 kg/Hp, 116.8 Hp/tonne

Weight-to-torque ratio

7 kg/Nm, 142.3 Nm/tonne

Engine specs

Power

110 Hp @ 6300 rpm.

Power per litre

69.2 Hp/l

Torque

134 Nm @ 5200 rpm. 99 lb.-ft. @ 5200 rpm.

Engine Model/Code

D16Z2

Engine displacement

1590 cm³ 97.03 cu. in.

Number of cylinders

Cylinder Bore

75 mm 2.95 in.

Piston Stroke

90 mm 3.54 in.

Compression ratio

9.1:1

Number of valves per cylinder

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

3.5 l 3.7 US qt | 3.08 UK qt

Engine oil specification

Coolant

5.7 l 6.02 US qt | 5.02 UK qt

Volume and weights

Kerb Weight

942 kg 2077 lbs.

Max. weight

1410 kg 3109 lbs.

Max load

468 kg 1032 lbs.

Fuel tank capacity

45 l 11.89 US gal | 9.9 UK gal

Max. roof load

75 kg 165 lbs.

Permitted trailer load with brakes (12%)

700 kg 1543 lbs.

Permitted trailer load without brakes

420 kg 926 lbs.

Permitted towbar download

50 kg 110 lbs.

Dimensions

Length

4295 mm 169.09 in.

Width

1695 mm 66.73 in.

Height

1360 mm 53.54 in.

Wheelbase

2500 mm 98.43 in.

Front track

1450 mm 57.09 in.

Rear (Back) track

1455 mm 57.28 in.

Ride height (ground clearance)

150 mm 5.91 in.

Minimum turning circle (turning diameter)

10.4 m 34.12 ft.

Drivetrain, brakes and suspension specs

Tire size

175/70 R13

Wheel rim size

5J x 13

Specs of Honda Civic IV 1.6i 16V (110 Hp) /1987, 1988, 1989, 1990, 1991/
