Specs of Honda Civic IV Hatchback 1.6 i 16V (109 Hp) /1987, 1988, 1989/

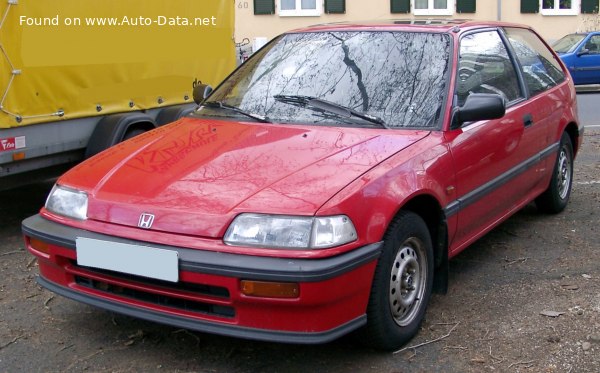

1987 Honda Civic IV Hatchback - Photo 1
Honda Civic IV Hatchback - Photo 2Honda Civic IV Hatchback - Photo 3Honda Civic IV Hatchback - Photo 4Honda Civic IV Hatchback - Photo 5Honda Civic IV Hatchback - Photo 6

Key specs

Honda Civic IV Hatchback 1.6 i 16V (109 Hp) /Hatchback 1987 - 1989/

What is the body type of Honda Civic IV Hatchback?
Hatchback, 3 Doors, 5 Seats
How fast is 1987 Civic IV Hatchback 1.6 i 16V (109 Hp)?
192 km/h | 119 mph
0-100 km/h: 8.9 sec
0-60 mph: 8.5 sec
What is the power output of Honda Civic Hatchback 1987 1.6 i 16V (109 Hp)?
109 Hp, 136 Nm
100 lb.-ft.
What is the engine displacement of Honda Civic Hatchback 1987 1.6 i 16V (109 Hp)?
1.6 l
1590 cm3
97.03 cu. in.
What is the number of cylinders in 1987 Honda 1.6 i 16V (109 Hp)?
4, Inline
What is the drivetrain of Honda Civic IV Hatchback Hatchback 1987 1.6 i 16V (109 Hp)?
Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
What is the length of 1987 Honda Civic Hatchback?
3991 mm
157.13 in.
What is the width of 1987 Honda Civic Hatchback?
1686 mm
66.38 in.
What is the kerb weight of 1987 Honda Civic IV Hatchback 1.6 i 16V (109 Hp)?
1007 kg
2220 lbs.
What is the maximum permissible mass of 1987 Honda Civic IV Hatchback 1.6 i 16V (109 Hp)?
1455 kg
3208 lbs.
What is the trunk (boot) capacity of 1987 Honda Civic Hatchback?
340 - 708 l
12 - 25 cu. ft.
What are the number of gears and the gearbox type of 1987 Honda Civic IV Hatchback 1.6 i 16V (109 Hp)?
5, manual transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Honda
Model
Civic
Generation
Civic IV Hatchback
Modification (Engine)
1.6 i 16V (109 Hp)
Start of production
October, 1987
End of production
December, 1989
Powertrain Architecture
Internal Combustion engine
Body type
Hatchback
Seats
5
Doors
3
Looking for Honda Civic on the used-car market?
Check its history →

Performance specs

Fuel Type
Petrol (Gasoline)
Acceleration 0 - 100 km/h
8.9 sec
Acceleration 0 - 62 mph
8.9 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
8.5 sec
Maximum speed
192 km/h 119 mph
Weight-to-power ratio
9.2 kg/Hp, 108.2 Hp/tonne
Weight-to-torque ratio
7.4 kg/Nm, 135.1 Nm/tonne

Engine specs

Power
109 Hp @ 6000 rpm.
Power per litre
68.6 Hp/l
Torque
136 Nm @ 5000 rpm. 100 lb.-ft. @ 5000 rpm.
Engine layout
Front, Transverse
Engine Model/Code
D16A6
Engine displacement
1590 cm3 97.03 cu. in.
Number of cylinders
4
Engine configuration
Inline
Compression ratio
9.1:1
Number of valves per cylinder
4
Fuel injection system
Multi-port manifold injection
Engine aspiration
Naturally aspirated engine
Valvetrain
SOHC
Engine oil capacity
4 l 4.23 US qt | 3.52 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
5.5 l 5.81 US qt | 4.84 UK qt

Volume and weights

Kerb Weight
1007 kg 2220 lbs.
Max. weight
1455 kg 3208 lbs.
Max load
448 kg 988 lbs.
Trunk (boot) space - minimum
340 l 12 cu. ft.
Trunk (boot) space - maximum
708 l 25 cu. ft.
Fuel tank capacity
45 l 11.89 US gal | 9.9 UK gal
Max. roof load
75 kg 165 lbs.
Permitted trailer load with brakes (12%)
700 kg 1543 lbs.
Permitted trailer load without brakes
410 kg 904 lbs.
Permitted towbar download
50 kg 110 lbs.

Dimensions

Length
3991 mm 157.13 in.
Width
1686 mm 66.38 in.
Height
1330 mm 52.36 in.
Wheelbase
2500 mm 98.43 in.
Front track
1450 mm 57.09 in.
Rear (Back) track
1450 mm 57.09 in.
Drag coefficient (Cd)
0.33
Minimum turning circle (turning diameter)
9.6 m 31.5 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel
Front wheel drive
Number of gears and type of gearbox
5 gears, manual transmission
Front suspension
Double wishbone
Rear suspension
Double wishbone
Front brakes
Disc
Rear brakes
Drum
Steering type
Steering rack and pinion
Power steering
Hydraulic Steering
Tire size
185/60 R14
Wheel rim size
5J x 14; 5.5J x 14
