Alfa Romeo 33 Sport Wagon (907B) 1.7 16V (132 Hp) 4x4 | Technical specs, data, fuel consumption, Dimensions

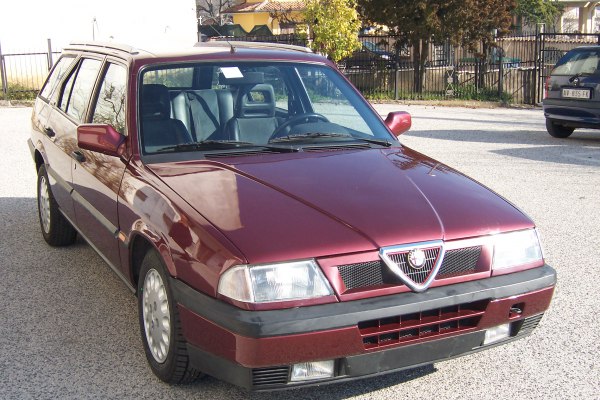

1990 Alfa Romeo 33 Sport Wagon (907B) - Photo 1

Key specs

Alfa Romeo 33 Sport Wagon (907B) 1.7 16V (132 Hp) 4x4 /Station wagon (estate) 1990 - 1992/

What is the body type of Alfa Romeo 33 Sport Wagon (907B)?

Station wagon (estate), 5 Doors, 5 Seats

How fast is 1990 33 Sport Wagon (907B) 1.7 16V (132 Hp) 4x4?

0-100 km/h: 9 sec
0-60 mph: 8.6 sec

What is the power output of Alfa Romeo 33 Station wagon (estate) 1990 1.7 16V (132 Hp) 4x4?

132 Hp, 155 Nm
114 lb.-ft.

What is the engine displacement of Alfa Romeo 33 Station wagon (estate) 1990 1.7 16V (132 Hp) 4x4?

1.7 l
1712 cm³
104.47 cu. in.

What is the number of cylinders in 1990 Alfa Romeo 1.7 16V (132 Hp) 4x4?

4, Boxer

What is the drivetrain of Alfa Romeo 33 Sport Wagon (907B) Station wagon (estate) 1990 1.7 16V (132 Hp) 4x4?

All wheel drive (4x4). Internal Combustion engine.

What is the length of 1990 Alfa Romeo 33 Station wagon (estate)?

4200 mm
165.35 in.

What is the width of 1990 Alfa Romeo 33 Station wagon (estate)?

1614 mm
63.54 in.

What is the kerb weight of 1990 Alfa Romeo 33 Sport Wagon (907B) 1.7 16V (132 Hp) 4x4?

1065 kg
2348 lbs.

What is the maximum permissible mass of 1990 Alfa Romeo 33 Sport Wagon (907B) 1.7 16V (132 Hp) 4x4?

1490 kg
3285 lbs.

What is the trunk (boot) capacity of 1990 Alfa Romeo 33 Station wagon (estate)?

350 - 1200 l
12.4 - 42.4 cu. ft.

What is the number of gears in What is the gearbox type of 1990 Alfa Romeo 33 Sport Wagon (907B) 1.7 16V (132 Hp) 4x4?

5, manual transmission

Alfa Romeo
- Alfa Romeo 33
  - 33 Sport Wagon (907B)

Compare

General information

Brand

Alfa Romeo

Model

Generation

33 Sport Wagon (907B)

Modification (Engine)

1.7 16V (132 Hp) 4x4

Start of production

1990 year

End of production

1992 year

Powertrain Architecture

Internal Combustion engine

Body type

Station wagon (estate)

Seats

Doors

Looking for Alfa Romeo 33 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

10 l/100 km 23.5 US mpg
28.2 UK mpg
10 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

9 sec

Acceleration 0 - 62 mph

9 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

8.6 sec

Weight-to-power ratio

8.1 kg/Hp, 123.9 Hp/tonne

Weight-to-torque ratio

6.9 kg/Nm, 145.5 Nm/tonne

Engine specs

Power

132 Hp @ 6500 rpm.

Power per litre

77.1 Hp/l

Torque

155 Nm @ 4600 rpm. 114 lb.-ft. @ 4600 rpm.

Engine layout

Front, Transverse

Engine Model/Code

307.46, 307.47

Engine displacement

1712 cm³ 104.47 cu. in.

Number of cylinders

Engine configuration

Boxer

Cylinder Bore

87 mm 3.43 in.

Piston Stroke

72 mm 2.83 in.

Compression ratio

10:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

OHC

Engine oil capacity

4 l 4.23 US qt | 3.52 UK qt

Engine oil specification

Coolant

7.3 l 7.71 US qt | 6.42 UK qt

Volume and weights

Kerb Weight

1065 kg 2348 lbs.

Max. weight

1490 kg 3285 lbs.

Max load

425 kg 937 lbs.

Trunk (boot) space - minimum

350 l 12.4 cu. ft.

Trunk (boot) space - maximum

1200 l 42.4 cu. ft.

Fuel tank capacity

50 l 13.21 US gal | 11 UK gal

Max. roof load

80 kg 176 lbs.

Dimensions

Length

4200 mm 165.35 in.

Width

1614 mm 63.54 in.

Height

1350 mm 53.15 in.

Wheelbase

2475 mm 97.44 in.

Front track

1366 mm 53.78 in.

Rear (Back) track

1365 mm 53.74 in.

Front overhang

830 mm 32.68 in.

Rear overhang

895 mm 35.24 in.

Drivetrain, brakes and suspension specs

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Coil spring

Rear suspension

Coil spring

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tires size

185/60 R14

Specs of Alfa Romeo 33 Sport Wagon (907B) 1.7 16V (132 Hp) 4x4 /1990, 1991, 1992/
