Peugeot 3008 I (Phase I, 2009) 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic | Technical specs, data, fuel consumption, Dimensions

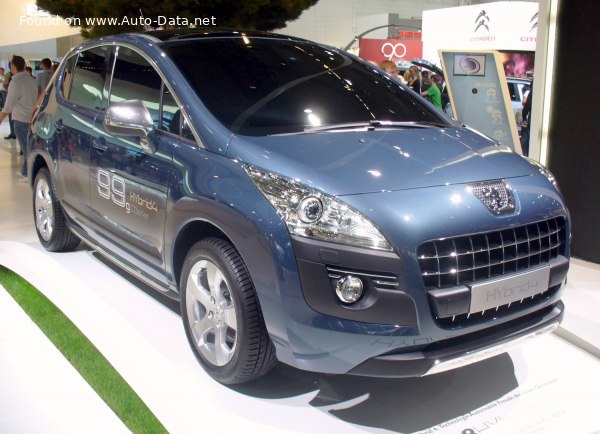

2009 Peugeot 3008 I (Phase I, 2009) - Photo 1

Key specs

Peugeot 3008 I (Phase I, 2009) 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic /SUV 2011 - 2013/

What is the body type of Peugeot 3008 I (Phase I, 2009)?

SUV, 5 Doors, 5 Seats

What is the fuel consumption and economy of Peugeot 3008 I (Phase I, 2009) 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic?

3.8 l/100 km
61.9 US mpg
74.3 UK mpg
26.3 km/l

How environmentally friendly is Peugeot 3008 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic?

99 g/km CO₂
Euro 5

What is the all-electric range of 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic?

2 km
1 mi

How fast is 2011 3008 I (Phase I, 2009) 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic?

191 km/h | 119 mph
0-100 km/h: 8.5 sec
0-60 mph: 8.1 sec

What is the power output of Peugeot 3008 SUV 2011 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic?

200 Hp, 300 Nm
221 lb.-ft.

What is the engine displacement of Peugeot 3008 SUV 2011 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic?

2.0 l
1997 cm³
121.86 cu. in.

What is the number of cylinders in 2011 Peugeot 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic?

4, Inline

What is the drivetrain of Peugeot 3008 I (Phase I, 2009) SUV 2011 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic?

All wheel drive (4x4). FHEV (Full Hybrid Electric Vehicle). The Internal combustion engine (ICE) drives the front wheels of the vehicle. One electric motor drives the rear wheels.

What is the length of 2011 Peugeot 3008 SUV?

4365 mm
171.85 in.

What is the width of 2011 Peugeot 3008 SUV?

1837 mm
72.32 in.

What is the kerb weight of 2011 Peugeot 3008 I (Phase I, 2009) 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic?

1660 kg
3660 lbs.

What is the maximum permissible mass of 2011 Peugeot 3008 I (Phase I, 2009) 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic?

2245 kg
4949 lbs.

What is the trunk (boot) capacity of 2011 Peugeot 3008 SUV?

377 - 1341 l
13.3 - 47.4 cu. ft.

What is the number of gears in What is the gearbox type of 2011 Peugeot 3008 I (Phase I, 2009) 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic?

6, automatic transmission

Peugeot
- Peugeot 3008
  - 3008 I (Phase I, 2009)
    - 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic
    - 2.0 HDi (163 Hp) FAP
    - 2.0 HDi FAP (150 Hp)
    - 1.6 VTI (120 Hp)
    - 1.6 THP (156 Hp) Automatic
    - 1.6 THP (156 Hp)
    - 1.6 THP (156 Hp)
    - 1.6 HDi (112 Hp) FAP
    - 1.6 HDi (112 Hp)

Compare

General information

Brand

Peugeot

Model

3008

Generation

3008 I (Phase I, 2009)

Modification (Engine)

2.0 HDi (200 Hp) HYbrid4 4x4 Automatic

Start of production

2011 year

End of production

2013 year

Powertrain Architecture

FHEV (Full Hybrid Electric Vehicle)

Body type

SUV

Seats

Doors

Looking for Peugeot 3008 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban (NEDC)

3.7 l/100 km 63.6 US mpg
76.3 UK mpg
27 km/l

Fuel consumption (economy) - extra urban (NEDC)

3.9 l/100 km 60.3 US mpg
72.4 UK mpg
25.6 km/l

Fuel consumption (economy) - combined (NEDC)

3.8 l/100 km 61.9 US mpg
74.3 UK mpg
26.3 km/l

CO₂ emissions (NEDC)

99 g/km

Fuel Type

Diesel

Acceleration 0 - 100 km/h

8.5 sec

Acceleration 0 - 62 mph

8.5 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

8.1 sec

Maximum speed

191 km/h 119 mph

Emission standard

Euro 5

Weight-to-power ratio

8.3 kg/Hp, 120.5 Hp/tonne

Weight-to-torque ratio

5.5 kg/Nm, 180.7 Nm/tonne

Electric cars and hybrids specs

Gross battery capacity

1.1 kWh

Battery voltage

200 V

Battery technology

Nickel-metal hydride (NiMH)

Battery location

Under the trunk

Electric range (NEDC)

2 km 1 mi

Max speed (electric)

60 km/h 37 mph

Electric motor 1

Electric motor power

37 Hp @ 2500 rpm.

Electric motor Torque

200 Nm @ 1250 rpm. 148 lb.-ft. @ 1250 rpm.

Electric motor location

Rear axle, Transverse

Electric motor type

Synchronous

System power

200 Hp

Internal combustion engine specs

Power

163 Hp @ 3750 rpm.

Power per litre

81.6 Hp/l

Torque

300 Nm @ 1580 rpm. 221 lb.-ft. @ 1580 rpm.

Engine layout

Front, Transverse

Engine Model/Code

RHC DW10CTED4

Engine displacement

1997 cm³ 121.86 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

85 mm 3.35 in.

Piston Stroke

88 mm 3.46 in.

Compression ratio

16:1

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

5 l 5.28 US qt | 4.4 UK qt

Engine oil specification

Engine systems

Start & Stop System
Particulate filter

Volume and weights

Kerb Weight

1660 kg 3660 lbs.

Max. weight

2245 kg 4949 lbs.

Max load

585 kg 1290 lbs.

Trunk (boot) space - minimum

377 l 13.3 cu. ft.

Trunk (boot) space - maximum

1341 l 47.4 cu. ft.

Fuel tank capacity

56.5 l 14.93 US gal | 12.43 UK gal

Permitted trailer load with brakes (12%)

770 kg 1698 lbs.

Permitted trailer load without brakes

500 kg 1102 lbs.

Permitted towbar download

70 kg 154 lbs.

Dimensions

Length

4365 mm 171.85 in.

Width

1837 mm 72.32 in.

Width including mirrors

2113 mm 83.19 in.

Height

1639 mm 64.53 in.

Wheelbase

2613 mm 102.87 in.

Front track

1532 mm 60.31 in.

Rear (Back) track

1527 mm 60.12 in.

Front overhang

916 mm 36.06 in.

Rear overhang

836 mm 32.91 in.

Minimum turning circle (turning diameter)

11 m 36.09 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle. One electric motor drives the rear wheels.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

6 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Semi-independent, coil spring

Front brakes

Ventilated discs, 302 mm

Rear brakes

Disc, 290 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

225/50 R17

Wheel rims size

7.5J x 17

Specs of Peugeot 3008 I (Phase I, 2009) 2.0 HDi (200 Hp) HYbrid4 4x4 Automatic /2011, 2012, 2013/
