Specs of Lexus NX I (AZ10, facelift 2017) 300h (197 Hp) Hybrid e-Four e-CVT /2017, 2018, 2019, 2020, 2021/

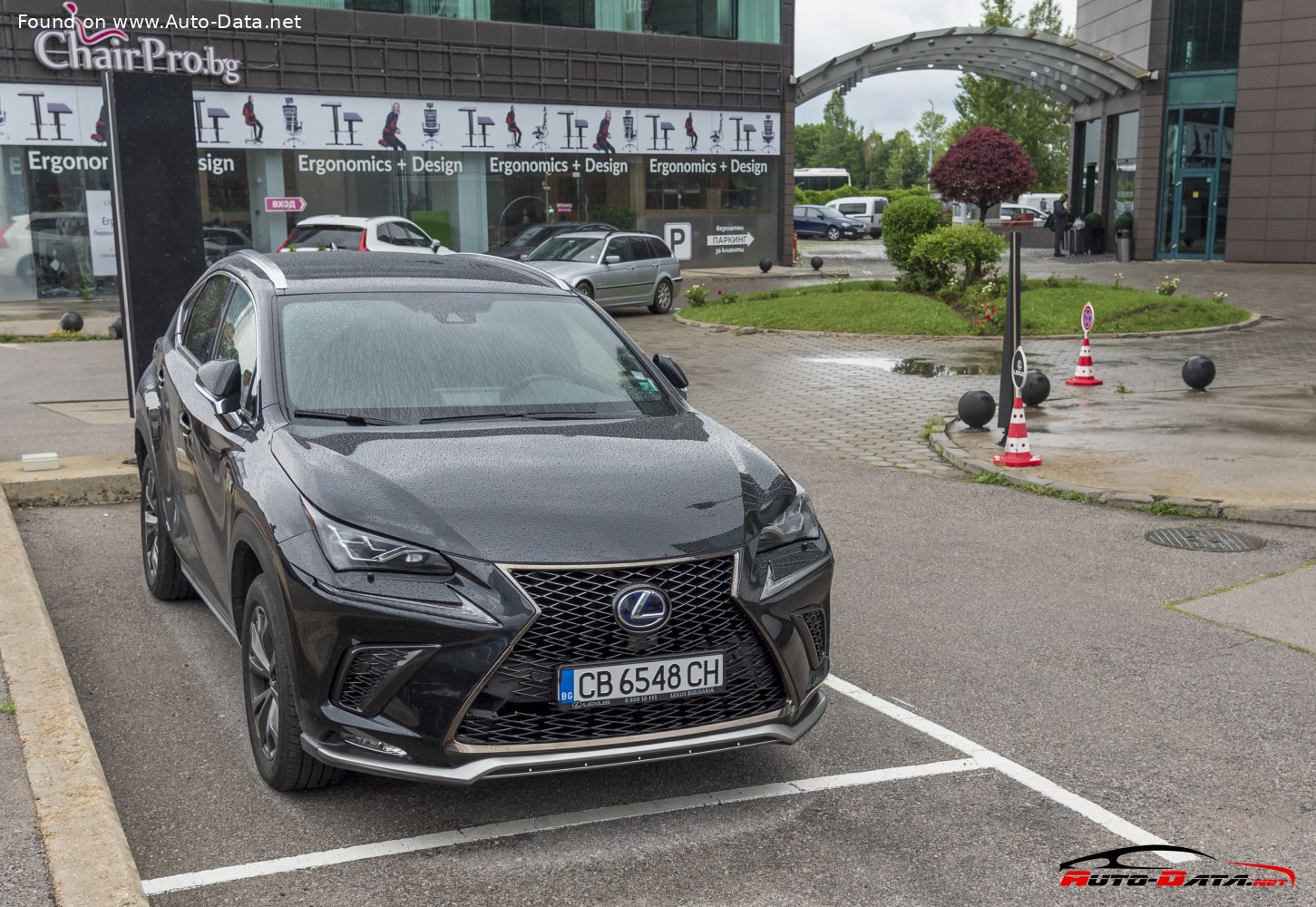

2018 Lexus NX I (AZ10, facelift 2017) - Photo 1
Lexus NX I (AZ10, facelift 2017) - Photo 2

Key specs

Lexus NX I (AZ10, facelift 2017) 300h (197 Hp) Hybrid e-Four e-CVT /SUV, Crossover 2017 - 2021/

What is the body type of Lexus NX I (AZ10, facelift 2017)?
SUV, Crossover, 5 Doors, 5 Seats
What is the fuel consumption and economy of Lexus NX I (AZ10, facelift 2017) 300h (197 Hp) Hybrid e-Four e-CVT?
5.7-5.9 l/100 km
41.3 - 39.9 US mpg
49.6 - 47.9 UK mpg
17.5 - 16.9 km/l
How environmentally friendly is Lexus NX 300h (197 Hp) Hybrid e-Four e-CVT?
130-135 g/km CO2
Euro 6d
How fast is 2017 NX I (AZ10, facelift 2017) 300h (197 Hp) Hybrid e-Four e-CVT?
180 km/h | 112 mph
0-100 km/h: 9.4 sec
0-60 mph: 8.9 sec
What is the power output of Lexus NX SUV, Crossover 2017 300h (197 Hp) Hybrid e-Four e-CVT?
197 Hp, 145 Nm
107 lb.-ft.
What is the engine displacement of Lexus NX SUV, Crossover 2017 300h (197 Hp) Hybrid e-Four e-CVT?
2.5 l
2494 cm3
152.19 cu. in.
What is the number of cylinders in 2017 Lexus 300h (197 Hp) Hybrid e-Four e-CVT?
4, Inline
What is the drivetrain of Lexus NX I (AZ10, facelift 2017) SUV, Crossover 2017 300h (197 Hp) Hybrid e-Four e-CVT?
All wheel drive (4x4). FHEV (Full Hybrid Electric Vehicle). An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.
What is the length of 2017 Lexus NX SUV, Crossover?
4640 mm
182.68 in.
What is the width of 2017 Lexus NX SUV, Crossover?
1845 mm
72.64 in.
What is the kerb weight of 2017 Lexus NX I (AZ10, facelift 2017) 300h (197 Hp) Hybrid e-Four e-CVT?
1860-1980 kg
4101 - 4365 lbs.
What is the maximum permissible mass of 2017 Lexus NX I (AZ10, facelift 2017) 300h (197 Hp) Hybrid e-Four e-CVT?
2395 kg
5280 lbs.
What is the trunk (boot) capacity of 2017 Lexus NX SUV, Crossover?
555 - 1600 l
19.6 - 56.5 cu. ft.
What are the number of gears and the gearbox type of 2017 Lexus NX I (AZ10, facelift 2017) 300h (197 Hp) Hybrid e-Four e-CVT?
automatic transmission e-CVT
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Lexus
Model
NX
Generation
NX I (AZ10, facelift 2017)
Modification (Engine)
300h (197 Hp) Hybrid e-Four e-CVT
Start of production
2017
End of production
September, 2021
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Body type
SUV, Crossover
Seats
5
Doors
5
Looking for Lexus NX on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
5.8-6.1 l/100 km 40.6 - 38.6 US mpg
48.7 - 46.3 UK mpg
17.2 - 16.4 km/l
Fuel consumption (economy) - extra urban
5.5-5.7 l/100 km 42.8 - 41.3 US mpg
51.4 - 49.6 UK mpg
18.2 - 17.5 km/l
Fuel consumption (economy) - combined
5.7-5.9 l/100 km 41.3 - 39.9 US mpg
49.6 - 47.9 UK mpg
17.5 - 16.9 km/l
CO2 emissions
130-135 g/km
Fuel Type
Petrol (Gasoline)
Acceleration 0 - 100 km/h
9.4 sec
Acceleration 0 - 62 mph
9.4 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
8.9 sec
Maximum speed
180 km/h 112 mph
Emission standard
Euro 6d
Weight-to-power ratio
9.4 kg/Hp, 105.9 Hp/tonne
Weight-to-torque ratio
12.8 kg/Nm, 78 Nm/tonne

Electric and hybrid car specs

Battery voltage
244.8 V
Battery technology
Nickel-metal hydride (NiMH)
Battery location
Under the rear seats

Electric motor 1

Electric motor power
143 Hp
Electric motor Torque
270 Nm 199 lb.-ft.
Electric motor location
Integrated into the transmission
Electric motor type
Synchronous

Electric motor 2

Electric motor power
68 Hp
Electric motor Torque
139 Nm 103 lb.-ft.
Electric motor location
Rear axle, Transverse
Electric motor type
Synchronous
System power
197 Hp
System torque
145 Nm 107 lb.-ft.

Internal combustion engine specs

Power
155 Hp @ 5700 rpm.
Power per litre
62.1 Hp/l
Torque
210 Nm @ 4200-4000 rpm. 155 lb.-ft. @ 4200-4000 rpm.
Engine layout
Front, Transverse
Engine Model/Code
2AR-FXE
Engine displacement
2494 cm3 152.19 cu. in.
Number of cylinders
4
Engine configuration
Inline
Cylinder Bore
90 mm 3.54 in.
Piston Stroke
98 mm 3.86 in.
Compression ratio
12.5:1
Number of valves per cylinder
4
Fuel injection system
Multi-port manifold injection
Engine aspiration
Naturally aspirated engine
Valvetrain
VVT-i
Engine oil capacity
4.4 l 4.65 US qt | 3.87 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
7.3 l 7.71 US qt | 6.42 UK qt

Volume and weights

Kerb Weight
1860-1980 kg 4101 - 4365 lbs.
Max. weight
2395 kg 5280 lbs.
Max load
415-535 kg 915 - 1179 lbs.
Trunk (boot) space - minimum
555 l 19.6 cu. ft.
Trunk (boot) space - maximum
1600 l 56.5 cu. ft.
Fuel tank capacity
56 l 14.79 US gal | 12.32 UK gal
Permitted trailer load with brakes (12%)
1500 kg 3307 lbs.
Permitted trailer load without brakes
750 kg 1653 lbs.

Dimensions

Length
4640 mm 182.68 in.
Width
1845 mm 72.64 in.
Height
1645 mm 64.76 in.
Wheelbase
2660 mm 104.72 in.
Front track
1580 mm 62.2 in.
Rear (Back) track
1580 mm 62.2 in.
Front overhang
1000 mm 39.37 in.
Rear overhang
980 mm 38.58 in.
Ride height (ground clearance)
175 mm 6.89 in.
Drag coefficient (Cd)
0.34
Minimum turning circle (turning diameter)
12.1 m 39.7 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.
Drive wheel
All wheel drive (4x4)
Number of gears and type of gearbox
automatic transmission e-CVT
Front suspension
Independent, McPherson type with coil spring and anti-roll bar
Rear suspension
Double wishbone
Front brakes
Ventilated discs
Rear brakes
Disc
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tire size
225/65 R17; 225/60 R18
Wheel rim size
7.0J x 17; 7.5J x 18
