Ford Transit Connect I (facelift 2009) Panel Van L2H2 28 kWh (71 Hp) Electric | Technical specs, data, battery, electric range, Dimensions

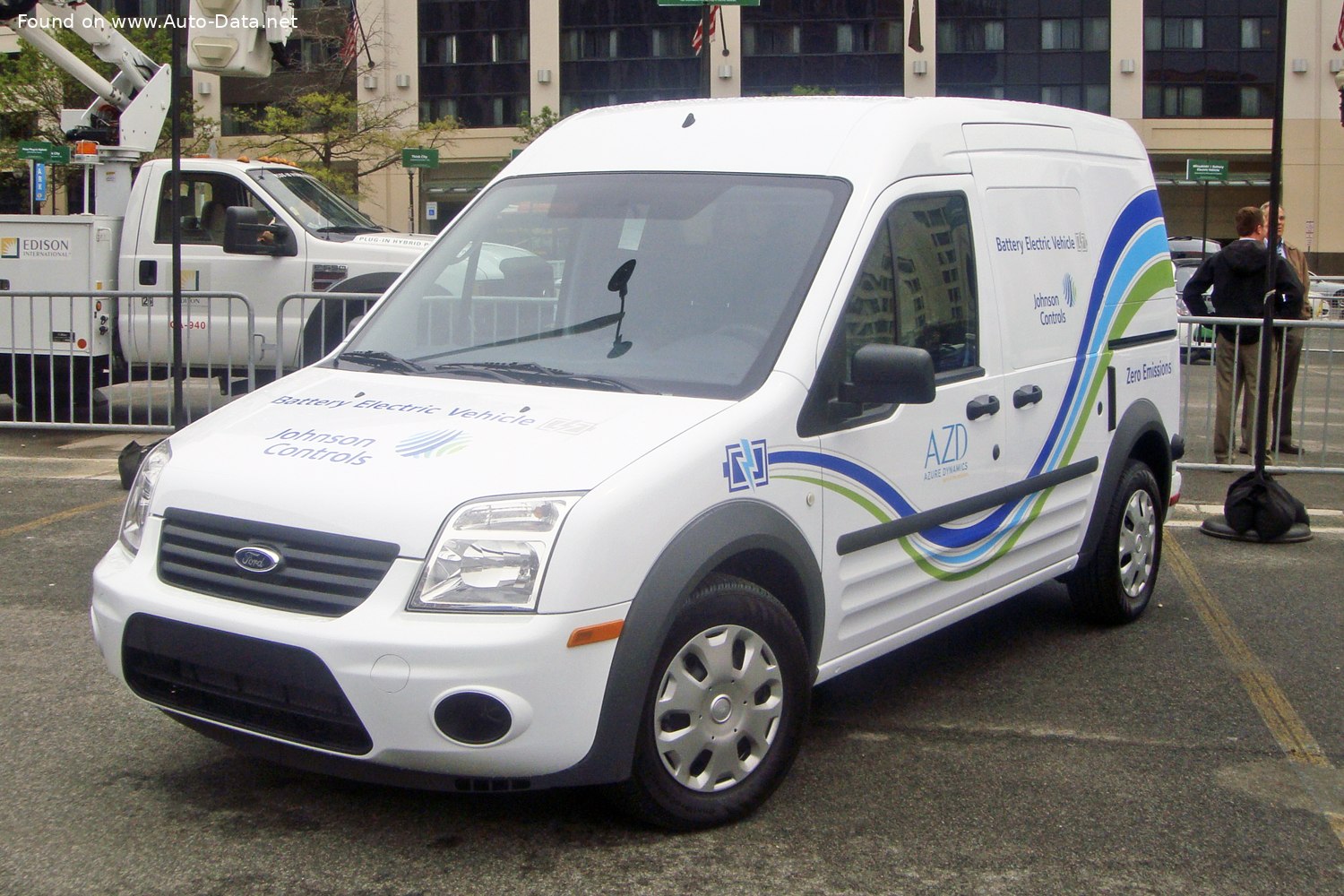

2010 Ford Transit Connect I (facelift 2009) Panel Van L2H2 - Photo 1

Key specs

Ford Transit Connect I (facelift 2009) Panel Van L2H2 28 kWh (71 Hp) Electric /Minivan 2010 - 2012/

What is the body type of Ford Transit Connect I (facelift 2009) Panel Van L2H2?

Minivan, 5 Doors, 2 Seats

What is the all-electric range of 28 kWh (71 Hp) Electric?

90 km
56 mi

What is the electricity consumption of Ford Transit Connect I (facelift 2009) Panel Van L2H2 28 kWh (71 Hp) Electric?

33.6 kWh/100 km
54.07 kWh/100 mi
62 MPGe
3 km/kWh
1.8 mi/kWh

How fast is 2010 Transit Connect I (facelift 2009) Panel Van L2H2 28 kWh (71 Hp) Electric?

121 km/h | 75 mph
0-60 mph: 12 sec

What is the power output of Ford Transit Connect Minivan 2010 28 kWh (71 Hp) Electric?

71 Hp, 235 Nm
173 lb.-ft.

What is the drivetrain of Ford Transit Connect I (facelift 2009) Panel Van L2H2 Minivan 2010 28 kWh (71 Hp) Electric?

Front wheel drive. BEV (Electric Vehicle). One electric motor drives the front wheels.

What is the length of 2010 Ford Transit Connect Minivan?

4587 mm
180.59 in.

What is the width of 2010 Ford Transit Connect Minivan?

1795 mm
70.67 in.

What is the kerb weight of 2010 Ford Transit Connect I (facelift 2009) Panel Van L2H2 28 kWh (71 Hp) Electric?

1796 kg
3960 lbs.

What is the maximum permissible mass of 2010 Ford Transit Connect I (facelift 2009) Panel Van L2H2 28 kWh (71 Hp) Electric?

2270 kg
5004 lbs.

What is the trunk (boot) capacity of 2010 Ford Transit Connect Minivan?

3670 l
129.6 cu. ft.

What are the number of gears and the gearbox type of 2010 Ford Transit Connect I (facelift 2009) Panel Van L2H2 28 kWh (71 Hp) Electric?

1, automatic transmission

Ford
- Ford Transit Connect
  - Transit Connect I (facelift 2009) Panel Van L2H2
    - 28 kWh (71 Hp) Electric
    - 2.0 (136 Hp) Automatic
    - 1.8 TDCi (110 Hp) DPF
    - 1.8 TDCi (110 Hp)
    - 1.8 TDCi (90 Hp) DPF
    - 1.8 TDCi (90 Hp)
    - 1.8 TDCi (75 Hp) DPF

Compare

General information

Brand

Ford

Model

Transit Connect

Generation

Transit Connect I (facelift 2009) Panel Van L2H2

Modification (Engine)

28 kWh (71 Hp) Electric

Start of production

December, 2010

End of production

March, 2012

Powertrain Architecture

BEV (Electric Vehicle)

Body type

Minivan

Seats

Doors

Looking for Ford Transit Connect on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Acceleration 0 - 60 mph

12 sec

Maximum speed

121 km/h 75 mph

Weight-to-power ratio

25.3 kg/Hp, 39.5 Hp/tonne

Weight-to-torque ratio

7.6 kg/Nm, 130.8 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

28 kWh

Battery voltage

390 V

Battery technology

Lithium-ion (Li-Ion)

Battery location

Below the floor

Electric range (EPA)

90 km 56 mi

Average Energy consumption (EPA)

33.6 kWh/100 km 54.07 kWh/100 mi
62 MPGe
3 km/kWh
1.8 mi/kWh

Charging ports

Charging times

Electric motor 1

Electric motor power

71 Hp

Electric motor Torque

235 Nm 173 lb.-ft.

Electric motor location

Front axle, Transverse

Electric motor type

Asynchronous

System power

71 Hp

System torque

235 Nm 173 lb.-ft.

Volume and weights

Kerb Weight

1796 kg 3960 lbs.

Max. weight

2270 kg 5004 lbs.

Max load

474 kg 1045 lbs.

Trunk (boot) space - minimum

3670 l 129.6 cu. ft.

Dimensions

Length

4587 mm 180.59 in.

Width

1795 mm 70.67 in.

Width including mirrors

2113 mm 83.19 in.

Height

2014 mm 79.29 in.

Wheelbase

2912 mm 114.65 in.

Front track

1505 mm 59.25 in.

Rear (Back) track

1552 mm 61.1 in.

Minimum turning circle (turning diameter)

11.9 m 39.04 ft.

Climb angle

15.1°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the front wheels.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Anti-roll bar, Leaf spring

Front brakes

Disc

Rear brakes

Drum

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

205/65 R15

Wheel rim size
