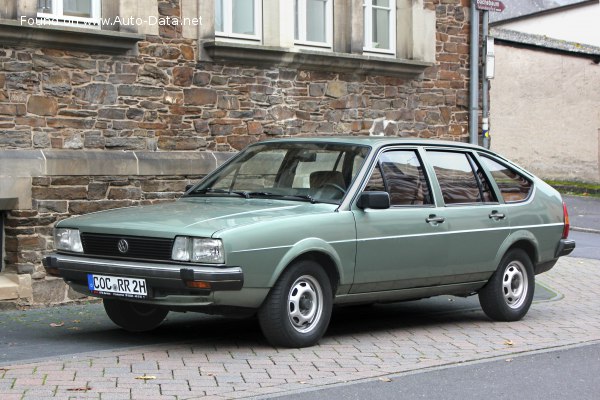

Volkswagen Passat (B2) 2.0 (115 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

Volkswagen Passat (B2) 2.0 (115 Hp) /Hatchback 1983 - 1985/

What is the body type of Volkswagen Passat (B2)?

Hatchback, 5 Doors, 5 Seats

How fast is 1983 Passat (B2) 2.0 (115 Hp)?

182 km/h | 113 mph
0-100 km/h: 11.1 sec
0-60 mph: 10.5 sec

What is the power output of Volkswagen Passat Hatchback 1983 2.0 (115 Hp)?

115 Hp, 164 Nm
121 lb.-ft.

What is the engine displacement of Volkswagen Passat Hatchback 1983 2.0 (115 Hp)?

2.0 l
1994 cm³
121.68 cu. in.

What is the number of cylinders in 1983 Volkswagen 2.0 (115 Hp)?

5, Inline

What is the drivetrain of Volkswagen Passat (B2) Hatchback 1983 2.0 (115 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1983 Volkswagen Passat Hatchback?

4435 mm
174.61 in.

What is the width of 1983 Volkswagen Passat Hatchback?

1685 mm
66.34 in.

What is the kerb weight of 1983 Volkswagen Passat (B2) 2.0 (115 Hp)?

910 kg
2006 lbs.

What is the maximum permissible mass of 1983 Volkswagen Passat (B2) 2.0 (115 Hp)?

1350 kg
2976 lbs.

What is the trunk (boot) capacity of 1983 Volkswagen Passat Hatchback?

480 - 1542 l
17 - 54.5 cu. ft.

What are the number of gears and the gearbox type of 1983 Volkswagen Passat (B2) 2.0 (115 Hp)?

5, manual transmission

Volkswagen
- Volkswagen Passat
  - Passat (B2)

Compare

General information

Brand

Volkswagen

Model

Passat

Generation

Passat (B2)

Modification (Engine)

2.0 (115 Hp)

Start of production

1983

End of production

1985

Powertrain Architecture

Internal Combustion engine

Body type

Hatchback

Seats

Doors

Looking for Volkswagen Passat on the used-car market?

Check its history →

Performance specs

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

11.1 sec

Acceleration 0 - 62 mph

11.1 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

10.5 sec

Maximum speed

182 km/h 113 mph

Weight-to-power ratio

7.9 kg/Hp, 126.4 Hp/tonne

Weight-to-torque ratio

5.5 kg/Nm, 180.2 Nm/tonne

Engine specs

Power

115 Hp @ 5500 rpm.

Power per litre

57.7 Hp/l

Torque

164 Nm @ 3200 rpm. 121 lb.-ft. @ 3200 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

Engine displacement

1994 cm³ 121.68 cu. in.

Number of cylinders

Engine configuration

Inline

Engine aspiration

Naturally aspirated engine

Valvetrain

OHC

Engine oil capacity

3.5 l 3.7 US qt | 3.08 UK qt

Engine oil specification

Coolant

8 l 8.45 US qt | 7.04 UK qt

Volume and weights

Kerb Weight

910 kg 2006 lbs.

Max. weight

1350 kg 2976 lbs.

Max load

440 kg 970 lbs.

Trunk (boot) space - minimum

480 l 17 cu. ft.

Trunk (boot) space - maximum

1542 l 54.5 cu. ft.

Fuel tank capacity

70 l 18.49 US gal | 15.4 UK gal

Dimensions

Length

4435 mm 174.61 in.

Width

1685 mm 66.34 in.

Height

1385 mm 54.53 in.

Wheelbase

2550 mm 100.39 in.

Front track

1400 mm 55.12 in.

Rear (Back) track

1408 mm 55.43 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Independent, McPherson type

Rear suspension

Coil spring

Front brakes

Ventilated discs

Rear brakes

Drum

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

175/70 R13

Wheel rim size

Specs of Volkswagen Passat (B2) 2.0 (115 Hp) /1983, 1984, 1985/
