Toyota Crown XVI Signia (S238) 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT | Technical specs, data, fuel consumption, Dimensions

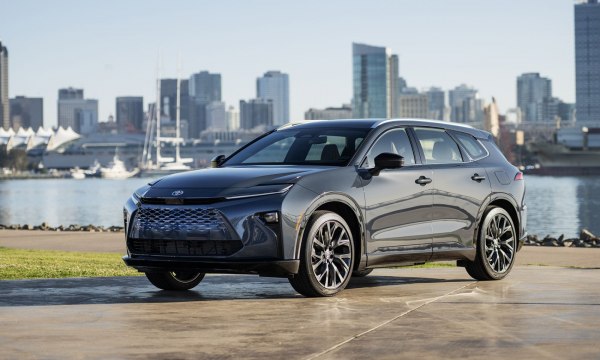

2025 Toyota Crown XVI Signia (S238) - Photo 1

Key specs

Toyota Crown XVI Signia (S238) 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT /SUV, Crossover 2024 - /

What is the body type of Toyota Crown XVI Signia (S238)?

SUV, Crossover, 5 Doors, 5 Seats

What is the fuel consumption and economy of Toyota Crown XVI Signia (S238) 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT?

6.2 l/100 km
37.9 US mpg
45.6 UK mpg
16.1 km/l

How environmentally friendly is Toyota Crown 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT?

SULEV

How fast is 2024 Crown XVI Signia (S238) 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT?

0-60 mph: 7.1 sec

What is the power output of Toyota Crown SUV, Crossover 2024 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT?

240 Hp, 241 Nm
178 lb.-ft.

What is the engine displacement of Toyota Crown SUV, Crossover 2024 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT?

2.5 l
2487 cm³
151.77 cu. in.

What is the number of cylinders in 2024 Toyota 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT?

4, Inline

What is the drivetrain of Toyota Crown XVI Signia (S238) SUV, Crossover 2024 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT?

All wheel drive (4x4). FHEV (Full Hybrid Electric Vehicle). An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.

What is the length of 2024 Toyota Crown SUV, Crossover?

4930 mm
194.09 in.

What is the width of 2024 Toyota Crown SUV, Crossover?

1880 mm
74.02 in.

What is the kerb weight of 2024 Toyota Crown XVI Signia (S238) 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT?

1910 kg
4211 lbs.

What is the maximum permissible mass of 2024 Toyota Crown XVI Signia (S238) 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT?

2350 kg
5181 lbs.

What is the trunk (boot) capacity of 2024 Toyota Crown SUV, Crossover?

702 - 1948 l
24.8 - 68.8 cu. ft.

What is the number of gears in What is the gearbox type of 2024 Toyota Crown XVI Signia (S238) 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT?

automatic transmission e-CVT

Toyota
- Toyota Crown
  - Crown XVI Signia (S238)
    - 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT

Compare

General information

Brand

Toyota

Model

Crown

Generation

Crown XVI Signia (S238)

Modification (Engine)

2.5 D-4S (240 Hp) Hybrid E-Four e-CVT

Start of production

June, 2024 year

Powertrain Architecture

FHEV (Full Hybrid Electric Vehicle)

Body type

SUV, Crossover

Seats

Doors

Looking for Toyota Crown on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban (EPA)

6 l/100 km 39.2 US mpg
47.1 UK mpg
16.7 km/l

Fuel consumption (economy) - extra urban (EPA)

6.4 l/100 km 36.8 US mpg
44.1 UK mpg
15.6 km/l

Fuel consumption (economy) - combined (EPA)

6.2 l/100 km 37.9 US mpg
45.6 UK mpg
16.1 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 60 mph

7.1 sec

Emission standard

SULEV

Weight-to-power ratio

8 kg/Hp, 125.7 Hp/tonne

Weight-to-torque ratio

7.9 kg/Nm, 126.2 Nm/tonne

Electric cars and hybrids specs

Gross battery capacity

1.15 kWh

Battery voltage

230.4 V

Battery technology

Nickel-metal hydride (NiMH)

Battery location

Below the floor, under the rear seats

Electric motor 1

Electric motor power

182 Hp

Electric motor Torque

270 Nm 199 lb.-ft.

Electric motor location

Integrated into the transmission

Electric motor type

Synchronous

Electric motor 2

Electric motor power

54 Hp

Electric motor Torque

121 Nm 89 lb.-ft.

Electric motor location

Rear axle, Transverse

Electric motor type

Synchronous

System power

240 Hp

Internal combustion engine specs

Power

188 Hp @ 6000 rpm.

Power per litre

75.6 Hp/l

Torque

241 Nm @ 4300-4500 rpm. 178 lb.-ft. @ 4300-4500 rpm.

Engine layout

Front, Transverse

Engine Model/Code

Dynamic Force / A25A-FXS

Engine displacement

2487 cm³ 151.77 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

87.5 mm 3.44 in.

Piston Stroke

103.4 mm 4.07 in.

Compression ratio

14:1

Number of valves per cylinder

Fuel injection system

Direct injection and Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC, VVT-iE, VVT-i

Engine oil capacity

4.3 l 4.54 US qt | 3.78 UK qt

Engine oil specification

Engine systems

Start & Stop System

Volume and weights

Kerb Weight

1910 kg 4211 lbs.

Max. weight

2350 kg 5181 lbs.

Max load

440 kg 970 lbs.

Trunk (boot) space - minimum

702 l 24.8 cu. ft.

Trunk (boot) space - maximum

1948 l 68.8 cu. ft.

Fuel tank capacity

55 l 14.53 US gal | 12.1 UK gal

Permitted trailer load with brakes (12%)

1225 kg 2701 lbs.

Dimensions

Length

4930 mm 194.09 in.

Width

1880 mm 74.02 in.

Height

1626-1631 mm 64.02 - 64.21 in.

Wheelbase

2850 mm 112.2 in.

Front overhang

1000 mm 39.37 in.

Rear overhang

1080 mm 42.52 in.

Ride height (ground clearance)

170 mm 6.69 in.

Minimum turning circle (turning diameter)

12 m 39.37 ft.

Approach angle

15.2°

Departure angle

21.4°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

automatic transmission e-CVT

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Ventilated discs, 328 mm

Rear brakes

Ventilated discs, 318 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

225/55 R19; 225/45 R21

Wheel rims size

19; 21

Specs of Toyota Crown XVI Signia (S238) 2.5 D-4S (240 Hp) Hybrid E-Four e-CVT /2024, 2025, 2026/
