Toyota Corolla Touring Sports XII (E210, facelift 2022) 2.0 (196 Hp) Hybrid e-CVT | Technical specs, data, fuel consumption, Dimensions

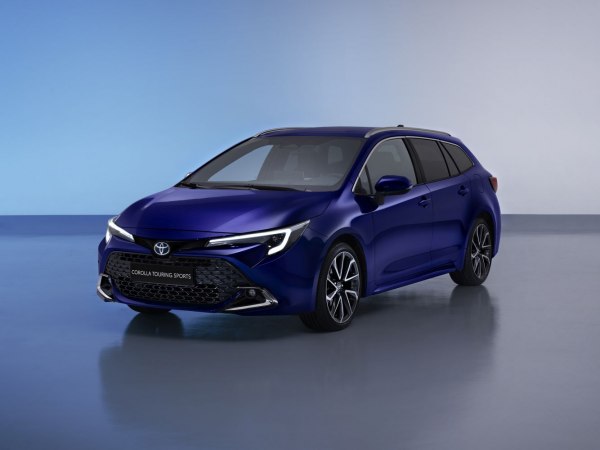

2023 Toyota Corolla Touring Sports XII (E210, facelift 2022) - Photo 1

Key specs

Toyota Corolla Touring Sports XII (E210, facelift 2022) 2.0 (196 Hp) Hybrid e-CVT /Station wagon (estate) 2022 - /

What is the body type of Toyota Corolla Touring Sports XII (E210, facelift 2022)?

Station wagon (estate), 5 Doors, 5 Seats

What is the fuel consumption and economy of Toyota Corolla Touring Sports XII (E210, facelift 2022) 2.0 (196 Hp) Hybrid e-CVT?

5.3-5.4 l/100 km
44.4 - 43.6 US mpg
53.3 - 52.3 UK mpg
18.9 - 18.5 km/l

How environmentally friendly is Toyota Corolla 2.0 (196 Hp) Hybrid e-CVT?

112-123 g/km CO₂
Euro 6d-ISC-FCM

How fast is 2022 Corolla Touring Sports XII (E210, facelift 2022) 2.0 (196 Hp) Hybrid e-CVT?

180 km/h | 112 mph

What is the power output of Toyota Corolla Station wagon (estate) 2022 2.0 (196 Hp) Hybrid e-CVT?

196 Hp, 190 Nm
140 lb.-ft.

What is the engine displacement of Toyota Corolla Station wagon (estate) 2022 2.0 (196 Hp) Hybrid e-CVT?

2.0 l
1987 cm³
121.25 cu. in.

What is the number of cylinders in 2022 Toyota 2.0 (196 Hp) Hybrid e-CVT?

4, Inline

What is the drivetrain of Toyota Corolla Touring Sports XII (E210, facelift 2022) Station wagon (estate) 2022 2.0 (196 Hp) Hybrid e-CVT?

Front wheel drive. FHEV (Full Hybrid Electric Vehicle). The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.

What is the length of 2022 Toyota Corolla Station wagon (estate)?

4650 mm
183.07 in.

What is the width of 2022 Toyota Corolla Station wagon (estate)?

1790 mm
70.47 in.

What is the trunk (boot) capacity of 2022 Toyota Corolla Station wagon (estate)?

581 - 1591 l
20.5 - 56.2 cu. ft.

What is the number of gears in 2022 Toyota Corolla Touring Sports XII (E210, facelift 2022) 2.0 (196 Hp) Hybrid e-CVT?

automatic transmission e-CVT

Toyota
- Toyota Corolla
  - Corolla Touring Sports XII (E210, facelift 2022)
    - 2.0 (196 Hp) Hybrid e-CVT
    - 1.8 (140 Hp) Hybrid e-CVT

Compare

General information

Brand

Toyota

Model

Corolla

Generation

Corolla Touring Sports XII (E210, facelift 2022)

Modification (Engine)

2.0 (196 Hp) Hybrid e-CVT

Start of production

June, 2022 year

Powertrain Architecture

FHEV (Full Hybrid Electric Vehicle)

Body type

Station wagon (estate)

Seats

Doors

Looking for Toyota Corolla on the used-car market?

Check its history →

Performance specs

Fuel consumption at Low speed (WLTP)

4.8-5.1 l/100 km 49 - 46.1 US mpg
58.9 - 55.4 UK mpg
20.8 - 19.6 km/l

Fuel consumption at Medium speed (WLTP)

4.5-4.7 l/100 km 52.3 - 50 US mpg
62.8 - 60.1 UK mpg
22.2 - 21.3 km/l

Fuel consumption at high speed (WLTP)

4.4-4.9 l/100 km 53.5 - 48 US mpg
64.2 - 57.6 UK mpg
22.7 - 20.4 km/l

Fuel consumption at very high speed (WLTP)

6.4-6.6 l/100 km 36.8 - 35.6 US mpg
44.1 - 42.8 UK mpg
15.6 - 15.2 km/l

Combined fuel consumption (WLTP)

5.3-5.4 l/100 km 44.4 - 43.6 US mpg
53.3 - 52.3 UK mpg
18.9 - 18.5 km/l

CO₂ emissions (WLTP)

112-123 g/km

Fuel Type

Petrol (Gasoline)

Maximum speed

180 km/h 112 mph

Emission standard

Euro 6d-ISC-FCM

Electric cars and hybrids specs

Battery technology

Nickel-metal hydride (NiMH)

Battery location

Under the rear seats

Electric motor 1

Electric motor power

113 Hp

Electric motor location

Integrated into the transmission

System power

196 Hp

Internal combustion engine specs

Power

152 Hp @ 6000 rpm.

Power per litre

76.5 Hp/l

Torque

190 Nm @ 4400-5200 rpm. 140 lb.-ft. @ 4400-5200 rpm.

Engine layout

Front, Transverse

Engine Model/Code

M20A-FXS

Engine displacement

1987 cm³ 121.25 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

80.5 mm 3.17 in.

Piston Stroke

97.6 mm 3.84 in.

Compression ratio

14:1

Number of valves per cylinder

Fuel injection system

Direct injection and Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC, Dual VVT-i

Engine oil capacity

4.3 l 4.54 US qt | 3.78 UK qt

Engine oil specification

Coolant

5.9 l 6.23 US qt | 5.19 UK qt

Engine systems

Start & Stop System
Particulate filter

Volume and weights

Trunk (boot) space - minimum

581 l 20.5 cu. ft.

Trunk (boot) space - maximum

1591 l 56.2 cu. ft.

Fuel tank capacity

43 l 11.36 US gal | 9.46 UK gal

Permitted trailer load with brakes (12%)

750 kg 1653 lbs.

Permitted trailer load without brakes

450 kg 992 lbs.

Permitted towbar download

75 kg 165 lbs.

Dimensions

Length

4650 mm 183.07 in.

Width

1790 mm 70.47 in.

Height

1435 mm 56.5 in.

Wheelbase

2700 mm 106.3 in.

Ride height (ground clearance)

135 mm 5.31 in.

Minimum turning circle (turning diameter)

10.4 m 34.12 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

automatic transmission e-CVT

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Double wishbone, Anti-roll bar, Coil spring

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

225/45 R17; 225/40 R18

Wheel rims size

7.5J x 17; 8J x 18

Specs of Toyota Corolla Touring Sports XII (E210, facelift 2022) 2.0 (196 Hp) Hybrid e-CVT /2022, 2023, 2024, 2025, 2026/
