Toyota Corolla I 2-door sedan (E10) 1100 (60 Hp) | Technical specs, data, fuel consumption, Dimensions

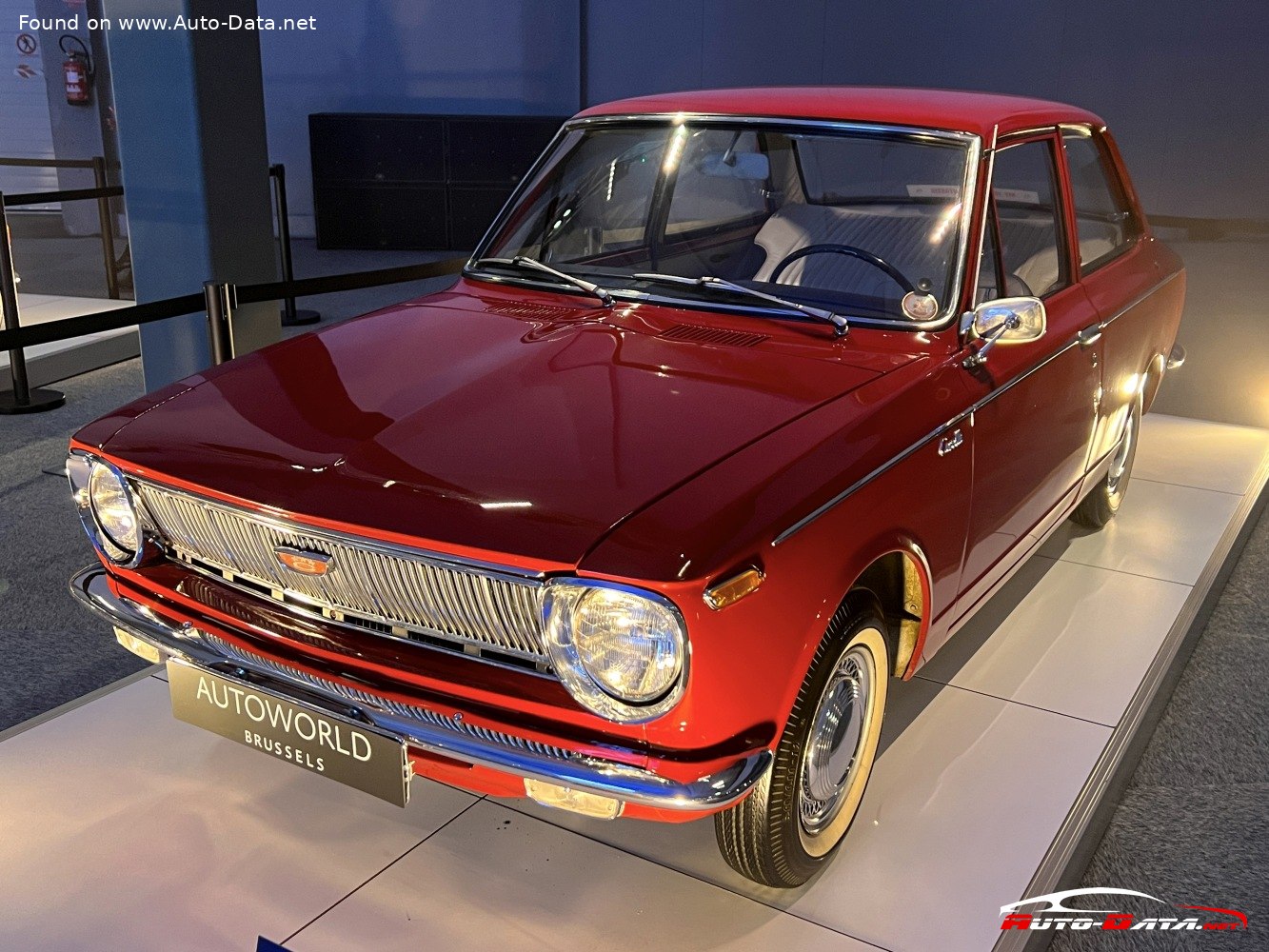

1966 Toyota Corolla I 2-door sedan (E10) - Photo 1

Key specs

Toyota Corolla I 2-door sedan (E10) 1100 (60 Hp) /Sedan 1966 - 1970/

What is the body type of Toyota Corolla I 2-door sedan (E10)?

Sedan, 2 Doors, 5 Seats

What is the fuel consumption and economy of Toyota Corolla I 2-door sedan (E10) 1100 (60 Hp)?

5 l/100 km
47 US mpg
56.5 UK mpg
20 km/l

How fast is 1966 Corolla I 2-door sedan (E10) 1100 (60 Hp)?

140 km/h | 87 mph

What is the power output of Toyota Corolla Sedan 1966 1100 (60 Hp)?

60 Hp, 83 Nm
61 lb.-ft.

What is the engine displacement of Toyota Corolla Sedan 1966 1100 (60 Hp)?

1.1 l
1077 cm³
65.72 cu. in.

What is the number of cylinders in 1966 Toyota 1100 (60 Hp)?

4, Inline

What is the drivetrain of Toyota Corolla I 2-door sedan (E10) Sedan 1966 1100 (60 Hp)?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 1966 Toyota Corolla Sedan?

3845 mm
151.38 in.

What is the width of 1966 Toyota Corolla Sedan?

1485 mm
58.46 in.

What is the kerb weight of 1966 Toyota Corolla I 2-door sedan (E10) 1100 (60 Hp)?

690 kg
1521 lbs.

What is the number of gears in What is the gearbox type of 1966 Toyota Corolla I 2-door sedan (E10) 1100 (60 Hp)?

4, manual transmission

Toyota
- Toyota Corolla
  - Corolla I 2-door sedan (E10)
    - 1200 (68 Hp)
    - 1100 (60 Hp)

Compare

General information

Brand

Toyota

Model

Corolla

Generation

Corolla I 2-door sedan (E10)

Modification (Engine)

1100 (60 Hp)

Start of production

1966 year

End of production

1970 year

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Toyota Corolla on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined

5 l/100 km 47 US mpg
56.5 UK mpg
20 km/l

Fuel Type

Petrol (Gasoline)

Maximum speed

140 km/h 87 mph

Weight-to-power ratio

11.5 kg/Hp, 87 Hp/tonne

Weight-to-torque ratio

8.3 kg/Nm, 120.3 Nm/tonne

Engine specs

Power

60 Hp @ 6000 rpm.

Power per litre

55.7 Hp/l

Torque

83 Nm @ 3800 rpm. 61 lb.-ft. @ 3800 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

Engine displacement

1077 cm³ 65.72 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

75 mm 2.95 in.

Piston Stroke

61 mm 2.4 in.

Compression ratio

9:1

Number of valves per cylinder

Fuel injection system

Carburettor

Engine aspiration

Naturally aspirated engine

Valvetrain

OHV

Engine oil capacity

2.7 l 2.85 US qt | 2.38 UK qt

Coolant

4.7 l 4.97 US qt | 4.14 UK qt

Volume and weights

Kerb Weight

690 kg 1521 lbs.

Fuel tank capacity

36 l 9.51 US gal | 7.92 UK gal

Dimensions

Length

3845 mm 151.38 in.

Width

1485 mm 58.46 in.

Height

1380 mm 54.33 in.

Wheelbase

2285 mm 89.96 in.

Front track

1230 mm 48.43 in.

Rear (Back) track

1220 mm 48.03 in.

Ride height (ground clearance)

170 mm 6.69 in.

Minimum turning circle (turning diameter)

9.1 m 29.86 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

4 gears, manual transmission

Front suspension

Independent coil spring, Anti-roll bar

Rear suspension

Rigid axle suspension, Leaf spring

Front brakes

Drum, 200.66 mm

Rear brakes
