RAM 1500 Crew Cab (DT, facelift 2024) RHO 3.0 SST HO (540 Hp) 4x4 TorqueFlite | Technical Specs, Fuel consumption, Dimensions

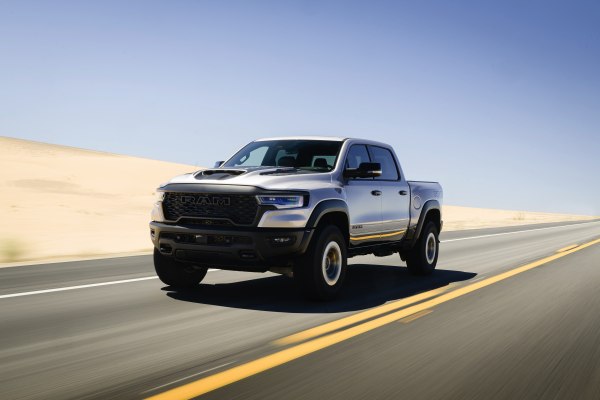

2025 RAM 1500 Crew Cab (DT, facelift 2024) - Photo 1

Key specs

RAM 1500 Crew Cab (DT, facelift 2024) RHO 3.0 SST HO (540 Hp) 4x4 TorqueFlite /Pick-up 2024 - /

What is the body type of RAM 1500 Crew Cab (DT, facelift 2024)?

Pick-up, 4 Doors, 6 Seats

What is the fuel consumption and economy of RAM 1500 Crew Cab (DT, facelift 2024) RHO 3.0 SST HO (540 Hp) 4x4 TorqueFlite?

13.8 l/100 km
17 US mpg
20.5 UK mpg
7.2 km/l

How fast is 2024 1500 Crew Cab (DT, facelift 2024) RHO 3.0 SST HO (540 Hp) 4x4 TorqueFlite?

190 km/h | 118 mph
0-60 mph: 4.6 sec

What is the power output of RAM 1500 Pick-up 2024 RHO 3.0 SST HO (540 Hp) 4x4 TorqueFlite?

540 Hp, 707 Nm
521 lb.-ft.

What is the engine displacement of RAM 1500 Pick-up 2024 RHO 3.0 SST HO (540 Hp) 4x4 TorqueFlite?

3.0 l
2993 cm³
182.64 cu. in.

What is the number of cylinders in 2024 RAM RHO 3.0 SST HO (540 Hp) 4x4 TorqueFlite?

6, Inline

What is the drivetrain of RAM 1500 Crew Cab (DT, facelift 2024) Pick-up 2024 RHO 3.0 SST HO (540 Hp) 4x4 TorqueFlite?

All wheel drive (4x4). ICE. The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.

What is the length of 2024 RAM 1500 Pick-up?

5936 mm
233.7 in.

What is the width of 2024 RAM 1500 Pick-up?

2235 mm
87.99 in.

What is the trunk (boot) capacity of 2024 RAM 1500 Pick-up?

1523 l
53.8 cu. ft.

What are the number of gears and the gearbox type of 2024 RAM 1500 Crew Cab (DT, facelift 2024) RHO 3.0 SST HO (540 Hp) 4x4 TorqueFlite?

8, automatic transmission TorqueFlite

RAM 1500 Crew Cab (DT, facelift 2024) RHO 3.0 SST HO (540 Hp) 4x4 TorqueFlite

RAM
- RAM 1500
  - 1500 Crew Cab (DT, facelift 2024)

Compare

General information

Brand

RAM

Model

1500

Generation

1500 Crew Cab (DT, facelift 2024)

Modification (Engine)

RHO 3.0 SST HO (540 Hp) 4x4 TorqueFlite

Start of production

2024

Powertrain Architecture

Internal Combustion engine

Body type

Pick-up

Seats

Doors

Looking for RAM 1500 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban (EPA)

15.7 l/100 km 15 US mpg
18 UK mpg
6.4 km/l

Fuel consumption (economy) - extra urban (EPA)

11.2 l/100 km 21 US mpg
25.2 UK mpg
8.9 km/l

Fuel consumption (economy) - combined (EPA)

13.8 l/100 km 17 US mpg
20.5 UK mpg
7.2 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 60 mph

4.6 sec

Maximum speed

190 km/h 118 mph

Engine specs

Power

540 Hp @ 5700 rpm.

Power per litre

180.4 Hp/l

Torque

707 Nm @ 3500 rpm. 521 lb.-ft. @ 3500 rpm.

Maximum engine speed

6100 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

Hurricane

Engine displacement

2993 cm³ 182.64 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

84 mm 3.31 in.

Piston Stroke

90 mm 3.54 in.

Compression ratio

9.5:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Twin twin-scroll turbochargers, Intercooler

Valvetrain

DOHC

Engine oil capacity

7.1 l 7.5 US qt | 6.25 UK qt

Engine oil specification

Coolant

15.3 l 16.17 US qt | 13.46 UK qt

Engine systems

Start & Stop System

Volume and weights

Trunk (boot) space - maximum

1523 l 53.8 cu. ft.

Fuel tank capacity

125 l 33.02 US gal | 27.5 UK gal

Permitted trailer load with brakes (12%)

3801 kg 8380 lbs.

Dimensions

Length

5936 mm 233.7 in.

Width

2235 mm 87.99 in.

Height

2079 mm 81.85 in.

Wheelbase

3686 mm 145.12 in.

Front track

1889 mm 74.37 in.

Rear (Back) track

1880 mm 74.02 in.

Ride height (ground clearance)

300 mm 11.81 in.

Minimum turning circle (turning diameter)

14.08 m 46.19 ft.

Approach angle

31°

Departure angle

25.2°

Ramp-over (breakover) angle

21.8°

Wading depth

813 mm 32.01 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

8 gears, automatic transmission TorqueFlite

Front suspension

Coil spring, Double wishbone, Anti-roll bar

Rear suspension

Rigid axle suspension, Coil spring

Front brakes

Ventilated discs, 378x30 mm

Rear brakes

Disc, 375x22 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

325/65 R18

Wheel rim size
