RAM 1500 Crew Cab (DT, facelift 2024) Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4 | Technical specs, data, fuel consumption, Dimensions

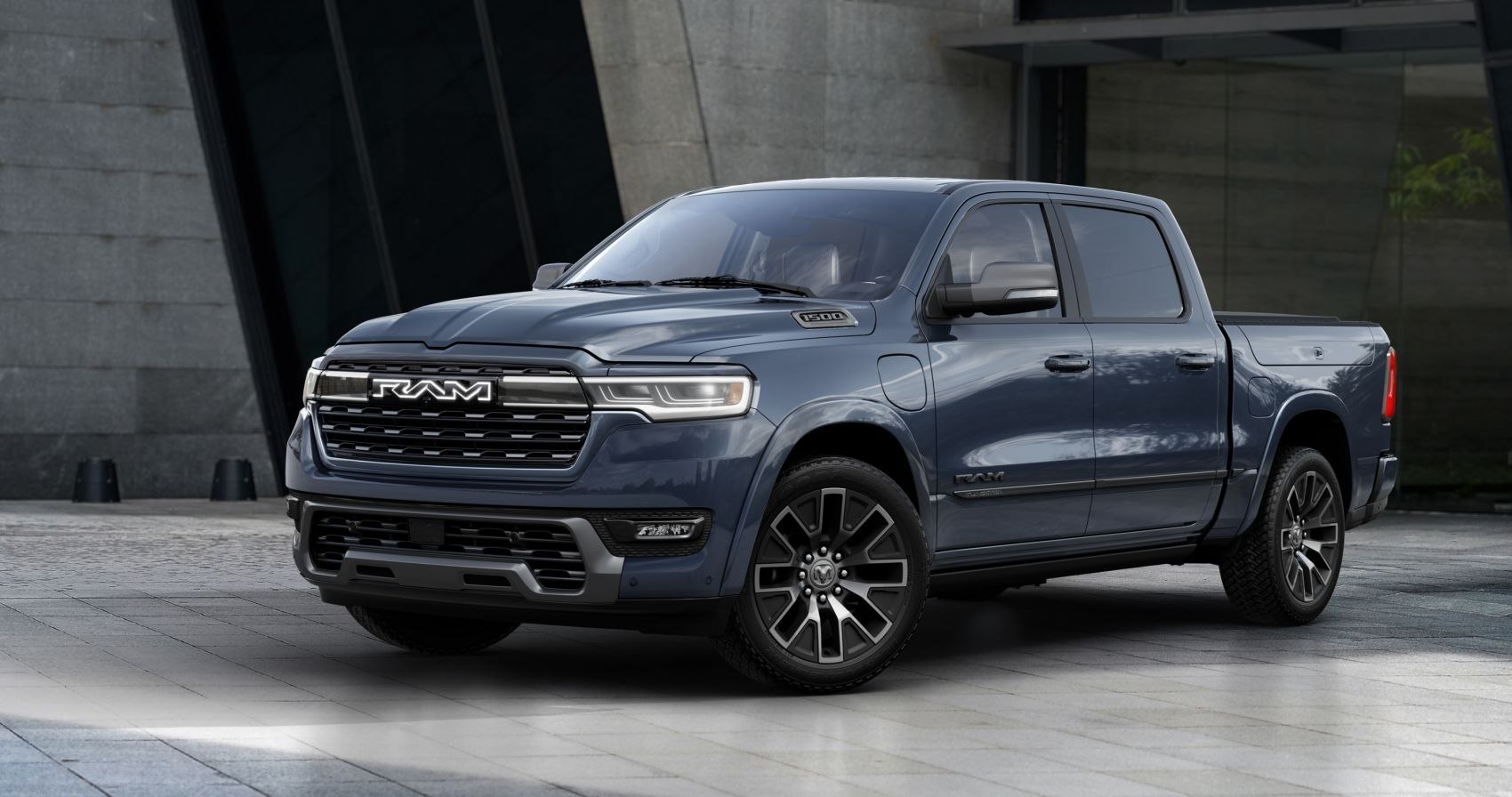

2025 RAM 1500 Crew Cab (DT, facelift 2024) - Photo 1

Key specs

RAM 1500 Crew Cab (DT, facelift 2024) Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4 /Pick-up 2025 - /

What is the body type of RAM 1500 Crew Cab (DT, facelift 2024)?

Pick-up, 4 Doors, 5-6 Seats

What is the fuel consumption and economy of RAM 1500 Crew Cab (DT, facelift 2024) Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4?

11.8 l/100 km
19.9 US mpg
23.9 UK mpg
8.5 km/l

What is the all-electric range of Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4?

233 km
145 mi

What is the electricity consumption of RAM 1500 Crew Cab (DT, facelift 2024) Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4?

35 kWh/100 km
56.33 kWh/100 mi
60 MPGe
2.9 km/kWh
1.8 mi/kWh

How fast is 2025 1500 Crew Cab (DT, facelift 2024) Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4?

183 km/h | 114 mph
0-60 mph: 4.5 sec

What is the power output of RAM 1500 Pick-up 2025 Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4?

647 Hp, 827 Nm
610 lb.-ft.

What is the engine displacement of RAM 1500 Pick-up 2025 Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4?

3.6 l
3604 cm³
219.93 cu. in.

What is the number of cylinders in 2025 RAM Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4?

6, V-engine

What is the drivetrain of RAM 1500 Crew Cab (DT, facelift 2024) Pick-up 2025 Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4?

All wheel drive (4x4). PHEV (Plug-in Hybrid Electric Vehicle). The Internal combustion engine (ICE) drives the generator only, with no mechanical connection to the drive. Two electric motors drive the front and rear wheels.

What is the length of 2025 RAM 1500 Pick-up?

5903 mm
232.4 in.

What is the width of 2025 RAM 1500 Pick-up?

2062 mm
81.18 in.

What is the kerb weight of 2025 RAM 1500 Crew Cab (DT, facelift 2024) Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4?

3405 kg
7507 lbs.

What is the maximum permissible mass of 2025 RAM 1500 Crew Cab (DT, facelift 2024) Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4?

4596 kg
10132 lbs.

What is the trunk (boot) capacity of 2025 RAM 1500 Pick-up?

1523 l
53.8 cu. ft.

What are the number of gears and the gearbox type of 2025 RAM 1500 Crew Cab (DT, facelift 2024) Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4?

1, automatic transmission

RAM
- RAM 1500
  - 1500 Crew Cab (DT, facelift 2024)

Compare

General information

Brand

RAM

Model

1500

Generation

1500 Crew Cab (DT, facelift 2024)

Modification (Engine)

Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4

Start of production

2025

Powertrain Architecture

PHEV (Plug-in Hybrid Electric Vehicle)

Body type

Pick-up

Seats

5-6

Doors

Looking for RAM 1500 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined (EPA)

11.8 l/100 km 19.9 US mpg
23.9 UK mpg
8.5 km/l

Fuel Type

Petrol / electricity

Acceleration 0 - 60 mph

4.5 sec

Maximum speed

183 km/h, Electronically limited 114 mph

Weight-to-power ratio

5.3 kg/Hp, 190 Hp/tonne

Weight-to-torque ratio

4.1 kg/Nm, 242.9 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

91.8 kWh

Net (usable) battery capacity

69.7 kWh

Battery voltage

400 V

Battery technology

Lithium nickel manganese cobalt oxides (Li-NMC)

Battery weight

550 kg 1213 lbs.

Battery location

Below the floor

Electric range (EPA)

233 km 145 mi

Average Energy consumption (EPA)

35 kWh/100 km 56.33 kWh/100 mi
60 MPGe
2.9 km/kWh
1.8 mi/kWh

Charging ports

Charging times

Electric motor 1

Electric motor power

340 Hp

Electric motor Torque

420 Nm 310 lb.-ft.

Electric motor location

Front axle, Transverse

Electric motor type

Synchronous

Electric motor 2

Electric motor power

337 Hp

Electric motor Torque

420 Nm 310 lb.-ft.

Electric motor location

Rear axle, Transverse

Electric motor type

Synchronous

System power

647 Hp

System torque

827 Nm 610 lb.-ft.

Internal combustion engine specs

Power

271 Hp @ 5800 rpm.

Power per litre

75.2 Hp/l

Torque

311 Nm @ 4100 rpm. 229 lb.-ft. @ 4100 rpm.

Maximum engine speed

5800 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

Pentastar

Engine displacement

3604 cm³ 219.93 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

96 mm 3.78 in.

Piston Stroke

83 mm 3.27 in.

Compression ratio

11.3:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC, VVT

Engine oil capacity

4.73 l 5 US qt | 4.16 UK qt

Coolant

13.25 l 14 US qt | 11.66 UK qt

Volume and weights

Kerb Weight

3405 kg 7507 lbs.

Max. weight

4596 kg 10132 lbs.

Max load

1191 kg 2626 lbs.

Trunk (boot) space - minimum

1523 l 53.8 cu. ft.

Fuel tank capacity

102 l 26.95 US gal | 22.44 UK gal

Permitted trailer load with brakes (12%)

6350 kg 13999 lbs.

Dimensions

Length

5903 mm 232.4 in.

Width

2062 mm 81.18 in.

Height

1963-1968 mm 77.28 - 77.48 in.

Wheelbase

3672 mm 144.57 in.

Front track

1740 mm 68.5 in.

Rear (Back) track

1727 mm 67.99 in.

Ride height (ground clearance)

216-228 mm 8.5 - 8.98 in.

Drag coefficient (C_d)

0.352

Minimum turning circle (turning diameter)

15.1 m 49.54 ft.

Approach angle

19.9°

Departure angle

19.8°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the generator only, with no mechanical connection to the drive. Two electric motors drive the front and rear wheels.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Double wishbone, Air suspension

Rear suspension

Independent multi-link suspension, Air suspension

Front brakes

Ventilated discs, 359.9x39.1 mm

Rear brakes

Ventilated discs, 357.9x34 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

275/60 R20; 275/50 R22

Wheel rim size

20; 22
