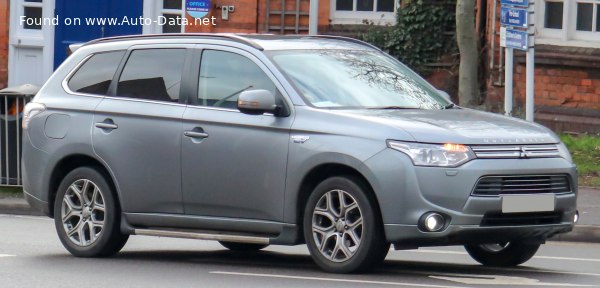

Mitsubishi Outlander III 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD | Technical specs, data, fuel consumption, Dimensions

Key specs

Mitsubishi Outlander III 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD /SUV, Crossover 2013 - 2015/

What is the body type of Mitsubishi Outlander III?

SUV, Crossover, 5 Doors, 5 Seats

What is the fuel consumption and economy of Mitsubishi Outlander III 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD?

1.9 l/100 km
123.8 US mpg
148.7 UK mpg
52.6 km/l

How environmentally friendly is Mitsubishi Outlander 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD?

44 g/km CO₂
Euro 5b

What is the all-electric range of 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD?

52 km
32 mi

What is the electricity consumption of Mitsubishi Outlander III 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD?

13.4 kWh/100 km
21.57 kWh/100 mi
156 MPGe
7.5 km/kWh
4.6 mi/kWh

How fast is 2013 Outlander III 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD?

170 km/h | 106 mph
0-100 km/h: 11 sec
0-60 mph: 10.5 sec

What is the power output of Mitsubishi Outlander SUV, Crossover 2013 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD?

200 Hp, 332 Nm
245 lb.-ft.

What is the engine displacement of Mitsubishi Outlander SUV, Crossover 2013 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD?

2.0 l
1998 cm³
121.93 cu. in.

What is the number of cylinders in 2013 Mitsubishi 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD?

4, Inline

What is the drivetrain of Mitsubishi Outlander III SUV, Crossover 2013 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD?

All wheel drive (4x4). PHEV (Plug-in Hybrid Electric Vehicle). An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.

What is the length of 2013 Mitsubishi Outlander SUV, Crossover?

4655 mm
183.27 in.

What is the width of 2013 Mitsubishi Outlander SUV, Crossover?

1800 mm
70.87 in.

What is the kerb weight of 2013 Mitsubishi Outlander III 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD?

1810 kg
3990 lbs.

What is the maximum permissible mass of 2013 Mitsubishi Outlander III 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD?

2310 kg
5093 lbs.

What is the trunk (boot) capacity of 2013 Mitsubishi Outlander SUV, Crossover?

463 l
16.4 cu. ft.

Mitsubishi
- Mitsubishi Outlander
  - Outlander III
    - 3.0 MIVEC V6 (224 Hp) AWD Automatic
    - 2.4 MIVEC (166 Hp) CVT
    - 2.4 MIVEC (166 Hp) AWD CVT
    - 2.2 (150 Hp) 4WD Automatic
    - 2.2 (150 Hp) 4WD
    - 2.0 MIVEC (150 Hp) 2WD Automatic
    - 2.0 MIVEC (150 Hp) 2WD
    - 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD

Compare

General information

Brand

Mitsubishi

Model

Outlander

Generation

Outlander III

Modification (Engine)

2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD

Start of production

2013

End of production

2015

Powertrain Architecture

PHEV (Plug-in Hybrid Electric Vehicle)

Body type

SUV, Crossover

Seats

Doors

Looking for Mitsubishi Outlander on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined (NEDC)

1.9 l/100 km 123.8 US mpg
148.7 UK mpg
52.6 km/l

CO₂ emissions (NEDC)

44 g/km

Fuel Type

Petrol / electricity

Acceleration 0 - 100 km/h

11 sec

Acceleration 0 - 62 mph

11 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

10.5 sec

Maximum speed

170 km/h 106 mph

Emission standard

Euro 5b

Weight-to-power ratio

9.1 kg/Hp, 110.5 Hp/tonne

Weight-to-torque ratio

5.5 kg/Nm, 183.4 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

12 kWh

Battery voltage

300 V

Battery technology

Lithium-ion (Li-Ion)

Battery location

Below the floor

Electric range (NEDC)

52 km 32 mi

Average Energy consumption (NEDC)

13.4 kWh/100 km 21.57 kWh/100 mi
156 MPGe
7.5 km/kWh
4.6 mi/kWh

Max speed (electric)

120 km/h 75 mph

Charging ports

Electric motor 1

Electric motor power

82 Hp

Electric motor Torque

137 Nm 101 lb.-ft.

Electric motor model/code

S61

Electric motor location

Integrated into the transmission

Electric motor 2

Electric motor power

82 Hp

Electric motor Torque

195 Nm 144 lb.-ft.

Electric motor model/code

Y61

Electric motor location

Rear axle, Transverse

System power

200 Hp

System torque

332 Nm 245 lb.-ft.

Internal combustion engine specs

Power

121 Hp @ 4500 rpm.

Power per litre

60.6 Hp/l

Torque

190 Nm @ 4500 rpm. 140 lb.-ft. @ 4500 rpm.

Engine layout

Front, Transverse

Engine Model/Code

4B11

Engine displacement

1998 cm³ 121.93 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

86 mm 3.39 in.

Piston Stroke

86 mm 3.39 in.

Compression ratio

10.5:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

4.6 l 4.86 US qt | 4.05 UK qt

Engine oil specification

Coolant

6.5 l 6.87 US qt | 5.72 UK qt

Engine systems

Start & Stop System

Volume and weights

Kerb Weight

1810 kg 3990 lbs.

Max. weight

2310 kg 5093 lbs.

Max load

500 kg 1102 lbs.

Trunk (boot) space - minimum

463 l 16.4 cu. ft.

Fuel tank capacity

45 l 11.89 US gal | 9.9 UK gal

Max. roof load

80 kg 176 lbs.

Permitted trailer load with brakes (12%)

1500 kg 3307 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Permitted towbar download

75 kg 165 lbs.

Dimensions

Length

4655 mm 183.27 in.

Width

1800 mm 70.87 in.

Width including mirrors

2120 mm 83.46 in.

Height

1680 mm 66.14 in.

Wheelbase

2670 mm 105.12 in.

Front track

1540 mm 60.63 in.

Rear (Back) track

1540 mm 60.63 in.

Front overhang

985 mm 38.78 in.

Rear overhang

1000 mm 39.37 in.

Ride height (ground clearance)

190 mm 7.48 in.

Minimum turning circle (turning diameter)

10.6 m 34.78 ft.

Approach angle

22.5°

Departure angle

22.5°

Ramp-over (breakover) angle

21°

Wading depth

400 mm 15.75 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.

Drive wheel

All wheel drive (4x4)

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Ventilated discs, 294 mm

Rear brakes

Disc, 302 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

225/55 R18

Wheel rim size

7J x 18

Specs of Mitsubishi Outlander III 2.0 MIVEC (200 Hp) Plug-in Hybrid 4WD /2013, 2014, 2015/
