Mercedes-Benz W180 II Cabriolet 220 S (106 Hp) Hydrak | Technical specs, data, fuel consumption, Dimensions

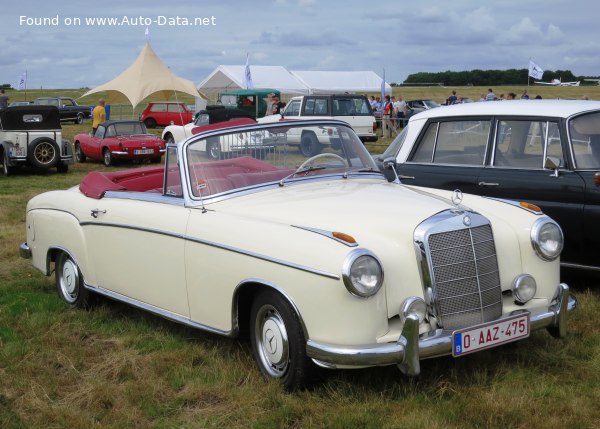

1956 Mercedes-Benz W180 II Cabriolet - Photo 1

Key specs

Mercedes-Benz W180 II Cabriolet 220 S (106 Hp) Hydrak /Cabriolet 1957 - 1959/

What is the body type of Mercedes-Benz W180 II Cabriolet?

Cabriolet, 2 Doors, 5 Seats

What is the fuel consumption and economy of Mercedes-Benz W180 II Cabriolet 220 S (106 Hp) Hydrak?

10.9 l/100 km
21.6 US mpg
25.9 UK mpg
9.2 km/l

How fast is 1957 W180 II Cabriolet 220 S (106 Hp) Hydrak?

160 km/h | 99 mph
0-100 km/h: 17 sec
0-60 mph: 16.2 sec

What is the power output of Mercedes-Benz Ponton Cabriolet 1957 220 S (106 Hp) Hydrak?

106 Hp, 171 Nm
126 lb.-ft.

What is the engine displacement of Mercedes-Benz Ponton Cabriolet 1957 220 S (106 Hp) Hydrak?

2.2 l
2195 cm³
133.95 cu. in.

What is the number of cylinders in 1957 Mercedes-Benz 220 S (106 Hp) Hydrak?

6, Inline

What is the drivetrain of Mercedes-Benz W180 II Cabriolet Cabriolet 1957 220 S (106 Hp) Hydrak?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 1957 Mercedes-Benz Ponton Cabriolet?

4700 mm
185.04 in.

What is the width of 1957 Mercedes-Benz Ponton Cabriolet?

1790 mm
70.47 in.

What is the kerb weight of 1957 Mercedes-Benz W180 II Cabriolet 220 S (106 Hp) Hydrak?

1400 kg
3086 lbs.

What is the maximum permissible mass of 1957 Mercedes-Benz W180 II Cabriolet 220 S (106 Hp) Hydrak?

1790 kg
3946 lbs.

What is the number of gears in What is the gearbox type of 1957 Mercedes-Benz W180 II Cabriolet 220 S (106 Hp) Hydrak?

4, manual transmission Hydrak

Mercedes-Benz
- Mercedes-Benz Ponton
  - W180 II Cabriolet
    - 220 S (106 Hp) Hydrak
    - 220 S (106 Hp)
    - 220 S (100 Hp)

Compare

General information

Brand

Mercedes-Benz

Model

Ponton

Generation

W180 II Cabriolet

Modification (Engine)

220 S (106 Hp) Hydrak

Start of production

August, 1957 year

End of production

October, 1959 year

Powertrain Architecture

Internal Combustion engine

Body type

Cabriolet

Seats

Doors

Looking for Mercedes-Benz Ponton on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined

10.9 l/100 km 21.6 US mpg
25.9 UK mpg
9.2 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

17 sec

Acceleration 0 - 62 mph

17 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

16.2 sec

Maximum speed

160 km/h 99 mph

Weight-to-power ratio

13.2 kg/Hp, 75.7 Hp/tonne

Weight-to-torque ratio

8.2 kg/Nm, 122.1 Nm/tonne

Engine specs

Power

106 Hp @ 5200 rpm.

Power per litre

48.3 Hp/l

Torque

171 Nm @ 3500 rpm. 126 lb.-ft. @ 3500 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

M 180 III / 180.924

Engine displacement

2195 cm³ 133.95 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

80.01 mm 3.15 in.

Piston Stroke

72.8 mm 2.87 in.

Compression ratio

8.7:1

Number of valves per cylinder

Fuel injection system

Carburettor

Engine aspiration

Naturally aspirated engine

Valvetrain

SOHC

Volume and weights

Kerb Weight

1400 kg 3086 lbs.

Max. weight

1790 kg 3946 lbs.

Max load

390 kg 860 lbs.

Fuel tank capacity

64 l 16.91 US gal | 14.08 UK gal

Dimensions

Length

4700 mm 185.04 in.

Width

1790 mm 70.47 in.

Height

1530 mm 60.24 in.

Wheelbase

2700 mm 106.3 in.

Front track

1430 mm 56.3 in.

Rear (Back) track

1470 mm 57.87 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

4 gears, manual transmission Hydrak

Front suspension

Double wishbone, Anti-roll bar

Rear suspension

Trailing arm

Front brakes

Drum

Rear brakes
