Specs of Honda Pilot IV TrailSport 3.5 V6 (285 Hp) AWD Automatic /2022, 2023, 2024, 2025/

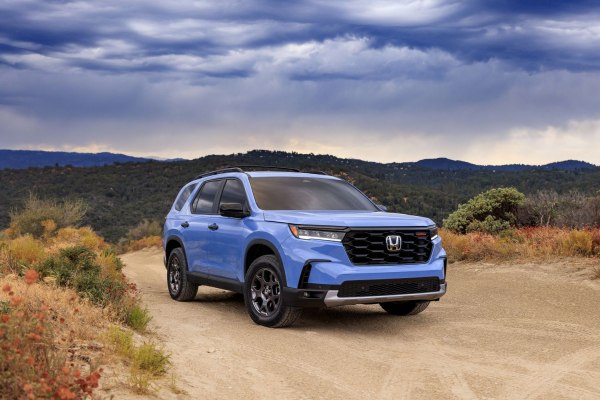

Honda Pilot IV - Photo 1
Honda Pilot IV - Photo 2Honda Pilot IV - Photo 3Honda Pilot IV - Photo 4Honda Pilot IV - Photo 5Honda Pilot IV - Photo 6Honda Pilot IV - Photo 7

Key specs

Honda Pilot IV TrailSport 3.5 V6 (285 Hp) AWD Automatic /SUV, Crossover 2022 - 2025/

What is the body type of Honda Pilot IV?
SUV, Crossover, 5 Doors, 7 Seats
What is the fuel consumption and economy of Honda Pilot IV TrailSport 3.5 V6 (285 Hp) AWD Automatic?
11.8 l/100 km
19.9 US mpg
23.9 UK mpg
8.5 km/l
How environmentally friendly is Honda Pilot TrailSport 3.5 V6 (285 Hp) AWD Automatic?
Tier 3 Bin 30
What is the power output of Honda Pilot SUV, Crossover 2022 TrailSport 3.5 V6 (285 Hp) AWD Automatic?
285 Hp, 355 Nm
262 lb.-ft.
What is the engine displacement of Honda Pilot SUV, Crossover 2022 TrailSport 3.5 V6 (285 Hp) AWD Automatic?
3.5 l
3471 cm3
211.81 cu. in.
What is the number of cylinders in 2022 Honda TrailSport 3.5 V6 (285 Hp) AWD Automatic?
6, V-engine
What is the drivetrain of Honda Pilot IV SUV, Crossover 2022 TrailSport 3.5 V6 (285 Hp) AWD Automatic?
All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
What is the length of 2022 Honda Pilot SUV, Crossover?
5085 mm
200.2 in.
What is the width of 2022 Honda Pilot SUV, Crossover?
2090 mm
82.28 in.
What is the kerb weight of 2022 Honda Pilot IV TrailSport 3.5 V6 (285 Hp) AWD Automatic?
2130 kg
4696 lbs.
What is the maximum permissible mass of 2022 Honda Pilot IV TrailSport 3.5 V6 (285 Hp) AWD Automatic?
2810 kg
6195 lbs.
What is the trunk (boot) capacity of 2022 Honda Pilot SUV, Crossover?
618 - 3219 l
21.8 - 113.7 cu. ft.
What is the number of gears in What is the gearbox type of 2022 Honda Pilot IV TrailSport 3.5 V6 (285 Hp) AWD Automatic?
10, automatic transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Honda
Model
Pilot
Generation
Pilot IV
Modification (Engine)
TrailSport 3.5 V6 (285 Hp) AWD Automatic
Start of production
December, 2022 year
End of production
December, 2025 year
Powertrain Architecture
Internal Combustion engine
Body type
SUV, Crossover
Seats
7
Doors
5
Looking for Honda Pilot on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
13 l/100 km 18.1 US mpg
21.7 UK mpg
7.7 km/l
Fuel consumption (economy) - extra urban
10.3 l/100 km 22.8 US mpg
27.4 UK mpg
9.7 km/l
Fuel consumption (economy) - combined
11.8 l/100 km 19.9 US mpg
23.9 UK mpg
8.5 km/l
Fuel Type
Petrol (Gasoline)
Emission standard
Tier 3 Bin 30
Weight-to-power ratio
7.5 kg/Hp, 133.8 Hp/tonne
Weight-to-torque ratio
6 kg/Nm, 166.7 Nm/tonne

Engine specs

Power
285 Hp @ 6100 rpm.
Power per litre
82.1 Hp/l
Torque
355 Nm @ 5000 rpm. 262 lb.-ft. @ 5000 rpm.
Engine layout
Front, Longitudinal
Engine Model/Code
J35Y8
Engine displacement
3471 cm3 211.81 cu. in.
Number of cylinders
6
Engine configuration
V-engine
Cylinder Bore
89 mm 3.5 in.
Piston Stroke
93 mm 3.66 in.
Compression ratio
11.5:1
Number of valves per cylinder
4
Fuel injection system
Direct injection
Engine aspiration
Naturally aspirated engine
Valvetrain
DOHC, i-VTEC
Engine oil capacity
5.5 l 5.81 US qt | 4.84 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
7.67 l 8.1 US qt | 6.75 UK qt
Engine systems
Start & Stop System

Volume and weights

Kerb Weight
2130 kg 4696 lbs.
Max. weight
2810 kg 6195 lbs.
Max load
680 kg 1499 lbs.
Trunk (boot) space - minimum
618 l 21.8 cu. ft.
Trunk (boot) space - maximum
3219 l 113.7 cu. ft.
Fuel tank capacity
70 l 18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (12%)
2268 kg 5000 lbs.

Dimensions

Length
5085 mm 200.2 in.
Width with mirrors folded
2090 mm 82.28 in.
Width including mirrors
2254 mm 88.74 in.
Height
1829 mm 72.01 in.
Wheelbase
2891 mm 113.82 in.
Front track
1707 mm 67.2 in.
Rear (Back) track
1712 mm 67.4 in.
Ride height (ground clearance)
210 mm 8.27 in.
Minimum turning circle (turning diameter)
11.52 m 37.8 ft.
Approach angle
19.8°
Departure angle
19°

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel
All wheel drive (4x4)
Number of gears and type of gearbox
10 gears, automatic transmission
Front suspension
Independent, McPherson type with coil spring and anti-roll bar
Rear suspension
Independent multi-link spring suspension with anti-roll bar
Front brakes
Ventilated discs
Rear brakes
Disc
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tires size
265/60 R18 110T
Wheel rims size
18
