Holden Monaro 5.7 i V8 (320 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

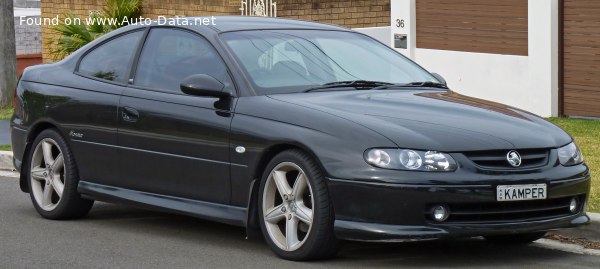

Holden Monaro 5.7 i V8 (320 Hp) /Coupe 2003 - 2005/

What is the body type of Holden Monaro?

Coupe, 2 Doors, 4 Seats

What is the power output of Holden Monaro Coupe 2003 5.7 i V8 (320 Hp)?

320 Hp, 464 Nm
342 lb.-ft.

What is the engine displacement of Holden Monaro Coupe 2003 5.7 i V8 (320 Hp)?

5.7 l
5665 cm³
345.7 cu. in.

What is the number of cylinders in 2003 Holden 5.7 i V8 (320 Hp)?

8, V-engine

What is the drivetrain of Holden Monaro Coupe 2003 5.7 i V8 (320 Hp)?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 2003 Holden Monaro Coupe?

4790 mm
188.58 in.

What is the width of 2003 Holden Monaro Coupe?

1840 mm
72.44 in.

What is the kerb weight of 2003 Holden Monaro 5.7 i V8 (320 Hp)?

1646 kg
3629 lbs.

What is the trunk (boot) capacity of 2003 Holden Monaro Coupe?

370 l
13.1 cu. ft.

What are the number of gears and the gearbox type of 2003 Holden Monaro 5.7 i V8 (320 Hp)?

6, manual transmission

Holden
- Holden Monaro
  - Monaro
    - 5.7 V8 (408 Hp)
    - 5.7 V8 (306 Hp) Automatic
    - 5.7 V8 (306 Hp)
    - 5.7 i V8 (320 Hp)
    - 3.8 V6 (233 Hp)

Compare

General information

Brand

Holden

Model

Monaro

Generation

Monaro

Modification (Engine)

5.7 i V8 (320 Hp)

Start of production

2003

End of production

2005

Powertrain Architecture

Internal Combustion engine

Body type

Coupe

Seats

Doors

Looking for Holden Monaro on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

13 l/100 km 18.1 US mpg
21.7 UK mpg
7.7 km/l

Fuel consumption (economy) - extra urban

7.4 l/100 km 31.8 US mpg
38.2 UK mpg
13.5 km/l

Fuel Type

Petrol (Gasoline)

Weight-to-power ratio

5.1 kg/Hp, 194.4 Hp/tonne

Weight-to-torque ratio

3.5 kg/Nm, 281.9 Nm/tonne

Engine specs

Power

320 Hp @ 5200 rpm.

Power per litre

56.5 Hp/l

Torque

464 Nm @ 4400 rpm. 342 lb.-ft. @ 4400 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

LS1

Engine displacement

5665 cm³ 345.7 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

99 mm 3.9 in.

Piston Stroke

92 mm 3.62 in.

Compression ratio

10.1:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

6.2 l 6.55 US qt | 5.46 UK qt

Engine oil specification

Coolant

11 l 11.62 US qt | 9.68 UK qt

Volume and weights

Kerb Weight

1646 kg 3629 lbs.

Trunk (boot) space - minimum

370 l 13.1 cu. ft.

Fuel tank capacity

75 l 19.81 US gal | 16.5 UK gal

Dimensions

Length

4790 mm 188.58 in.

Width

1840 mm 72.44 in.

Height

1400 mm 55.12 in.

Wheelbase

2790 mm 109.84 in.

Front track

1560 mm 61.42 in.

Rear (Back) track

1575 mm 62.01 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

6 gears, manual transmission

Front suspension

Suspension strut

Rear suspension

Coil spring

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

235/45 R17

Specs of Holden Monaro 5.7 i V8 (320 Hp) /2003, 2004, 2005/
