Holden Cruze Sportwagon (JH) 2.0 TD (163 Hp) Automatic | Technical Specs, Fuel consumption, Dimensions

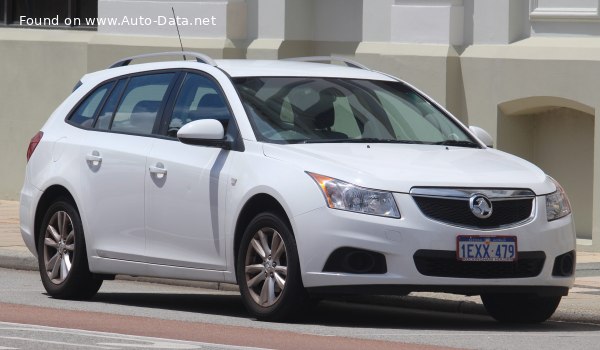

2013 Holden Cruze Sportwagon (JH) - Photo 1

Key specs

Holden Cruze Sportwagon (JH) 2.0 TD (163 Hp) Automatic /Station wagon 2012 - 2014/

What is the body type of Holden Cruze Sportwagon (JH)?

Station wagon, 5 Doors, 5 Seats

What is the power output of Holden Cruze Station wagon 2012 2.0 TD (163 Hp) Automatic?

163 Hp, 360 Nm
266 lb.-ft.

What is the engine displacement of Holden Cruze Station wagon 2012 2.0 TD (163 Hp) Automatic?

2.0 l
1998 cm³
121.93 cu. in.

What is the number of cylinders in 2012 Holden 2.0 TD (163 Hp) Automatic?

4, Inline

What is the drivetrain of Holden Cruze Sportwagon (JH) Station wagon 2012 2.0 TD (163 Hp) Automatic?

Front wheel drive. ICE. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2012 Holden Cruze Station wagon?

4675 mm
184.06 in.

What is the width of 2012 Holden Cruze Station wagon?

1797 mm
70.75 in.

What is the trunk (boot) capacity of 2012 Holden Cruze Station wagon?

686 - 1478 l
24.2 - 52.2 cu. ft.

What are the number of gears and the gearbox type of 2012 Holden Cruze Sportwagon (JH) 2.0 TD (163 Hp) Automatic?

6, automatic transmission

Holden Cruze Sportwagon (JH) 2.0 TD (163 Hp) Automatic

Holden
- Holden Cruze
  - Cruze Sportwagon (JH)
    - 2.0 TD (163 Hp) Automatic
    - 1.8 ECOTEC (141 Hp) Automatic

Compare

General information

Brand

Holden

Model

Cruze

Generation

Cruze Sportwagon (JH)

Modification (Engine)

2.0 TD (163 Hp) Automatic

Start of production

December, 2012

End of production

December, 2014

Powertrain Architecture

Internal Combustion engine

Body type

Station wagon (estate)

Seats

Doors

Looking for Holden Cruze on the used-car market?

Check its history →

Performance specs

Fuel Type

Diesel

Engine specs

Power

163 Hp @ 3800 rpm.

Power per litre

81.6 Hp/l

Torque

360 Nm @ 2000 rpm. 266 lb.-ft. @ 2000 rpm.

Engine layout

Front, Transverse

Engine Model/Code

Z20S1

Engine displacement

1998 cm³ 121.93 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

86 mm 3.39 in.

Piston Stroke

86 mm 3.39 in.

Compression ratio

16.3:1

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

5.4 l 5.71 US qt | 4.75 UK qt

Engine oil specification

Coolant

7.5 l 7.93 US qt | 6.6 UK qt

Engine systems

Particulate filter

Volume and weights

Trunk (boot) space - minimum

686 l 24.2 cu. ft.

Trunk (boot) space - maximum

1478 l 52.2 cu. ft.

Fuel tank capacity

60 l 15.85 US gal | 13.2 UK gal

Permitted trailer load with brakes (12%)

1200 kg 2646 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Dimensions

Length

4675 mm 184.06 in.

Width

1797 mm 70.75 in.

Height

1521 mm 59.88 in.

Wheelbase

2685 mm 105.71 in.

Front track

1544 mm 60.79 in.

Rear (Back) track

1558 mm 61.34 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Coil spring, Torsion bar

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

205/60 R16; 225/50 R17

Wheel rim size

6.5J x 16; 7J x 17

Holden Cruze Sportwagon (JH) 2.0 TD (163 Hp) Automatic2012, 2013, 2014: specs, Fuel consumption, Dimensions
