Specs of Ford Falcon (FG X) 4.0 DI-VCT Turbo (367 Hp) Automatic /2014, 2015, 2016/

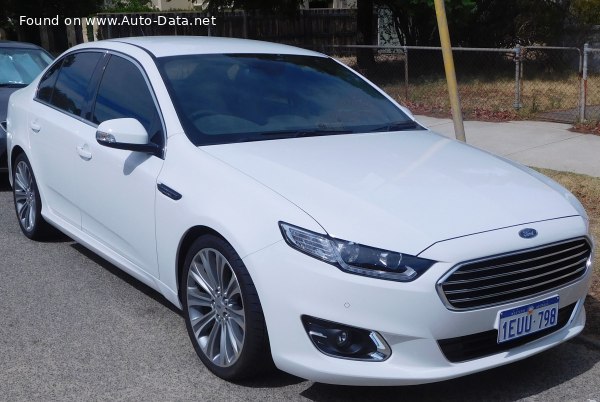

2015 Ford Falcon (FG X) - Photo 1
Ford Falcon (FG X) - Photo 2Ford Falcon (FG X) - Photo 3Ford Falcon (FG X) - Photo 4Ford Falcon (FG X) - Photo 5Ford Falcon (FG X) - Photo 6

Key specs:
Ford Falcon (FG X) 4.0 DI-VCT Turbo (367 Hp) Automatic
/Sedan 2014 - 2016/

What is the body type of Ford Falcon (FG X)?Sedan, 4 Doors, 5 Seats
What is the fuel consumption and economy of Ford Falcon (FG X) 4.0 DI-VCT Turbo (367 Hp) Automatic?11.7 l/100 km
20.1 US mpg
24.1 UK mpg
8.5 km/l
How environmentally friendly is Ford Falcon 4.0 DI-VCT Turbo (367 Hp) Automatic?278 g/km CO2
What is the power output of Ford Falcon Sedan 2014 4.0 DI-VCT Turbo (367 Hp) Automatic?367 Hp, 533 Nm
393.12 lb.-ft.
What is the engine displacement of Ford Falcon Sedan 2014 4.0 DI-VCT Turbo (367 Hp) Automatic?4.0 l
3983 cm3
243.06 cu. in.
What is the number of cylinders in 2014 Ford 4.0 DI-VCT Turbo (367 Hp) Automatic?6, Inline
What is the drivetrain of Ford Falcon (FG X) Sedan 2014 4.0 DI-VCT Turbo (367 Hp) Automatic?Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
What is the length of 2014 Ford Falcon Sedan?4949 mm
194.84 in.
What is the width of 2014 Ford Falcon Sedan?1868 mm
73.54 in.
What is the kerb weight of 2014 Ford Falcon (FG X) 4.0 DI-VCT Turbo (367 Hp) Automatic?1793 kg
3952.89 lbs.
What is the trunk (boot) capacity of 2014 Ford Falcon Sedan?535 l
18.89 cu. ft.
What is the number of gears in What is the gearbox type of 2014 Ford Falcon (FG X) 4.0 DI-VCT Turbo (367 Hp) Automatic?6, automatic transmission

Ford Falcon (FG X) 4.0 DI-VCT Turbo (367 Hp) Automatic - Full specifications

General information

BrandFord
Model Falcon
Generation Falcon (FG X)
Modification (Engine) 4.0 DI-VCT Turbo (367 Hp) Automatic
Start of production 2014 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body typeSedan
Seats 5
Doors 4

Performance specs

Fuel consumption (economy) - urban 17.2 l/100 km 13.7 US mpg
16.4 UK mpg
5.8 km/l
Fuel consumption (economy) - extra urban 8.5 l/100 km 27.7 US mpg
33.2 UK mpg
11.8 km/l
Fuel consumption (economy) - combined 11.7 l/100 km 20.1 US mpg
24.1 UK mpg
8.5 km/l
CO2 emissions278 g/km
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 4.9 kg/Hp, 204.7 Hp/tonne
Weight-to-torque ratio 3.4 kg/Nm, 297.3 Nm/tonne

Engine specs

Power 367 Hp @ 5250 rpm.
Power per litre 92.1 Hp/l
Torque 533 Nm @ 2000-4750 rpm. 393.12 lb.-ft. @ 2000-4750 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Barra 270T
Engine displacement 3983 cm3 243.06 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 92.26 mm 3.63 in.
Piston Stroke 99.31 mm 3.91 in.
Compression ratio 8.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC

Space, Volume and weights

Kerb Weight 1793 kg 3952.89 lbs.
Trunk (boot) space - minimum 535 l 18.89 cu. ft.
Fuel tank capacity 68 l 17.96 US gal | 14.96 UK gal
Permitted trailer load with brakes (12%) 2300 kg 5070.63 lbs.

Dimensions

Length 4949 mm 194.84 in.
Width 1868 mm 73.54 in.
Width including mirrors 2100 mm 82.68 in.
Height 1494 mm 58.82 in.
Wheelbase 2838 mm 111.73 in.
Front track 1583 mm 62.32 in.
Rear (Back) track 1598 mm 62.91 in.
Front overhang 943 mm 37.13 in.
Rear overhang 1168 mm 45.98 in.
Drag coefficient (Cd) 0.291
Minimum turning circle (turning diameter) 11 m 36.09 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakesVentilated discs, 322 mm
Rear brakesDisc, 328 mm
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 245/35 R19
Wheel rims size8J x 19
