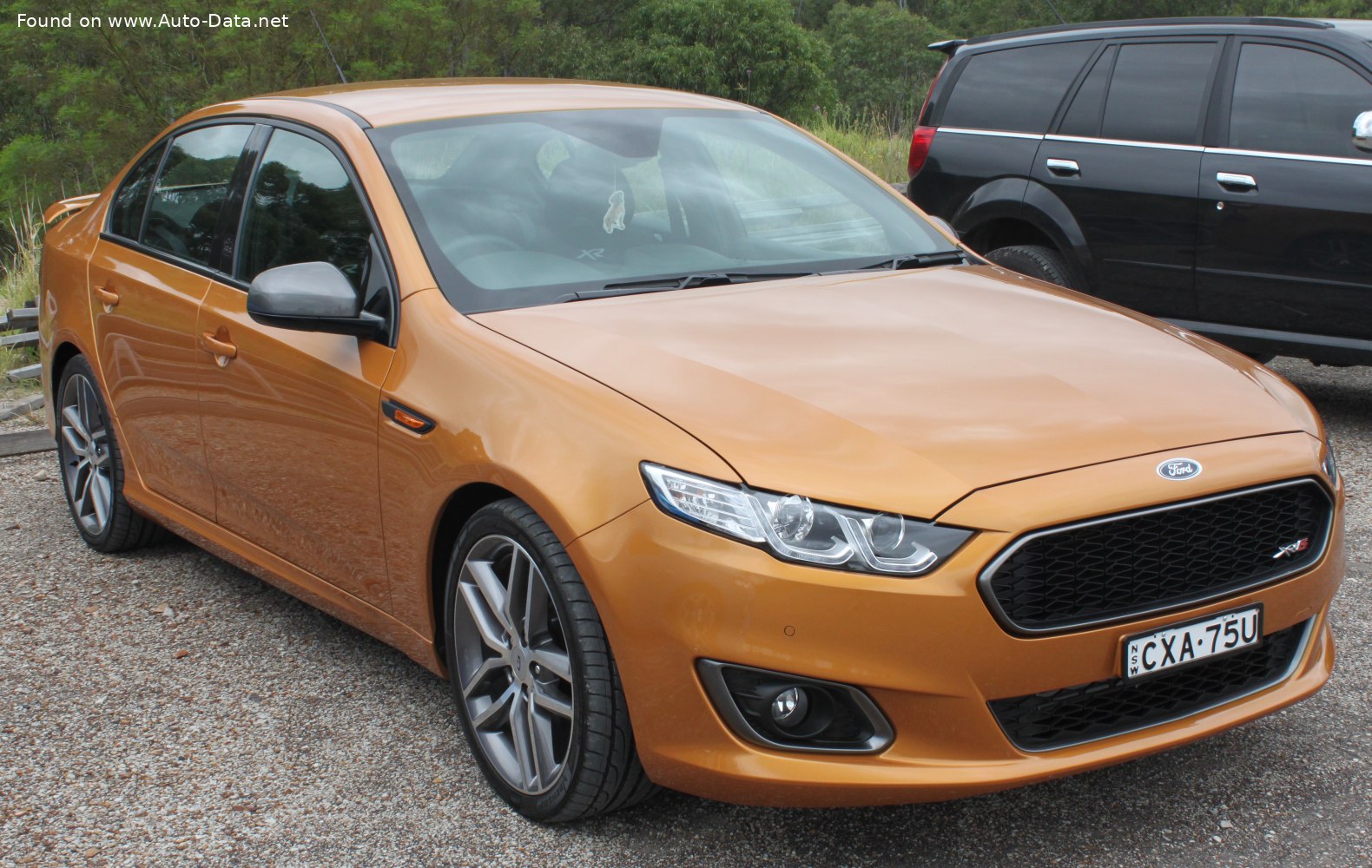

Ford Falcon (FG X) 4.0 DI-VCT Turbo (367 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

Ford Falcon (FG X) 4.0 DI-VCT Turbo (367 Hp) /Sedan 2014 - 2016/

What is the body type of Ford Falcon (FG X)?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Ford Falcon (FG X) 4.0 DI-VCT Turbo (367 Hp)?

12 l/100 km
19.6 US mpg
23.5 UK mpg
8.3 km/l

What is the power output of Ford Falcon Sedan 2014 4.0 DI-VCT Turbo (367 Hp)?

367 Hp, 533 Nm
393 lb.-ft.

What is the engine displacement of Ford Falcon Sedan 2014 4.0 DI-VCT Turbo (367 Hp)?

4.0 l
3983 cm³
243.06 cu. in.

What is the number of cylinders in 2014 Ford 4.0 DI-VCT Turbo (367 Hp)?

6, Inline

What is the drivetrain of Ford Falcon (FG X) Sedan 2014 4.0 DI-VCT Turbo (367 Hp)?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 2014 Ford Falcon Sedan?

4949 mm
194.84 in.

What is the width of 2014 Ford Falcon Sedan?

1868 mm
73.54 in.

What is the trunk (boot) capacity of 2014 Ford Falcon Sedan?

535 l
18.9 cu. ft.

What are the number of gears and the gearbox type of 2014 Ford Falcon (FG X) 4.0 DI-VCT Turbo (367 Hp)?

6, manual transmission

Ford
- Ford Falcon
  - Falcon (FG X)

Compare

General information

Brand

Ford

Model

Falcon

Generation

Falcon (FG X)

Modification (Engine)

4.0 DI-VCT Turbo (367 Hp)

Start of production

2014

End of production

2016

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Ford Falcon on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

17.2 l/100 km 13.7 US mpg
16.4 UK mpg
5.8 km/l

Fuel consumption (economy) - extra urban

9 l/100 km 26.1 US mpg
31.4 UK mpg
11.1 km/l

Fuel consumption (economy) - combined

12 l/100 km 19.6 US mpg
23.5 UK mpg
8.3 km/l

Fuel Type

Petrol (Gasoline)

Engine specs

Power

367 Hp @ 5250 rpm.

Power per litre

92.1 Hp/l

Torque

533 Nm @ 2000-4750 rpm. 393 lb.-ft. @ 2000-4750 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

Barra 270T

Engine displacement

3983 cm³ 243.06 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

92.26 mm 3.63 in.

Piston Stroke

99.31 mm 3.91 in.

Compression ratio

8.8:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Volume and weights

Trunk (boot) space - minimum

535 l 18.9 cu. ft.

Fuel tank capacity

68 l 17.96 US gal | 14.96 UK gal

Permitted trailer load with brakes (12%)

1200 kg 2646 lbs.

Dimensions

Length

4949 mm 194.84 in.

Width

1868 mm 73.54 in.

Width including mirrors

2100 mm 82.68 in.

Height

1494 mm 58.82 in.

Wheelbase

2838 mm 111.73 in.

Front track

1583 mm 62.32 in.

Rear (Back) track

1598 mm 62.91 in.

Front overhang

943 mm 37.13 in.

Rear overhang

1168 mm 45.98 in.

Drag coefficient (C_d)

0.291

Minimum turning circle (turning diameter)

11 m 36.09 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

6 gears, manual transmission

Front suspension

Double wishbone

Rear suspension

Independent multi-link suspension

Front brakes

Ventilated discs, 322 mm

Rear brakes

Disc, 328 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

245/35 R19

Wheel rim size

8J x 19

Specs of Ford Falcon (FG X) 4.0 DI-VCT Turbo (367 Hp) /2014, 2015, 2016/
