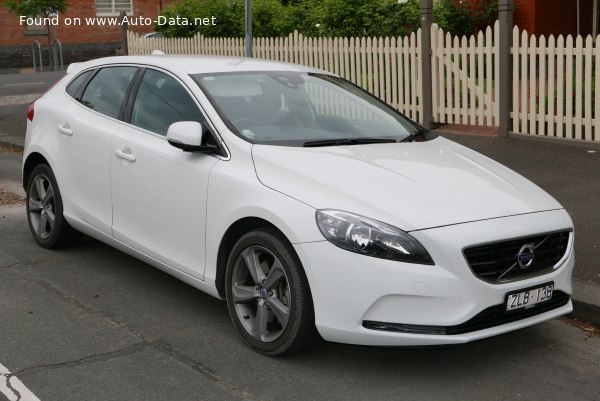

Volvo V40 (2012) 2.0 D4 (190 Hp) Restricted Specs

Key specs

Volvo V40 Hatchback 2014, 2015, 2016

What is the body type?Hatchback, 5 Doors, 5 Seats
What is the fuel economy?3.3 l/100 km
71.28 US mpg
85.6 UK mpg
How ECO is the car?85 g/km CO2
EURO VI
How fast is?190 km/h
7.5 sec 0-100 km/h
7.1 sec 0-60 mph
How much power?190 hp, 400 Nm
295.02 lb.-ft.
What is the engine size?2.0 l
1969 cm3
120.16 cu. in.
How many cylinders?4, Inline
What is the drivetrain?Front wheel drive
How long is this vehicle?4369 mm
172.01 in.
How wide is the vehicle?1857 mm
73.11 in.
How many gears?6
What type is the gearbox?manual transmission
Volvo V40 (2012) 2.0 D4 (190 Hp) Restricted - Technical Specs, Fuel consumption, DimensionsVolvo V40 (2012) 2.0 D4 (190 Hp) Restricted - Technical Specs, Fuel consumption, DimensionsVolvo V40 (2012) 2.0 D4 (190 Hp) Restricted - Technical Specs, Fuel consumption, DimensionsVolvo V40 (2012) 2.0 D4 (190 Hp) Restricted - Technical Specs, Fuel consumption, DimensionsVolvo V40 (2012) 2.0 D4 (190 Hp) Restricted - Technical Specs, Fuel consumption, DimensionsVolvo V40 (2012) 2.0 D4 (190 Hp) Restricted - Technical Specs, Fuel consumption, DimensionsVolvo V40 (2012) 2.0 D4 (190 Hp) Restricted - Technical Specs, Fuel consumption, DimensionsVolvo V40 (2012) 2.0 D4 (190 Hp) Restricted - Technical Specs, Fuel consumption, DimensionsVolvo V40 (2012) 2.0 D4 (190 Hp) Restricted - Technical Specs, Fuel consumption, DimensionsVolvo V40 (2012) 2.0 D4 (190 Hp) Restricted - Technical Specs, Fuel consumption, Dimensions

General information

BrandVolvo
Model V40
Generation V40 (2012)
Modification (Engine) 2.0 D4 (190 Hp) Restricted
Start of production 2014 year
End of production 2016 year
Body type Hatchback
Seats 5
Doors 5

Performance specs

Fuel consumption (economy) - combined 3.3 l/100 km 71.28 US mpg
85.6 UK mpg
Fuel Type Diesel
Acceleration 0 - 100 km/h 7.5 sec
0 - 60 mph (Calculated by Auto-Data.net) 7.1 sec
Maximum speed 190 km/h 118.06 mph
Emission standard EURO VI
CO2 emissions 85 g/km

Engine specs

Power 190 hp @ 4250 rpm.
Torque 400 Nm @ 1750-2500 rpm. 295.02 lb.-ft. @ 1750-2500 rpm.
Position of engine Front, transversely
Model Engine D4204T14
Engine displacement 1969 cm3 120.16 cu. in.
Number of cylinders 4
Position of cylinders Inline
Cylinder Bore 82 mm 3.23 in.
Piston Stroke 93.2 mm 3.67 in.
Compression ratio 15.8
Number of valves per cylinder 4
Fuel System Diesel Commonrail
Turbine Turbocharger / Intercooler
Valvetrain DOHC

Space, Volume and weights

Fuel tank volume 62 l 16.38 US gal | 13.64 UK gal

Dimensions

Length 4369 mm 172.01 in.
Width 1857 mm 73.11 in.
Height 1439 mm 56.65 in.
Wheelbase 2647 mm 104.21 in.
Front track 1559-1546 mm 61.38 - 60.87 in.
Rear (Back) track 1546-1533 mm 60.87 - 60.35 in.
Ride height 133 - 144 mm 5.24 - 5.67 in.
Minimum turning circle (turning diameter) 11.2 - 12.0 m 36.75 - 39.37 ft.

Drivetrain, brakes and suspension specs

Drive wheel Front wheel drive
Number of Gears (manual transmission) 6
Front suspension Independent, Spring McPherson, with stabilizer
Rear suspension Independent, spring
Front brakesVentilated discs
Rear brakesDisc
ABS yes
Steering type Steering rack
