Specs of Volvo S90 (2016) 2.0 D5 (235 Hp) AWD Automatic /2018, 2019, 2020/

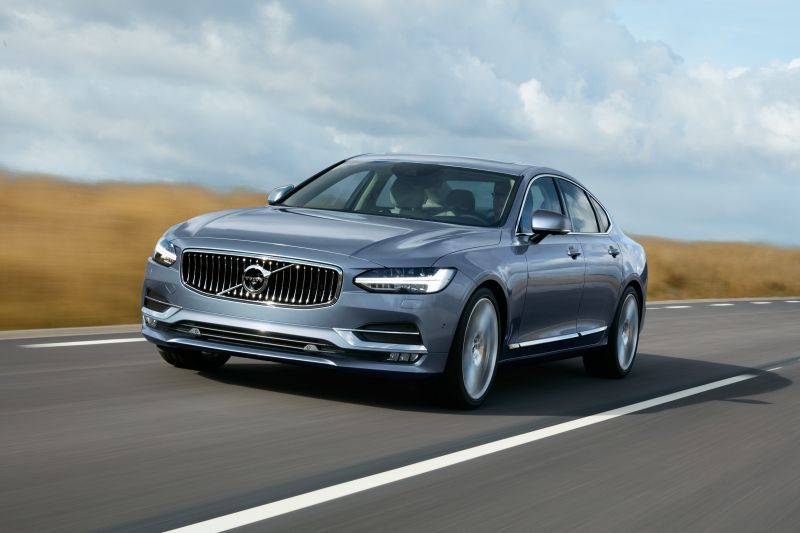

2017 Volvo S90 (2016) - Photo 1
Volvo S90 (2016) - Photo 2Volvo S90 (2016) - Photo 3Volvo S90 (2016) - Photo 4Volvo S90 (2016) - Photo 5Volvo S90 (2016) - Photo 6Volvo S90 (2016) - Photo 7Volvo S90 (2016) - Photo 8Volvo S90 (2016) - Photo 9Volvo S90 (2016) - Photo 10

Key specs

Volvo S90 (2016) 2.0 D5 (235 Hp) AWD Automatic /Sedan 2018 - 2020/

What is the body type of Volvo S90 (2016)?
Sedan, 4 Doors, 5 Seats
What is the fuel consumption and economy of Volvo S90 (2016) 2.0 D5 (235 Hp) AWD Automatic?
5.4-5.5 l/100 km
43.6 - 42.8 US mpg
52.3 - 51.4 UK mpg
18.5 - 18.2 km/l
How environmentally friendly is Volvo S90 2.0 D5 (235 Hp) AWD Automatic?
142-144 g/km CO2
Euro 6d-Temp
How fast is 2018 S90 (2016) 2.0 D5 (235 Hp) AWD Automatic?
240 km/h | 149 mph
0-100 km/h: 7 sec
0-60 mph: 6.7 sec
What is the power output of Volvo S90 Sedan 2018 2.0 D5 (235 Hp) AWD Automatic?
235 Hp, 480 Nm
354 lb.-ft.
What is the engine displacement of Volvo S90 Sedan 2018 2.0 D5 (235 Hp) AWD Automatic?
2.0 l
1969 cm3
120.16 cu. in.
What is the number of cylinders in 2018 Volvo 2.0 D5 (235 Hp) AWD Automatic?
4, Inline
What is the drivetrain of Volvo S90 (2016) Sedan 2018 2.0 D5 (235 Hp) AWD Automatic?
All wheel drive (4x4). Internal Combustion engine.
What is the length of 2018 Volvo S90 Sedan?
4963 mm
195.39 in.
What is the width of 2018 Volvo S90 Sedan?
1879 mm
73.98 in.
What is the kerb weight of 2018 Volvo S90 (2016) 2.0 D5 (235 Hp) AWD Automatic?
1953 kg
4306 lbs.
What is the trunk (boot) capacity of 2018 Volvo S90 Sedan?
500 l
17.7 cu. ft.
What are the number of gears and the gearbox type of 2018 Volvo S90 (2016) 2.0 D5 (235 Hp) AWD Automatic?
8, automatic transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Volvo
Model
S90
Generation
S90 (2016)
Modification (Engine)
2.0 D5 (235 Hp) AWD Automatic
Start of production
2018
End of production
2020
Powertrain Architecture
Internal Combustion engine
Body type
Sedan
Seats
5
Doors
4
Looking for Volvo S90 on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
6.3-6.4 l/100 km 37.3 - 36.8 US mpg
44.8 - 44.1 UK mpg
15.9 - 15.6 km/l
Fuel consumption (economy) - extra urban
4.9 l/100 km 48 US mpg
57.6 UK mpg
20.4 km/l
Fuel consumption (economy) - combined
5.4-5.5 l/100 km 43.6 - 42.8 US mpg
52.3 - 51.4 UK mpg
18.5 - 18.2 km/l
CO2 emissions
142-144 g/km
Fuel Type
Diesel
Acceleration 0 - 100 km/h
7 sec
Acceleration 0 - 62 mph
7 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
6.7 sec
Maximum speed
240 km/h 149 mph
100 km/h - 0
35 m
Emission standard
Euro 6d-Temp
Weight-to-power ratio
8.3 kg/Hp, 120.3 Hp/tonne
Weight-to-torque ratio
4.1 kg/Nm, 245.8 Nm/tonne

Engine specs

Power
235 Hp @ 4000 rpm.
Power per litre
119.3 Hp/l
Torque
480 Nm 354 lb.-ft.
Maximum engine speed
5000 rpm.
Engine layout
Front, Transverse
Engine Model/Code
D4204T23
Engine displacement
1969 cm3 120.16 cu. in.
Number of cylinders
4
Engine configuration
Inline
Cylinder Bore
82 mm 3.23 in.
Piston Stroke
93.2 mm 3.67 in.
Compression ratio
15.8:1
Number of valves per cylinder
4
Fuel injection system
Diesel Commonrail
Engine aspiration
Twin Turbo, Intercooler
Valvetrain
DOHC
Engine oil capacity
5.2 l 5.49 US qt | 4.58 UK qt
Engine oil specification
Log in to see.Log in to see.
Engine systems
Particulate filter

Volume and weights

Kerb Weight
1953 kg 4306 lbs.
Trunk (boot) space - minimum
500 l 17.7 cu. ft.
Fuel tank capacity
60 l 15.85 US gal | 13.2 UK gal
AdBlue tank
11.5 l 3.04 US gal | 2.53 UK gal
Max. roof load
100 kg 220 lbs.
Permitted trailer load with brakes (12%)
2200 kg 4850 lbs.
Permitted trailer load without brakes
750 kg 1653 lbs.

Dimensions

Length
4963 mm 195.39 in.
Width
1879 mm 73.98 in.
Width with mirrors folded
1895 mm 74.61 in.
Width including mirrors
2019 mm 79.49 in.
Height
1443 mm 56.81 in.
Wheelbase
2941 mm 115.79 in.
Front track
1617-1628 mm 63.66 - 64.09 in.
Rear (Back) track
1618-1629 mm 63.7 - 64.13 in.
Front overhang
873 mm 34.37 in.
Rear overhang
1149 mm 45.24 in.
Ride height (ground clearance)
152 mm 5.98 in.
Drag coefficient (Cd)
0.26-0.29
Minimum turning circle (turning diameter)
11.8-12.2 m 38.71 - 40.03 ft.
Wading depth
250 mm 9.84 in.

Drivetrain, brakes and suspension specs

Drive wheel
All wheel drive (4x4)
Number of gears and type of gearbox
8 gears, automatic transmission
Front suspension
Double wishbone, Anti-roll bar
Rear suspension
Anti-roll bar, Torsion bar
Front brakes
Disc
Rear brakes
Disc
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
