Specs of Volvo P1800 1.8 (100 Hp) /1961, 1962, 1963/

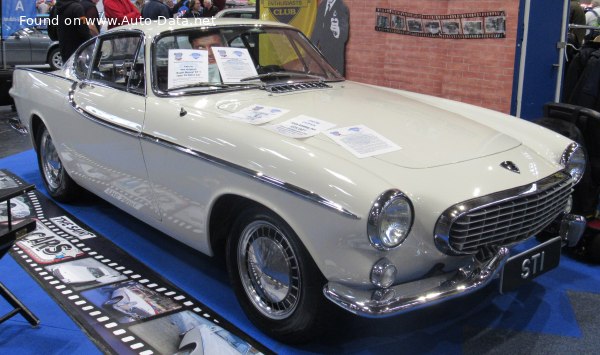

1961 Volvo P1800 - Photo 1
Volvo P1800 - Photo 2Volvo P1800 - Photo 3Volvo P1800 - Photo 4

Key specs:
Volvo P1800 1.8 (100 Hp)
/Coupe 1961 - 1963/

What is the body type of Volvo P1800?Coupe, 2 Doors, 4 Seats
How fast is 1961 P1800 1.8 (100 Hp)?170 km/h | 105.63 mph
What is the power output of Volvo 1800 Coupe 1961 1.8 (100 Hp)?100 Hp, 147 Nm
108.42 lb.-ft.
What is the engine displacement of Volvo 1800 Coupe 1961 1.8 (100 Hp)?1.8 l
1780 cm3
108.62 cu. in.
What is the number of cylinders in 1961 Volvo 1.8 (100 Hp)?4, Inline
What is the drivetrain of Volvo P1800 Coupe 1961 1.8 (100 Hp)?Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
What is the length of 1961 Volvo 1800 Coupe?4400 mm
173.23 in.
What is the width of 1961 Volvo 1800 Coupe?1700 mm
66.93 in.
What is the kerb weight of 1961 Volvo P1800 1.8 (100 Hp)?1130 kg
2491.22 lbs.
What is the maximum permissible mass of 1961 Volvo P1800 1.8 (100 Hp)?1400 kg
3086.47 lbs.
What is the number of gears in What is the gearbox type of 1961 Volvo P1800 1.8 (100 Hp)?4, manual transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

Volvo P1800 1.8 (100 Hp) - Full specifications

General information

BrandVolvo
Model 1800
Generation P1800
Modification (Engine) 1.8 (100 Hp)
Start of production 1961 year
End of production 1963 year
Powertrain Architecture Internal Combustion engine
Body typeCoupe
Seats 4
Doors 2

Performance specs

Fuel Type Petrol (Gasoline)
Maximum speed 170 km/h 105.63 mph
Weight-to-power ratio 11.3 kg/Hp, 88.5 Hp/tonne
Weight-to-torque ratio 7.7 kg/Nm, 130.1 Nm/tonne

Engine specs

Power 100 Hp @ 5500 rpm.
Power per litre 56.2 Hp/l
Torque 147 Nm @ 4000 rpm. 108.42 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code B18B
Engine displacement 1780 cm3 108.62 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84.14 mm 3.31 in.
Piston Stroke 80 mm 3.15 in.
Compression ratio 9.5:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Valvetrain OHV
Engine oil capacity 3.75 l 3.96 US qt | 3.3 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l 9.51 US qt | 7.92 UK qt

Space, Volume and weights

Kerb Weight 1130 kg 2491.22 lbs.
Max. weight 1400 kg 3086.47 lbs.
Max load 270 kg 595.25 lbs.
Fuel tank capacity 45 l 11.89 US gal | 9.9 UK gal

Dimensions

Length 4400 mm 173.23 in.
Width 1700 mm 66.93 in.
Height 1285 mm 50.59 in.
Wheelbase 2450 mm 96.46 in.
Front track 1315 mm 51.77 in.
Rear (Back) track 1315 mm 51.77 in.
Ride height (ground clearance) 155 mm 6.1 in.
Minimum turning circle (turning diameter) 9.5 m 31.17 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, manual transmission
Front suspension Coil spring, Wishbone, Anti-roll bar
Rear suspension Rigid axle suspension, Trailing arm, Coil spring
Front brakesDisc, 254x12.7 mm
Rear brakesDrum, 228.6x50.8 mm
Tires size 165/80 R15
Wheel rims size4.5J x 15
