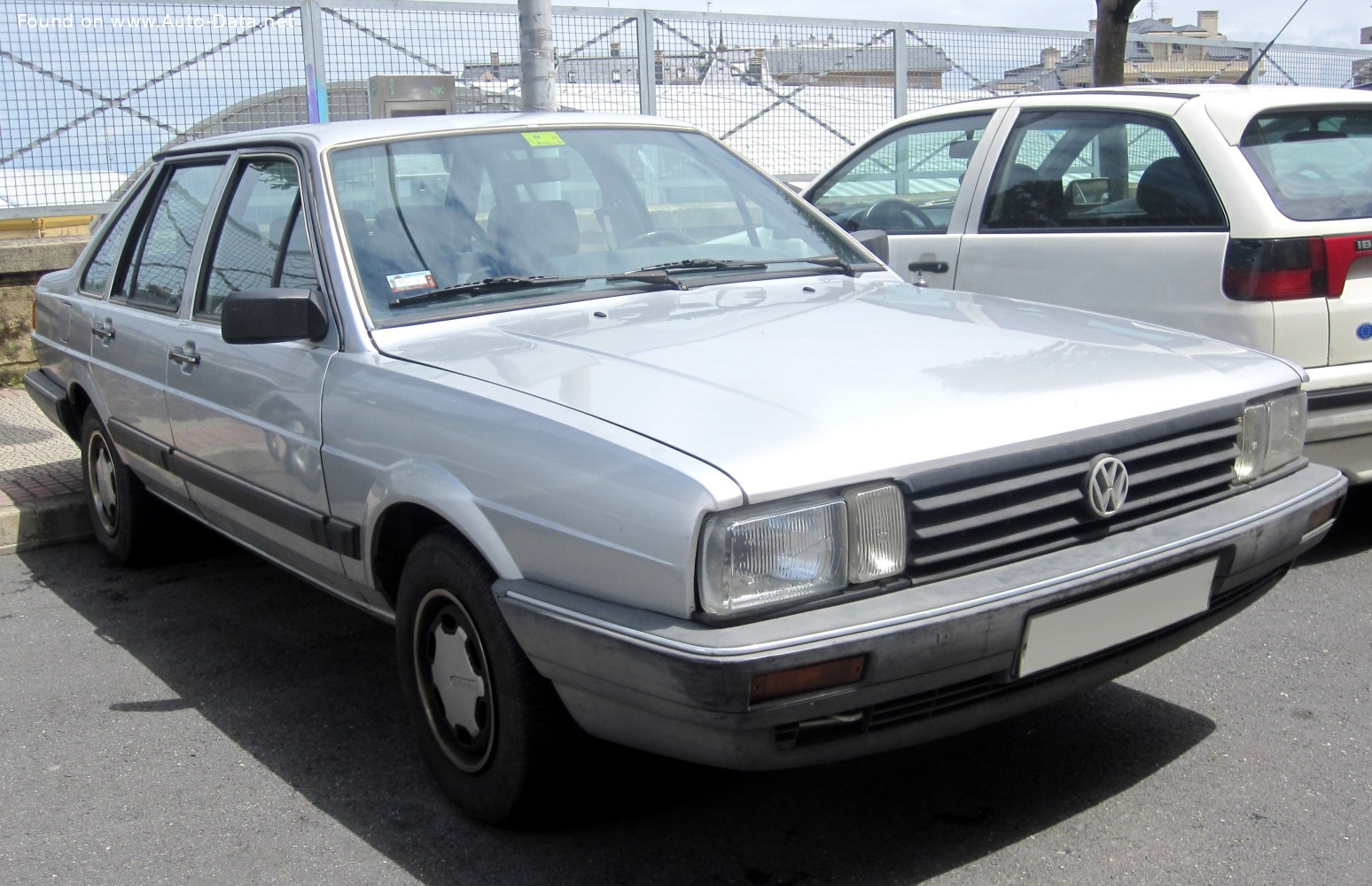

Volkswagen Santana (32B) 1.6 TD (70 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

Volkswagen Santana (32B) 1.6 TD (70 Hp) /Sedan 1982 - 1984/

What is the body type of Volkswagen Santana (32B)?

Sedan, 4 Doors, 5 Seats

How fast is 1982 Santana (32B) 1.6 TD (70 Hp)?

152 km/h | 94 mph
0-100 km/h: 16 sec
0-60 mph: 15.2 sec

What is the power output of Volkswagen Santana Sedan 1982 1.6 TD (70 Hp)?

70 Hp, 133 Nm
98 lb.-ft.

What is the engine displacement of Volkswagen Santana Sedan 1982 1.6 TD (70 Hp)?

1.6 l
1588 cm³
96.91 cu. in.

What is the number of cylinders in 1982 Volkswagen 1.6 TD (70 Hp)?

4, Inline

What is the drivetrain of Volkswagen Santana (32B) Sedan 1982 1.6 TD (70 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1982 Volkswagen Santana Sedan?

4545 mm
178.94 in.

What is the width of 1982 Volkswagen Santana Sedan?

1695 mm
66.73 in.

What is the kerb weight of 1982 Volkswagen Santana (32B) 1.6 TD (70 Hp)?

1007 kg
2220 lbs.

What is the maximum permissible mass of 1982 Volkswagen Santana (32B) 1.6 TD (70 Hp)?

1460 kg
3219 lbs.

What is the trunk (boot) capacity of 1982 Volkswagen Santana Sedan?

535 l
18.9 cu. ft.

What are the number of gears and the gearbox type of 1982 Volkswagen Santana (32B) 1.6 TD (70 Hp)?

4, manual transmission

Volkswagen
- Volkswagen Santana
  - Santana (32B)
    - 2.0 (115 Hp)
    - 1.9 (115 Hp)
    - 1.8 (90 Hp)
    - 1.6 TD (70 Hp)
    - 1.6 D (54 Hp)
    - 1.6 (85 Hp)
    - 1.6 (75 Hp)
    - 1.3 (60 Hp)

Compare

General information

Brand

Volkswagen

Model

Santana

Generation

Santana (32B)

Modification (Engine)

1.6 TD (70 Hp)

Start of production

August, 1982

End of production

December, 1984

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Volkswagen Santana on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

7.1 l/100 km 33.1 US mpg
39.8 UK mpg
14.1 km/l

Fuel consumption (economy) - extra urban

4.8 l/100 km 49 US mpg
58.9 UK mpg
20.8 km/l

Fuel Type

Diesel

Acceleration 0 - 100 km/h

16 sec

Acceleration 0 - 62 mph

16 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

15.2 sec

Maximum speed

152 km/h 94 mph

Weight-to-power ratio

14.4 kg/Hp, 69.5 Hp/tonne

Weight-to-torque ratio

7.6 kg/Nm, 132.1 Nm/tonne

Engine specs

Power

70 Hp @ 4500 rpm.

Power per litre

44.1 Hp/l

Torque

133 Nm @ 2600 rpm. 98 lb.-ft. @ 2600 rpm.

Engine layout

Front, Longitudinal

Engine displacement

1588 cm³ 96.91 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

76.5 mm 3.01 in.

Piston Stroke

86.4 mm 3.4 in.

Compression ratio

23:1

Number of valves per cylinder

Fuel injection system

Precombustion chamber injection

Engine aspiration

Turbocharger

Valvetrain

SOHC

Engine oil capacity

3.5 l 3.7 US qt | 3.08 UK qt

Engine oil specification

Volume and weights

Kerb Weight

1007 kg 2220 lbs.

Max. weight

1460 kg 3219 lbs.

Max load

453 kg 999 lbs.

Trunk (boot) space - minimum

535 l 18.9 cu. ft.

Fuel tank capacity

60 l 15.85 US gal | 13.2 UK gal

Max. roof load

75 kg 165 lbs.

Permitted trailer load with brakes (12%)

1000 kg 2205 lbs.

Permitted trailer load without brakes

500 kg 1102 lbs.

Dimensions

Length

4545 mm 178.94 in.

Width

1695 mm 66.73 in.

Height

1400 mm 55.12 in.

Wheelbase

2550 mm 100.39 in.

Front track

1400 mm 55.12 in.

Rear (Back) track

1408 mm 55.43 in.

Minimum turning circle (turning diameter)

10.7 m 35.1 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

4 gears, manual transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Trailing arm

Front brakes

Disc

Rear brakes

Drum

Steering type

Steering rack and pinion

Wheel rim size

5.5J x 13

Specs of Volkswagen Santana (32B) 1.6 TD (70 Hp) /1982, 1983, 1984/
