Volkswagen Polo IV (9N) Sedan 1.6 (101 Hp) | Technical specs, data, fuel consumption, Dimensions

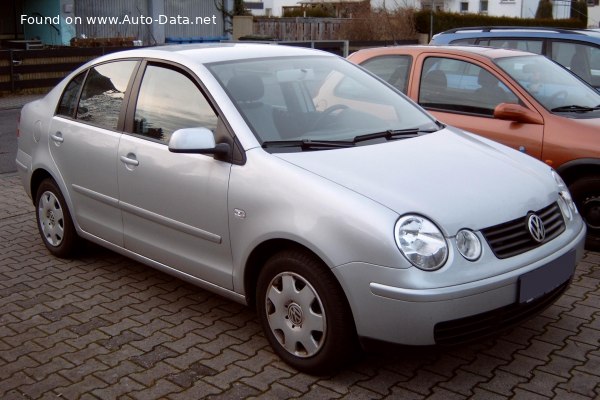

2004 Volkswagen Polo IV (9N) Sedan - Photo 1

Key specs

Volkswagen Polo IV (9N) Sedan 1.6 (101 Hp) /Sedan 2003 - 2005/

What is the body type of Volkswagen Polo IV (9N) Sedan?

Sedan, 4 Doors, 5 Seats

How fast is 2003 Polo IV (9N) Sedan 1.6 (101 Hp)?

185 km/h | 115 mph
0-100 km/h: 11.5 sec
0-60 mph: 10.9 sec

What is the power output of Volkswagen Polo Sedan 2003 1.6 (101 Hp)?

101 Hp, 140 Nm
103 lb.-ft.

What is the engine displacement of Volkswagen Polo Sedan 2003 1.6 (101 Hp)?

1.6 l
1599 cm³
97.58 cu. in.

What is the number of cylinders in 2003 Volkswagen 1.6 (101 Hp)?

4, Inline

What is the drivetrain of Volkswagen Polo IV (9N) Sedan Sedan 2003 1.6 (101 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2003 Volkswagen Polo Sedan?

4179 mm
164.53 in.

What is the width of 2003 Volkswagen Polo Sedan?

1650 mm
64.96 in.

What is the kerb weight of 2003 Volkswagen Polo IV (9N) Sedan 1.6 (101 Hp)?

1104 kg
2434 lbs.

What is the maximum permissible mass of 2003 Volkswagen Polo IV (9N) Sedan 1.6 (101 Hp)?

1620 kg
3571 lbs.

What is the trunk (boot) capacity of 2003 Volkswagen Polo Sedan?

432 l
15.3 cu. ft.

What is the number of gears in What is the gearbox type of 2003 Volkswagen Polo IV (9N) Sedan 1.6 (101 Hp)?

5, manual transmission

Volkswagen
- Volkswagen Polo
  - Polo IV (9N) Sedan
    - 2.0 (116 Hp)
    - 1.6 (101 Hp)

Compare

General information

Brand

Volkswagen

Model

Polo

Generation

Polo IV (9N) Sedan

Modification (Engine)

1.6 (101 Hp)

Start of production

October, 2003 year

End of production

2005 year

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Volkswagen Polo on the used-car market?

Check its history →

Performance specs

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

11.5 sec

Acceleration 0 - 62 mph

11.5 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

10.9 sec

Maximum speed

185 km/h 115 mph

Weight-to-power ratio

10.9 kg/Hp, 91.5 Hp/tonne

Weight-to-torque ratio

7.9 kg/Nm, 126.8 Nm/tonne

Engine specs

Power

101 Hp @ 5500 rpm.

Power per litre

63.2 Hp/l

Torque

140 Nm @ 3250 rpm. 103 lb.-ft. @ 3250 rpm.

Engine layout

Front, Transverse

Engine Model/Code

EA111

Engine displacement

1599 cm³ 97.58 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

76.5 mm 3.01 in.

Piston Stroke

86.9 mm 3.42 in.

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil specification

Volume and weights

Kerb Weight

1104 kg 2434 lbs.

Max. weight

1620 kg 3571 lbs.

Max load

516 kg 1138 lbs.

Trunk (boot) space - minimum

432 l 15.3 cu. ft.

Fuel tank capacity

45 l 11.89 US gal | 9.9 UK gal

Dimensions

Length

4179 mm 164.53 in.

Width

1650 mm 64.96 in.

Height

1484 mm 58.43 in.

Wheelbase

2464 mm 97.01 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Independent, McPherson type

Rear suspension

Torsion bar

Front brakes

Ventilated discs

Rear brakes

Drum

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tires size

185/60 R14; 195/55 R15

Wheel rims size

6J x 14; 6J x 15

Specs of Volkswagen Polo IV (9N) Sedan 1.6 (101 Hp) /2003, 2004, 2005/
