Volkswagen Passat Variant (B9) 1.5 TSI (272 Hp) eHybrid DSG | Technical specs, data, fuel consumption, Dimensions

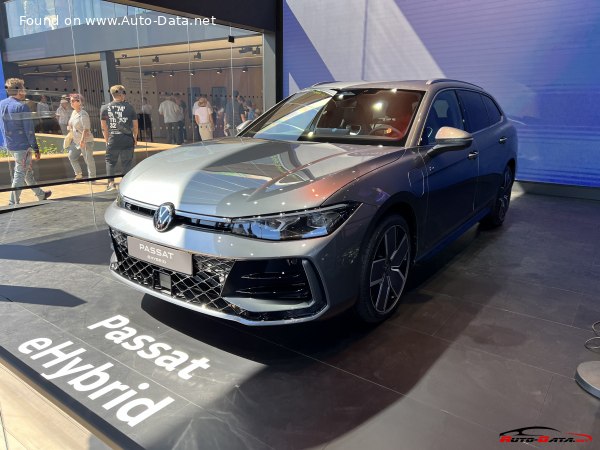

2024 Volkswagen Passat Variant (B9) - Photo 1

Key specs

Volkswagen Passat Variant (B9) 1.5 TSI (272 Hp) eHybrid DSG /Station wagon (estate) 2024 - /

What is the body type of Volkswagen Passat Variant (B9)?

Station wagon (estate), 5 Doors, 5 Seats

What is the fuel consumption and economy of Volkswagen Passat Variant (B9) 1.5 TSI (272 Hp) eHybrid DSG?

0.4 l/100 km
588 US mpg
706.2 UK mpg
250 km/l

How environmentally friendly is Volkswagen Passat 1.5 TSI (272 Hp) eHybrid DSG?

9 g/km CO₂
Euro 6 EA

What is the all-electric range of 1.5 TSI (272 Hp) eHybrid DSG?

124-131 km
77 - 81 mi

What is the electricity consumption of Volkswagen Passat Variant (B9) 1.5 TSI (272 Hp) eHybrid DSG?

16.2-16.7 kWh/100 km
26.07 - 26.88 kWh/100 mi
129 - 125 MPGe
6.2 - 6 km/kWh
3.8 - 3.7 mi/kWh

How fast is 2024 Passat Variant (B9) 1.5 TSI (272 Hp) eHybrid DSG?

225 km/h | 140 mph

What is the power output of Volkswagen Passat Station wagon (estate) 2024 1.5 TSI (272 Hp) eHybrid DSG?

272 Hp, 400 Nm
295 lb.-ft.

What is the engine displacement of Volkswagen Passat Station wagon (estate) 2024 1.5 TSI (272 Hp) eHybrid DSG?

1.5 l
1498 cm³
91.41 cu. in.

What is the number of cylinders in 2024 Volkswagen 1.5 TSI (272 Hp) eHybrid DSG?

4, Inline

What is the drivetrain of Volkswagen Passat Variant (B9) Station wagon (estate) 2024 1.5 TSI (272 Hp) eHybrid DSG?

Front wheel drive. PHEV (Plug-in Hybrid Electric Vehicle). The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.

What is the length of 2024 Volkswagen Passat Station wagon (estate)?

4917 mm
193.58 in.

What is the width of 2024 Volkswagen Passat Station wagon (estate)?

1849 mm
72.8 in.

What is the kerb weight of 2024 Volkswagen Passat Variant (B9) 1.5 TSI (272 Hp) eHybrid DSG?

1780 kg
3924 lbs.

What is the maximum permissible mass of 2024 Volkswagen Passat Variant (B9) 1.5 TSI (272 Hp) eHybrid DSG?

2360 kg
5203 lbs.

What are the number of gears and the gearbox type of 2024 Volkswagen Passat Variant (B9) 1.5 TSI (272 Hp) eHybrid DSG?

6, automatic transmission DSG

Volkswagen
- Volkswagen Passat
  - Passat Variant (B9)
    - 2.0 TSI (265 Hp) 4MOTION DSG
    - 2.0 TSI (204 Hp) DSG
    - 2.0 TDI (193 Hp) 4MOTION DSG
    - 2.0 TDI (150 Hp) DSG
    - 2.0 TDI (122 Hp) DSG
    - 1.5 TSI (272 Hp) eHybrid DSG
    - 1.5 TSI (204 Hp) eHybrid DSG
    - 1.5 eTSI (150 Hp) Mild Hybrid DSG

Compare

General information

Brand

Volkswagen

Model

Passat

Generation

Passat Variant (B9)

Modification (Engine)

1.5 TSI (272 Hp) eHybrid DSG

Start of production

March, 2024

Powertrain Architecture

PHEV (Plug-in Hybrid Electric Vehicle)

Body type

Station wagon (estate)

Seats

Doors

Looking for Volkswagen Passat on the used-car market?

Check its history →

Performance specs

Combined fuel consumption (WLTP)

0.4 l/100 km 588 US mpg
706.2 UK mpg
250 km/l

CO₂ emissions (WLTP)

9 g/km

Fuel Type

Petrol / electricity

Maximum speed

225 km/h 140 mph

Emission standard

Euro 6 EA

Weight-to-power ratio

6.5 kg/Hp, 152.8 Hp/tonne

Weight-to-torque ratio

4.5 kg/Nm, 224.7 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

25.7 kWh

Net (usable) battery capacity

19.7 kWh

Battery technology

Lithium nickel manganese cobalt oxides (Li-NMC)

Battery location

Below the floor, under the rear seats

Electric range (WLTP)

124-131 km 77 - 81 mi

Average Energy consumption (WLTP)

16.2-16.7 kWh/100 km 26.07 - 26.88 kWh/100 mi
129 - 125 MPGe
6.2 - 6 km/kWh
3.8 - 3.7 mi/kWh

Charging ports

Electric motor 1

Electric motor power

115 Hp

Electric motor Torque

330 Nm 243 lb.-ft.

Electric motor model/code

HEM80evo

Electric motor location

Between the combustion engine and the transmission

Electric motor type

Synchronous

System power

272 Hp

System torque

400 Nm 295 lb.-ft.

Internal combustion engine specs

Power

177 Hp @ 5500-6000 rpm.

Power per litre

118.2 Hp/l

Torque

250 Nm @ 1500-4000 rpm. 184 lb.-ft. @ 1500-4000 rpm.

Engine layout

Front, Transverse

Engine Model/Code

EA211 evo2 / DUCA

Engine displacement

1498 cm³ 91.41 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

74.5 mm 2.93 in.

Piston Stroke

85.9 mm 3.38 in.

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

4.3 l 4.54 US qt | 3.78 UK qt

Engine oil specification

Engine systems

Start & Stop System
Particulate filter

Volume and weights

Kerb Weight

1780 kg 3924 lbs.

Max. weight

2360 kg 5203 lbs.

Max load

580 kg 1279 lbs.

Fuel tank capacity

45 l 11.89 US gal | 9.9 UK gal

Max. roof load

100 kg 220 lbs.

Permitted trailer load with brakes (8%)

2000 kg 4409 lbs.

Permitted trailer load with brakes (12%)

2000 kg 4409 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Permitted towbar download

90 kg 198 lbs.

Dimensions

Length

4917 mm 193.58 in.

Width

1849 mm 72.8 in.

Width including mirrors

2090 mm 82.28 in.

Height

1521 mm 59.88 in.

Wheelbase

2839 mm 111.77 in.

Front track

1577-1585 mm 62.09 - 62.4 in.

Rear (Back) track

1560-1574 mm 61.42 - 61.97 in.

Minimum turning circle (turning diameter)

12 m 39.37 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, automatic transmission DSG

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

215/55 R17; 235/45 R18; 235/40 R19

Wheel rim size

7.5J x 17; 8J x 18; 8J x 19

Specs of Volkswagen Passat Variant (B9) 1.5 TSI (272 Hp) eHybrid DSG /2024, 2025, 2026/
