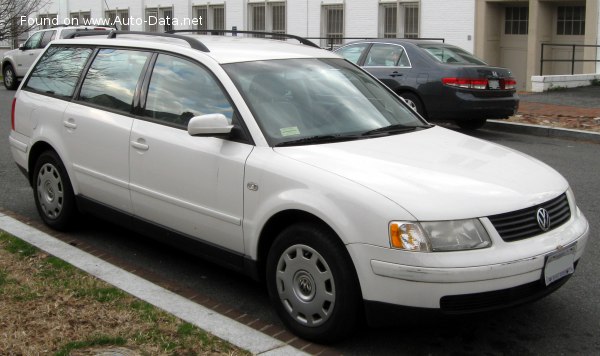

Volkswagen Passat Variant (B5) 1.8 T 20V (150 Hp) Automatic

Volkswagen Passat Variant (B5) 1.8 T 20V (150 Hp) Automatic - Technical Specs, Fuel consumption, Dimensions

Key specs

Volkswagen Passat Station wagon (estate) 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

What is the body type?Station wagon (estate), 5 Doors, 5 Seats
What is the fuel economy?7.1 l/100 km
33.13 US mpg
39.79 UK mpg
How fast is?211 km/h | 131.11 mph
10.3 sec 0-100 km/h
9.8 sec 0-60 mph
How much power?150 hp, 210 Nm
154.89 lb.-ft.
What is the engine size?1.8 l
1781 cm3
108.68 cu. in.
How many cylinders?4, Inline
What is the drivetrain?Front wheel drive
How long is this vehicle?4675 mm
184.06 in.
How wide is the vehicle?1740 mm
68.5 in.
What is the curb weigh?1385 kg
3053.4 lbs.
What is the gross weigh?1960 kg
4321.06 lbs.
How much trunk (boot) space?495 - 1600 l
365.09 - 1180.1 lb.-ft.
How many gears?4
What type is the gearbox?automatic transmission
Volkswagen Passat Variant (B5) 1.8 T 20V (150 Hp) Automatic - Technical Specs, Fuel consumption, Dimensions

Volkswagen Passat Variant (B5) 1.8 T 20V (150 Hp) Automatic 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 Specs

General information

BrandVolkswagen
Model Passat
Generation Passat Variant (B5)
Modification (Engine) 1.8 T 20V (150 Hp) Automatic
Start of production 1997 year
End of production 2005 year
Body type Station wagon (estate)
Seats 5
Doors 5

Performance specs

Fuel consumption (economy) - urban 13.3 l/100 km 17.69 US mpg
21.24 UK mpg
Fuel consumption (economy) - extra urban 7.1 l/100 km 33.13 US mpg
39.79 UK mpg
Fuel Type Petrol (Gasoline)
Acceleration 0 - 100 km/h 10.3 sec
0 - 60 mph (Calculated by Auto-Data.net) 9.8 sec
Maximum speed 211 km/h 131.11 mph

Engine specs

Power 150 hp @ 5700 rpm.
Torque 210 Nm @ 1750 rpm. 154.89 lb.-ft. @ 1750 rpm.
Engine location Front, Longitudinal
Engine displacement 1781 cm3 108.68 cu. in.
Number of cylinders 4
Position of cylinders Inline
Cylinder Bore 81 mm 3.19 in.
Piston Stroke 86.4 mm 3.4 in.
Compression ratio 9.5
Number of valves per cylinder 5
Fuel System Multi-point indirect injection
Turbine Turbocharger
Valvetrain DOHC

Space, Volume and weights

Kerb Weight 1385 kg 3053.4 lbs.
Max. weight 1960 kg 4321.06 lbs.
Trunk (boot) space - minimum 495 l 17.48 cu. ft.
Trunk (boot) space - maximum 1600 l 56.5 cu. ft.
Fuel tank capacity 62 l 16.38 US gal | 13.64 UK gal

Dimensions

Length 4675 mm 184.06 in.
Width 1740 mm 68.5 in.
Height 1459 mm 57.44 in.
Wheelbase 2703 mm 106.42 in.
Front track 1498 mm 58.98 in.
Rear (Back) track 1500 mm 59.06 in.

Drivetrain, brakes and suspension specs

Drive wheel Front wheel drive
Number of Gears (automatic transmission) 4
Front suspension Helical spring
Rear suspension Helical spring
Front brakesVentilated discs
Rear brakesDisc
ABS yes
Steering type Steering rack
Power steering Hydraulic Steering
Tires size 195/65 R15
Wheel rims size 6J x 15
