Volkswagen Jetta VI (facelift 2014) 1.4 TSI (170 Hp) Hybrid DSG | Technical specs, data, fuel consumption, Dimensions

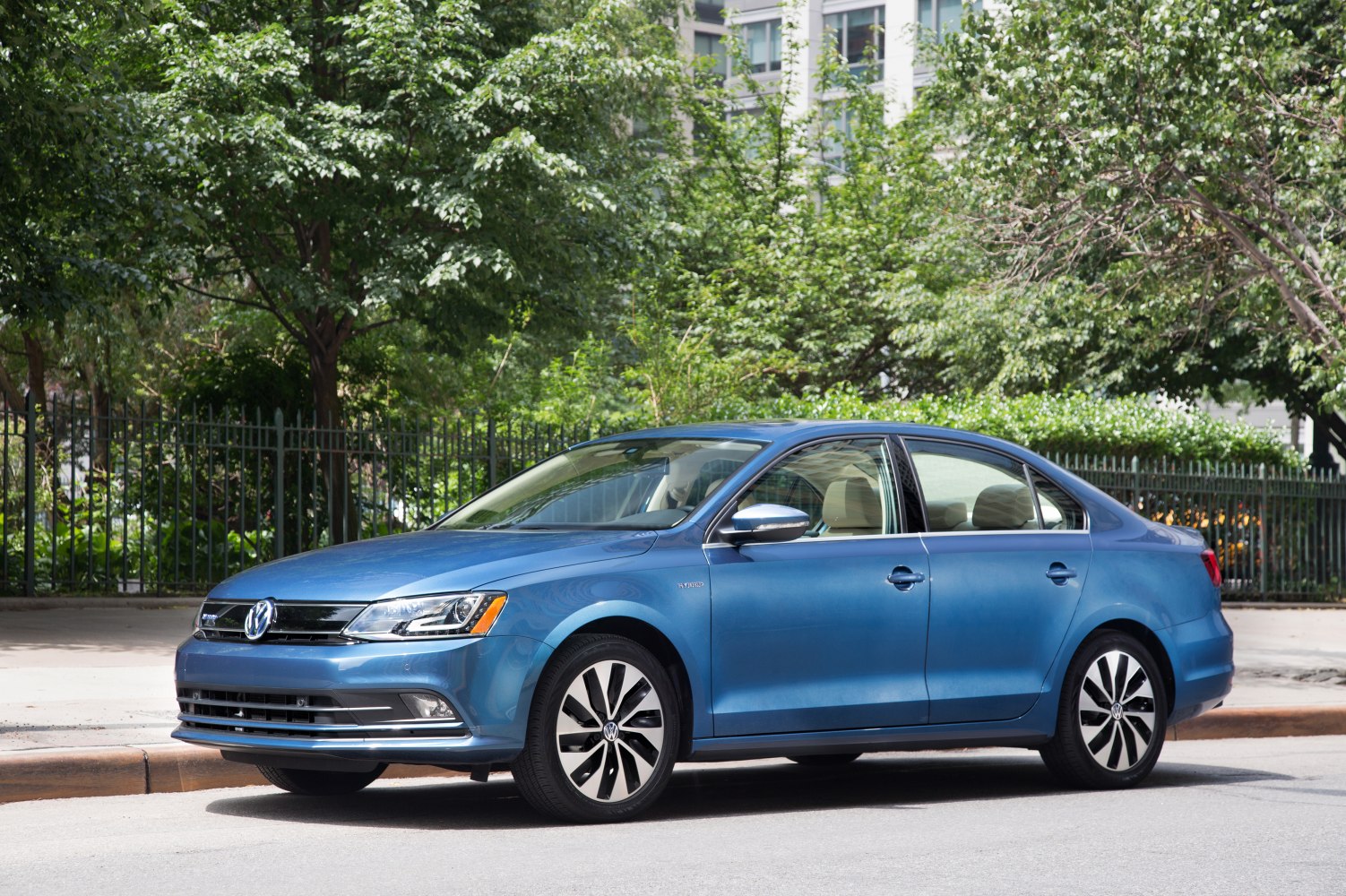

2014 Volkswagen Jetta VI (facelift 2014) - Photo 1

Key specs

Volkswagen Jetta VI (facelift 2014) 1.4 TSI (170 Hp) Hybrid DSG /Sedan 2014 - 2016/

What is the body type of Volkswagen Jetta VI (facelift 2014)?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Volkswagen Jetta VI (facelift 2014) 1.4 TSI (170 Hp) Hybrid DSG?

4.1 l/100 km
57.4 US mpg
68.9 UK mpg
24.4 km/l

How environmentally friendly is Volkswagen Jetta 1.4 TSI (170 Hp) Hybrid DSG?

95 g/km CO₂
Euro 6

What is the all-electric range of 1.4 TSI (170 Hp) Hybrid DSG?

1.6 km
1 mi

How fast is 2014 Jetta VI (facelift 2014) 1.4 TSI (170 Hp) Hybrid DSG?

210 km/h | 130 mph
0-100 km/h: 8.6 sec
0-60 mph: 8.2 sec

What is the power output of Volkswagen Jetta Sedan 2014 1.4 TSI (170 Hp) Hybrid DSG?

170 Hp, 250 Nm
184 lb.-ft.

What is the engine displacement of Volkswagen Jetta Sedan 2014 1.4 TSI (170 Hp) Hybrid DSG?

1.4 l
1395 cm³
85.13 cu. in.

What is the number of cylinders in 2014 Volkswagen 1.4 TSI (170 Hp) Hybrid DSG?

4, Inline

What is the drivetrain of Volkswagen Jetta VI (facelift 2014) Sedan 2014 1.4 TSI (170 Hp) Hybrid DSG?

Front wheel drive. FHEV (Full Hybrid Electric Vehicle). The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.

What is the length of 2014 Volkswagen Jetta Sedan?

4659 mm
183.43 in.

What is the width of 2014 Volkswagen Jetta Sedan?

1778 mm
70 in.

What is the kerb weight of 2014 Volkswagen Jetta VI (facelift 2014) 1.4 TSI (170 Hp) Hybrid DSG?

1430-1547 kg
3153 - 3411 lbs.

What is the maximum permissible mass of 2014 Volkswagen Jetta VI (facelift 2014) 1.4 TSI (170 Hp) Hybrid DSG?

2010-2020 kg
4431 - 4453 lbs.

What is the trunk (boot) capacity of 2014 Volkswagen Jetta Sedan?

374 l
13.2 cu. ft.

What are the number of gears and the gearbox type of 2014 Volkswagen Jetta VI (facelift 2014) 1.4 TSI (170 Hp) Hybrid DSG?

7, automatic transmission DSG

Volkswagen
- Volkswagen Jetta
  - Jetta VI (facelift 2014)

Compare

General information

Brand

Volkswagen

Model

Jetta

Generation

Jetta VI (facelift 2014)

Modification (Engine)

1.4 TSI (170 Hp) Hybrid DSG

Start of production

2014

End of production

2016

Powertrain Architecture

FHEV (Full Hybrid Electric Vehicle)

Body type

Sedan

Seats

Doors

Looking for Volkswagen Jetta on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban (NEDC)

4.4 l/100 km 53.5 US mpg
64.2 UK mpg
22.7 km/l

Fuel consumption (economy) - extra urban (NEDC)

3.9 l/100 km 60.3 US mpg
72.4 UK mpg
25.6 km/l

Fuel consumption (economy) - combined (NEDC)

4.1 l/100 km 57.4 US mpg
68.9 UK mpg
24.4 km/l

CO₂ emissions (NEDC)

95 g/km

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

8.6 sec

Acceleration 0 - 62 mph

8.6 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

8.2 sec

Maximum speed

210 km/h 130 mph

Emission standard

Euro 6

Weight-to-power ratio

8.4 kg/Hp, 118.9 Hp/tonne

Weight-to-torque ratio

5.7 kg/Nm, 174.8 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

1.1 kWh

Battery voltage

220 V

Battery technology

Lithium-ion (Li-Ion)

Battery weight

53 kg 117 lbs.

Battery location

Under the trunk

Electric range (NEDC)

1.6 km 1 mi

Max speed (electric)

71 km/h 44 mph

Electric motor 1

Electric motor power

27 Hp @ 2500 rpm.

Electric motor Torque

155 Nm 114 lb.-ft.

Electric motor location

Between the combustion engine and the transmission

System power

170 Hp @ 5000 rpm.

System torque

250 Nm @ 1000 rpm. 184 lb.-ft. @ 1000 rpm.

Internal combustion engine specs

Power

150 Hp @ 5000-6000 rpm.

Power per litre

107.5 Hp/l

Torque

250 Nm @ 1600-3500 rpm. 184 lb.-ft. @ 1600-3500 rpm.

Engine layout

Front, Transverse

Engine Model/Code

EA211 / CNLA, CRJA

Engine displacement

1395 cm³ 85.13 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

74.5 mm 2.93 in.

Piston Stroke

80 mm 3.15 in.

Compression ratio

10.5:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

4 l 4.23 US qt | 3.52 UK qt

Engine oil specification

Coolant

8 l 8.45 US qt | 7.04 UK qt

Engine systems

Start & Stop System

Volume and weights

Kerb Weight

1430-1547 kg 3153 - 3411 lbs.

Max. weight

2010-2020 kg 4431 - 4453 lbs.

Max load

473-580 kg 1043 - 1279 lbs.

Trunk (boot) space - minimum

374 l 13.2 cu. ft.

Fuel tank capacity

45 l 11.89 US gal | 9.9 UK gal

Max. roof load

75 kg 165 lbs.

Dimensions

Length

4659 mm 183.43 in.

Width

1778 mm 70 in.

Width including mirrors

2020 mm 79.53 in.

Height

1482 mm 58.35 in.

Wheelbase

2651 mm 104.37 in.

Front track

1535-1541 mm 60.43 - 60.67 in.

Rear (Back) track

1538-1547 mm 60.55 - 60.91 in.

Ride height (ground clearance)

138 mm 5.43 in.

Drag coefficient (C_d)

0.28

Minimum turning circle (turning diameter)

11.1 m 36.42 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

7 gears, automatic transmission DSG

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Ventilated discs, 287x25 mm

Rear brakes

Disc, 272x10 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

205/50 R17; 225/45 R17

Wheel rim size

6J x 17; 7J x 17

Specs of Volkswagen Jetta VI (facelift 2014) 1.4 TSI (170 Hp) Hybrid DSG /2014, 2015, 2016/
