Volkswagen Jetta VI 2.5 (170 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

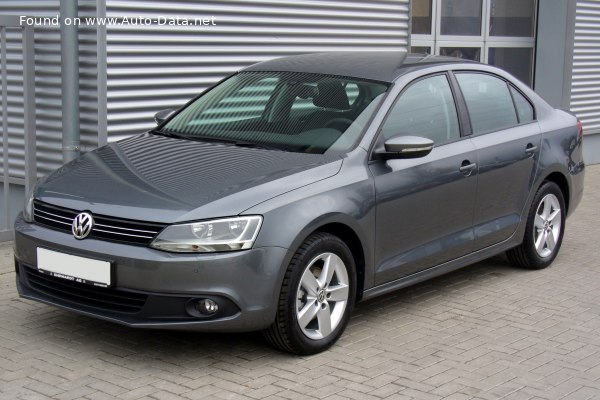

Volkswagen Jetta VI 2.5 (170 Hp) /Sedan 2010 - 2014/

What is the body type of Volkswagen Jetta VI?

Sedan, 4 Doors, 5 Seats

What is the power output of Volkswagen Jetta Sedan 2010 2.5 (170 Hp)?

170 Hp, 240 Nm
177 lb.-ft.

What is the engine displacement of Volkswagen Jetta Sedan 2010 2.5 (170 Hp)?

2.5 l
2480 cm³
151.34 cu. in.

What is the number of cylinders in 2010 Volkswagen 2.5 (170 Hp)?

5, Inline

What is the drivetrain of Volkswagen Jetta VI Sedan 2010 2.5 (170 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2010 Volkswagen Jetta Sedan?

4628 mm
182.2 in.

What is the width of 2010 Volkswagen Jetta Sedan?

1778 mm
70 in.

What is the kerb weight of 2010 Volkswagen Jetta VI 2.5 (170 Hp)?

1369 kg
3018 lbs.

What is the maximum permissible mass of 2010 Volkswagen Jetta VI 2.5 (170 Hp)?

1880 kg
4145 lbs.

What is the trunk (boot) capacity of 2010 Volkswagen Jetta Sedan?

440 l
15.5 cu. ft.

What are the number of gears and the gearbox type of 2010 Volkswagen Jetta VI 2.5 (170 Hp)?

5, manual transmission

Compare

General information

Brand

Volkswagen

Model

Jetta

Generation

Jetta VI

Modification (Engine)

2.5 (170 Hp)

Start of production

2010

End of production

2014

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Volkswagen Jetta on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban (EPA)

10.2 l/100 km 23.1 US mpg
27.7 UK mpg
9.8 km/l

Fuel consumption (economy) - extra urban (EPA)

7.1 l/100 km 33.1 US mpg
39.8 UK mpg
14.1 km/l

Fuel Type

Petrol (Gasoline)

Weight-to-power ratio

8.1 kg/Hp, 124.2 Hp/tonne

Weight-to-torque ratio

5.7 kg/Nm, 175.3 Nm/tonne

Engine specs

Power

170 Hp @ 5700 rpm.

Power per litre

68.5 Hp/l

Torque

240 Nm @ 4250 rpm. 177 lb.-ft. @ 4250 rpm.

Engine layout

Front, Transverse

Engine Model/Code

CBTA, CBUA

Engine displacement

2480 cm³ 151.34 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

82.5 mm 3.25 in.

Piston Stroke

92.8 mm 3.65 in.

Compression ratio

9.5:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

6 l 6.34 US qt | 5.28 UK qt

Engine oil specification

Coolant

9 l 9.51 US qt | 7.92 UK qt

Volume and weights

Kerb Weight

1369 kg 3018 lbs.

Max. weight

1880 kg 4145 lbs.

Max load

511 kg 1127 lbs.

Trunk (boot) space - minimum

440 l 15.5 cu. ft.

Fuel tank capacity

55 l 14.53 US gal | 12.1 UK gal

Dimensions

Length

4628 mm 182.2 in.

Width

1778 mm 70 in.

Height

1453 mm 57.2 in.

Wheelbase

2651 mm 104.37 in.

Front track

1535 mm 60.43 in.

Rear (Back) track

1532 mm 60.31 in.

Ride height (ground clearance)

139 mm 5.47 in.

Drag coefficient (C_d)

0.30

Minimum turning circle (turning diameter)

11.1 m 36.42 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Coil spring, Torsion bar

Front brakes

Ventilated discs, 287x25 mm

Rear brakes

Disc, 272x10 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

205/55 R16; 225/45 R17

Wheel rim size

6.5J x 16; 7J x 17

Specs of Volkswagen Jetta VI 2.5 (170 Hp) /2010, 2011, 2012, 2013, 2014/
