Specs of Volkswagen Golf VI (5-door) 1.4 TSI (160 Hp) /2008, 2009, 2010, 2011, 2012/

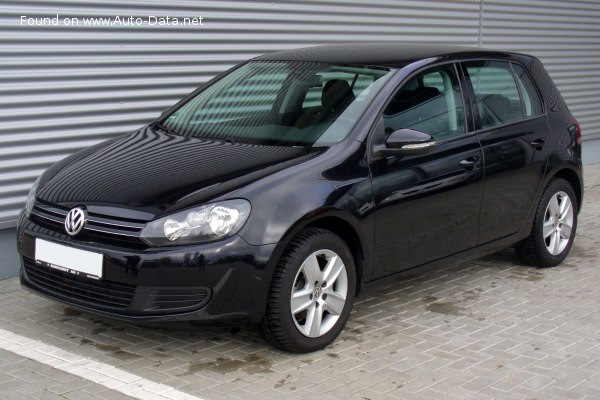

2009 Volkswagen Golf VI (5-door) - Photo 1
Volkswagen Golf VI (5-door) - Photo 2Volkswagen Golf VI (5-door) - Photo 3Volkswagen Golf VI (5-door) - Photo 4

Key specs

Volkswagen Golf VI (5-door) 1.4 TSI (160 Hp) /Hatchback 2008 - 2012/

What is the body type of Volkswagen Golf VI (5-door)?
Hatchback, 5 Doors, 5 Seats
What is the fuel consumption and economy of Volkswagen Golf VI (5-door) 1.4 TSI (160 Hp)?
6.3 l/100 km
37.3 US mpg
44.8 UK mpg
15.9 km/l
How environmentally friendly is Volkswagen Golf 1.4 TSI (160 Hp)?
145 g/km CO2
Euro 5
How fast is 2008 Golf VI (5-door) 1.4 TSI (160 Hp)?
220 km/h | 137 mph
0-100 km/h: 8 sec
0-60 mph: 7.6 sec
What is the power output of Volkswagen Golf Hatchback 2008 1.4 TSI (160 Hp)?
160 Hp, 240 Nm
177 lb.-ft.
What is the engine displacement of Volkswagen Golf Hatchback 2008 1.4 TSI (160 Hp)?
1.4 l
1390 cm3
84.82 cu. in.
What is the number of cylinders in 2008 Volkswagen 1.4 TSI (160 Hp)?
4, Inline
What is the drivetrain of Volkswagen Golf VI (5-door) Hatchback 2008 1.4 TSI (160 Hp)?
Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
What is the length of 2008 Volkswagen Golf Hatchback?
4199 mm
165.31 in.
What is the width of 2008 Volkswagen Golf Hatchback?
1786 mm
70.31 in.
What is the kerb weight of 2008 Volkswagen Golf VI (5-door) 1.4 TSI (160 Hp)?
1271 kg
2802 lbs.
What is the maximum permissible mass of 2008 Volkswagen Golf VI (5-door) 1.4 TSI (160 Hp)?
1840 kg
4057 lbs.
What is the trunk (boot) capacity of 2008 Volkswagen Golf Hatchback?
350 - 1305 l
12.4 - 46.1 cu. ft.
What is the number of gears in What is the gearbox type of 2008 Volkswagen Golf VI (5-door) 1.4 TSI (160 Hp)?
6, manual transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Volkswagen
Model
Golf
Generation
Golf VI (5-door)
Modification (Engine)
1.4 TSI (160 Hp)
Start of production
2008 year
End of production
2012 year
Powertrain Architecture
Internal Combustion engine
Body type
Hatchback
Seats
5
Doors
5
Looking for Volkswagen Golf on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban (NEDC)
8.1 l/100 km 29 US mpg
34.9 UK mpg
12.3 km/l
Fuel consumption (economy) - extra urban (NEDC)
5.2 l/100 km 45.2 US mpg
54.3 UK mpg
19.2 km/l
Fuel consumption (economy) - combined (NEDC)
6.3 l/100 km 37.3 US mpg
44.8 UK mpg
15.9 km/l
CO2 emissions (NEDC)
145 g/km
Fuel Type
Petrol (Gasoline)
Acceleration 0 - 100 km/h
8 sec
Acceleration 0 - 62 mph
8 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
7.6 sec
Maximum speed
220 km/h 137 mph
Emission standard
Euro 5
Weight-to-power ratio
7.9 kg/Hp, 125.9 Hp/tonne
Weight-to-torque ratio
5.3 kg/Nm, 188.8 Nm/tonne

Engine specs

Power
160 Hp @ 5800 rpm.
Power per litre
115.1 Hp/l
Torque
240 Nm @ 1500-4500 rpm. 177 lb.-ft. @ 1500-4500 rpm.
Engine layout
Front, Transverse
Engine Model/Code
CAVD, CTHD, CTKA
Engine displacement
1390 cm3 84.82 cu. in.
Number of cylinders
4
Engine configuration
Inline
Cylinder Bore
76.5 mm 3.01 in.
Piston Stroke
75.6 mm 2.98 in.
Compression ratio
10:1
Number of valves per cylinder
4
Fuel injection system
Direct injection
Engine aspiration
Turbocharger and supercharger, Intercooler
Valvetrain
DOHC
Engine oil capacity
3.6 l 3.8 US qt | 3.17 UK qt
Engine oil specification
Log in to see.Log in to see.

Volume and weights

Kerb Weight
1271 kg 2802 lbs.
Max. weight
1840 kg 4057 lbs.
Max load
569 kg 1254 lbs.
Trunk (boot) space - minimum
350 l 12.4 cu. ft.
Trunk (boot) space - maximum
1305 l 46.1 cu. ft.
Fuel tank capacity
55 l 14.53 US gal | 12.1 UK gal
Max. roof load
75 kg 165 lbs.
Permitted trailer load with brakes (12%)
1400 kg 3086 lbs.
Permitted trailer load without brakes
670 kg 1477 lbs.
Permitted towbar download
75 kg 165 lbs.

Dimensions

Length
4199 mm 165.31 in.
Width
1786 mm 70.31 in.
Width including mirrors
2048 mm 80.63 in.
Height
1480 mm 58.27 in.
Wheelbase
2578 mm 101.5 in.
Front track
1541 mm 60.67 in.
Rear (Back) track
1514 mm 59.61 in.
Ride height (ground clearance)
150 mm 5.91 in.
Minimum turning circle (turning diameter)
10.9 m 35.76 ft.
Approach angle
13.1°
Departure angle
17.6°
Ramp-over (brakeover) angle
8.8°

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel
Front wheel drive
Number of gears and type of gearbox
6 gears, manual transmission
Front suspension
Independent, McPherson type, Anti-roll bar
Rear suspension
Independent multi-link suspension, Anti-roll bar
Front brakes
Ventilated discs
Rear brakes
Disc
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tires size
205/55 R 16
Wheel rims size
6.5J x 16
