Volkswagen Golf III Cabrio 1.8 i (75 Hp) | Technical specs, data, fuel consumption, Dimensions

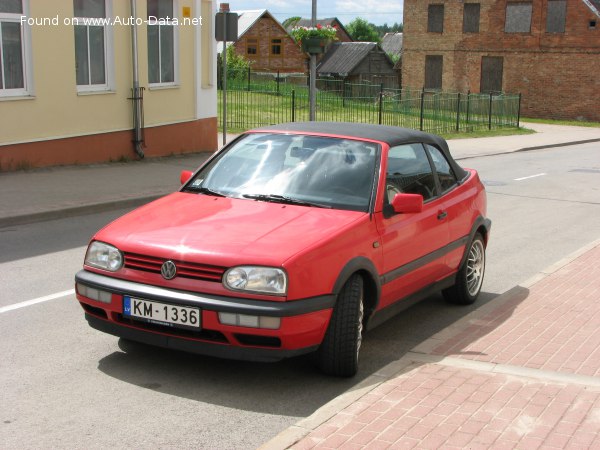

1994 Volkswagen Golf III Cabrio - Photo 1

Key specs

Volkswagen Golf III Cabrio 1.8 i (75 Hp) /Cabriolet 1993 - 1998/

What is the body type of Volkswagen Golf III Cabrio?

Cabriolet, 2 Doors, 4 Seats

What is the fuel consumption and economy of Volkswagen Golf III Cabrio 1.8 i (75 Hp)?

7.5 l/100 km
31.4 US mpg
37.7 UK mpg
13.3 km/l

How fast is 1993 Golf III Cabrio 1.8 i (75 Hp)?

160 km/h | 99 mph
0-100 km/h: 15.5 sec
0-60 mph: 14.7 sec

What is the power output of Volkswagen Golf Cabriolet 1993 1.8 i (75 Hp)?

75 Hp, 140 Nm
103 lb.-ft.

What is the engine displacement of Volkswagen Golf Cabriolet 1993 1.8 i (75 Hp)?

1.8 l
1781 cm³
108.68 cu. in.

What is the number of cylinders in 1993 Volkswagen 1.8 i (75 Hp)?

4, Inline

What is the drivetrain of Volkswagen Golf III Cabrio Cabriolet 1993 1.8 i (75 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1993 Volkswagen Golf Cabriolet?

4020 mm
158.27 in.

What is the width of 1993 Volkswagen Golf Cabriolet?

1695 mm
66.73 in.

What is the kerb weight of 1993 Volkswagen Golf III Cabrio 1.8 i (75 Hp)?

1230 kg
2712 lbs.

What is the maximum permissible mass of 1993 Volkswagen Golf III Cabrio 1.8 i (75 Hp)?

1580 kg
3483 lbs.

What is the trunk (boot) capacity of 1993 Volkswagen Golf Cabriolet?

270 - 448 l
9.5 - 15.8 cu. ft.

What are the number of gears and the gearbox type of 1993 Volkswagen Golf III Cabrio 1.8 i (75 Hp)?

5, manual transmission

Volkswagen
- Volkswagen Golf
  - Golf III Cabrio
    - 2.0i (115 Hp)
    - 1.9 TDI (90 Hp)
    - 1.8 i (90 Hp)
    - 1.8 i (75 Hp)
    - 1.6i (101 Hp)
    - 1.6i (101 Hp)

Compare

General information

Brand

Volkswagen

Model

Golf

Generation

Golf III Cabrio

Modification (Engine)

1.8 i (75 Hp)

Start of production

1993

End of production

1998

Powertrain Architecture

Internal Combustion engine

Body type

Cabriolet

Seats

Doors

Looking for Volkswagen Golf on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined

7.5 l/100 km 31.4 US mpg
37.7 UK mpg
13.3 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

15.5 sec

Acceleration 0 - 62 mph

15.5 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

14.7 sec

Maximum speed

160 km/h 99 mph

Weight-to-power ratio

16.4 kg/Hp, 61 Hp/tonne

Weight-to-torque ratio

8.8 kg/Nm, 113.8 Nm/tonne

Engine specs

Power

75 Hp @ 5000 rpm.

Power per litre

42.1 Hp/l

Torque

140 Nm @ 2500 rpm. 103 lb.-ft. @ 2500 rpm.

Engine layout

Front, Transverse

Engine Model/Code

AAM

Engine displacement

1781 cm³ 108.68 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

81 mm 3.19 in.

Piston Stroke

86.4 mm 3.4 in.

Compression ratio

9:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

OHC

Engine oil capacity

3.8 l 4.02 US qt | 3.34 UK qt

Engine oil specification

Coolant

5.5 l 5.81 US qt | 4.84 UK qt

Volume and weights

Kerb Weight

1230 kg 2712 lbs.

Max. weight

1580 kg 3483 lbs.

Max load

350 kg 772 lbs.

Trunk (boot) space - minimum

270 l 9.5 cu. ft.

Trunk (boot) space - maximum

448 l 15.8 cu. ft.

Fuel tank capacity

55 l 14.53 US gal | 12.1 UK gal

Dimensions

Length

4020 mm 158.27 in.

Width

1695 mm 66.73 in.

Height

1400 mm 55.12 in.

Wheelbase

2475 mm 97.44 in.

Front track

1464 mm 57.64 in.

Rear (Back) track

1428 mm 56.22 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Suspension strut

Rear suspension

Suspension strut

Front brakes

Disc

Rear brakes

Drum

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

185/60 R14 H

Wheel rim size

Specs of Volkswagen Golf III Cabrio 1.8 i (75 Hp) /1993, 1994, 1995, 1996, 1997, 1998/
