Specs of Volkswagen Caddy IV 1.4 TGI (110 Hp) CNG DSG /2015, 2016, 2017, 2018, 2019, 2020/

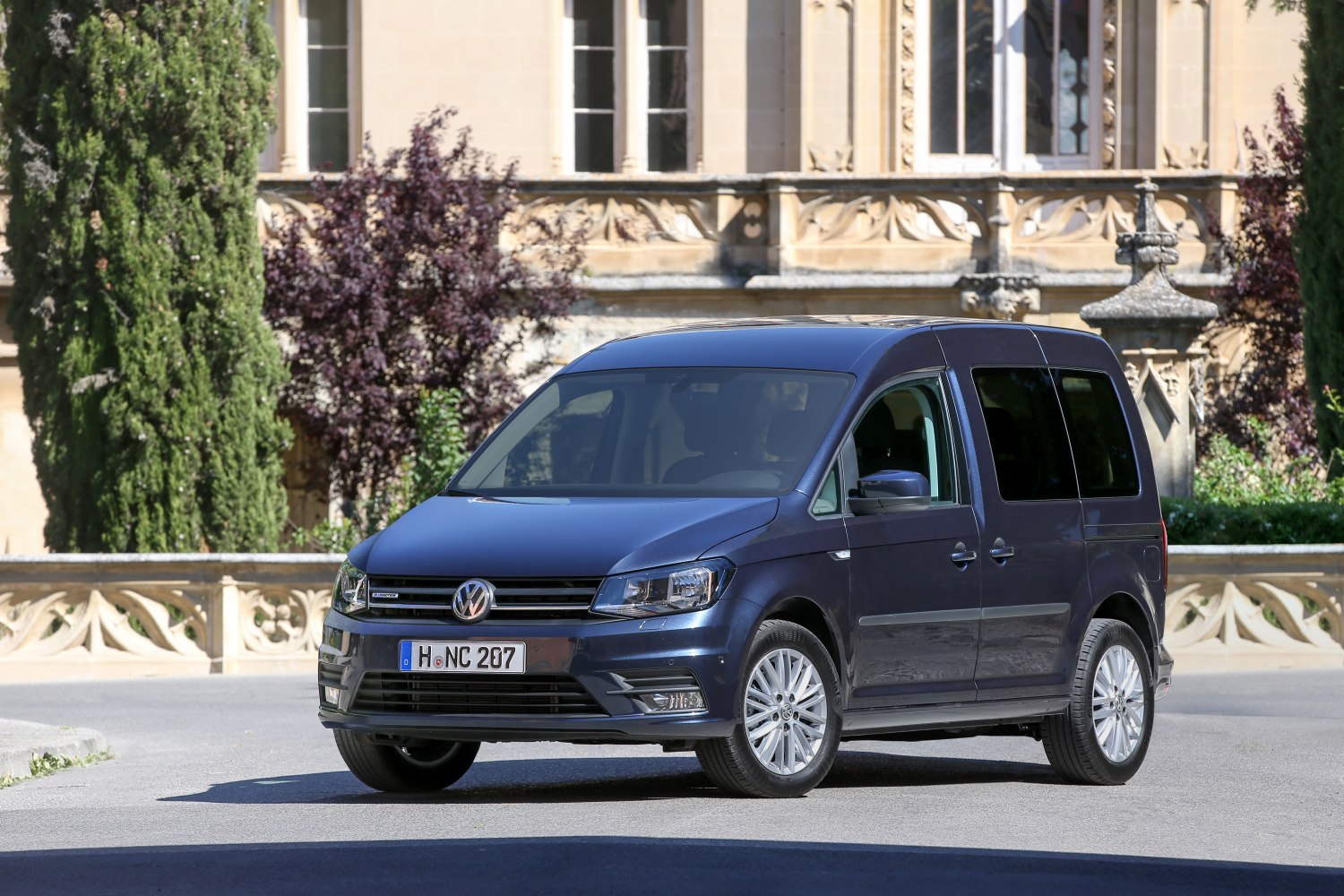

2015 Volkswagen Caddy IV - Photo 1
Volkswagen Caddy IV - Photo 2Volkswagen Caddy IV - Photo 3Volkswagen Caddy IV - Photo 4Volkswagen Caddy IV - Photo 5Volkswagen Caddy IV - Photo 6Volkswagen Caddy IV - Photo 7Volkswagen Caddy IV - Photo 8

Key specs:
Volkswagen Caddy IV 1.4 TGI (110 Hp) CNG DSG
/Minivan 2015 - 2020/

What is the body type of Volkswagen Caddy IV?Minivan, 4-5 Doors, 5-7 Seats
What is the fuel consumption and economy of Volkswagen Caddy IV 1.4 TGI (110 Hp) CNG DSG?4.3-4.7 kg/100 km
How environmentally friendly is Volkswagen Caddy 1.4 TGI (110 Hp) CNG DSG?118-130 g/km CO2
Euro 6
How fast is 2015 Caddy IV 1.4 TGI (110 Hp) CNG DSG?172 km/h | 106.88 mph
0-100 km/h: 12.9 sec
0-60 mph: 12.3 sec
What is the power output of Volkswagen Caddy Minivan 2015 1.4 TGI (110 Hp) CNG DSG?110 Hp, 200 Nm
147.51 lb.-ft.
What is the engine displacement of Volkswagen Caddy Minivan 2015 1.4 TGI (110 Hp) CNG DSG?1.4 l
1395 cm3
85.13 cu. in.
What is the number of cylinders in 2015 Volkswagen 1.4 TGI (110 Hp) CNG DSG?4, Inline
What is the drivetrain of Volkswagen Caddy IV Minivan 2015 1.4 TGI (110 Hp) CNG DSG?Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
What is the length of 2015 Volkswagen Caddy Minivan?4408 mm
173.54 in.
What is the width of 2015 Volkswagen Caddy Minivan?1793 mm
70.59 in.
What is the kerb weight of 2015 Volkswagen Caddy IV 1.4 TGI (110 Hp) CNG DSG?1501-1521 kg
3309.14 - 3353.23 lbs.
What is the maximum permissible mass of 2015 Volkswagen Caddy IV 1.4 TGI (110 Hp) CNG DSG?2180 kg
4806.08 lbs.
What is the trunk (boot) capacity of 2015 Volkswagen Caddy Minivan?190 - 3200 l
6.71 - 113.01 cu. ft.
What is the number of gears in What is the gearbox type of 2015 Volkswagen Caddy IV 1.4 TGI (110 Hp) CNG DSG?6, automatic transmission DSG
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

Volkswagen Caddy IV 1.4 TGI (110 Hp) CNG DSG - Full specifications

General information

BrandVolkswagen
Model Caddy
Generation Caddy IV
Modification (Engine) 1.4 TGI (110 Hp) CNG DSG
Start of production 2015 year
End of production 2020 year
Powertrain Architecture Internal Combustion engine
Body typeMinivan
Seats 5-7
Doors 4-5

Performance specs

Fuel consumption (economy) - urban (CNG) (NEDC) 5.3-5.7 kg/100 km
Fuel consumption (economy) - extra urban (CNG) (NEDC) 3.7-4.2 kg/100 km
Fuel consumption (economy) - combined (CNG) (NEDC)4.3-4.7 kg/100 km
CO2 emissions (CNG) (NEDC)118-130 g/km
Fuel Type Petrol / CNG
Acceleration 0 - 100 km/h12.9 sec
Acceleration 0 - 62 mph12.9 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net) 12.3 sec
Maximum speed 172 km/h 106.88 mph
Emission standard Euro 6
Weight-to-power ratio 13.6 kg/Hp, 73.3 Hp/tonne
Weight-to-torque ratio 7.5 kg/Nm, 133.2 Nm/tonne

Engine specs

Power 110 Hp @ 4800-6000 rpm.
Power per litre 78.9 Hp/l
Torque 200 Nm @ 1500-3500 rpm. 147.51 lb.-ft. @ 1500-3500 rpm.
Engine layout Front, Transverse
Engine Model/Code EA211 / CPWA
Engine displacement 1395 cm3 85.13 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 74.5 mm 2.93 in.
Piston Stroke 80 mm 3.15 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4 l 4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.6 l 5.92 US qt | 4.93 UK qt
Engine systemsStart & Stop System

Space, Volume and weights

Kerb Weight 1501-1521 kg 3309.14 - 3353.23 lbs.
Max. weight 2180 kg 4806.08 lbs.
Max load 659-679 kg 1452.85 - 1496.94 lbs.
Trunk (boot) space - minimum 190 l 6.71 cu. ft.
Trunk (boot) space - maximum 3200 l 113.01 cu. ft.
Fuel tank capacity 13 l 3.43 US gal | 2.86 UK gal
CNG cylinder capacity26 kg
Max. roof load 100 kg 220.46 lbs.
Permitted trailer load with brakes (12%) 1400 kg 3086.47 lbs.
Permitted trailer load without brakes 750 kg 1653.47 lbs.
Permitted towbar download 75 kg 165.35 lbs.

Dimensions

Length 4408 mm 173.54 in.
Width 1793 mm 70.59 in.
Width including mirrors 2079 mm 81.85 in.
Height 1858 mm 73.15 in.
Wheelbase 2682 mm 105.59 in.
Front overhang 879 mm 34.61 in.
Rear overhang 847 mm 33.35 in.
Ride height (ground clearance) 123 mm 4.84 in.
Minimum turning circle (turning diameter) 11.1 m 36.42 ft.
Approach angle 15.7°
Departure angle 17.5°
Ramp-over (brakeover) angle 13.2°

Drivetrain, brakes and suspension specs

Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission DSG
Front suspension Independent, McPherson type with coil spring and anti-roll bar
Rear suspension Rigid axle suspension, Anti-roll bar, Leaf spring
Front brakesVentilated discs, 288x25 mm
Rear brakesDisc, 272x10 mm
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15; 205/55 R16
Wheel rims size6J x 15; 6J x 16
