Volkswagen Bora Variant (1J6) 1.9 TDI (100 Hp) | Technical specs, data, fuel consumption, Dimensions

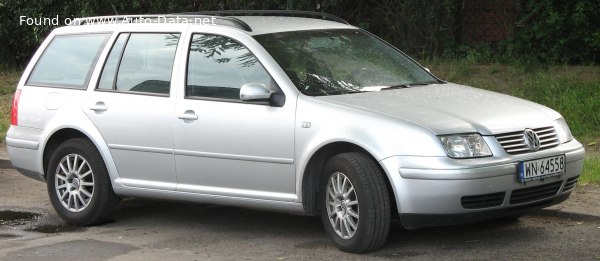

1999 Volkswagen Bora Variant (1J6) - Photo 1

Key specs

Volkswagen Bora Variant (1J6) 1.9 TDI (100 Hp) /Station wagon (estate) 2000 - 2005/

What is the body type of Volkswagen Bora Variant (1J6)?

Station wagon (estate), 5 Doors, 5 Seats

What is the fuel consumption and economy of Volkswagen Bora Variant (1J6) 1.9 TDI (100 Hp)?

6 l/100 km
39.2 US mpg
47.1 UK mpg
16.7 km/l

How environmentally friendly is Volkswagen Bora 1.9 TDI (100 Hp)?

Euro 3

How fast is 2000 Bora Variant (1J6) 1.9 TDI (100 Hp)?

188 km/h | 117 mph
0-100 km/h: 12.8 sec
0-60 mph: 12.2 sec

What is the power output of Volkswagen Bora Station wagon (estate) 2000 1.9 TDI (100 Hp)?

100 Hp, 240 Nm
177 lb.-ft.

What is the engine displacement of Volkswagen Bora Station wagon (estate) 2000 1.9 TDI (100 Hp)?

1.9 l
1896 cm³
115.7 cu. in.

What is the number of cylinders in 2000 Volkswagen 1.9 TDI (100 Hp)?

4, Inline

What is the drivetrain of Volkswagen Bora Variant (1J6) Station wagon (estate) 2000 1.9 TDI (100 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2000 Volkswagen Bora Station wagon (estate)?

4409 mm
173.58 in.

What is the width of 2000 Volkswagen Bora Station wagon (estate)?

1735 mm
68.31 in.

What is the kerb weight of 2000 Volkswagen Bora Variant (1J6) 1.9 TDI (100 Hp)?

1434 kg
3161 lbs.

What is the maximum permissible mass of 2000 Volkswagen Bora Variant (1J6) 1.9 TDI (100 Hp)?

1900 kg
4189 lbs.

What is the trunk (boot) capacity of 2000 Volkswagen Bora Station wagon (estate)?

460 - 1470 l
16.2 - 51.9 cu. ft.

What are the number of gears and the gearbox type of 2000 Volkswagen Bora Variant (1J6) 1.9 TDI (100 Hp)?

5, manual transmission

Compare

General information

Brand

Volkswagen

Model

Bora

Generation

Bora Variant (1J6)

Modification (Engine)

1.9 TDI (100 Hp)

Start of production

2000

End of production

2005

Powertrain Architecture

Internal Combustion engine

Body type

Station wagon (estate)

Seats

Doors

Looking for Volkswagen Bora on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

6.5 l/100 km 36.2 US mpg
43.5 UK mpg
15.4 km/l

Fuel consumption (economy) - extra urban

4 l/100 km 58.8 US mpg
70.6 UK mpg
25 km/l

Fuel consumption (economy) - combined

6 l/100 km 39.2 US mpg
47.1 UK mpg
16.7 km/l

Fuel Type

Diesel

Acceleration 0 - 100 km/h

12.8 sec

Acceleration 0 - 62 mph

12.8 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

12.2 sec

Maximum speed

188 km/h 117 mph

Emission standard

Euro 3

Weight-to-power ratio

14.3 kg/Hp, 69.7 Hp/tonne

Weight-to-torque ratio

6 kg/Nm, 167.4 Nm/tonne

Engine specs

Power

100 Hp @ 4000 rpm.

Power per litre

52.7 Hp/l

Torque

240 Nm @ 1800 rpm. 177 lb.-ft. @ 1800 rpm.

Engine layout

Front, Transverse

Engine Model/Code

ATD, AXR, BEW

Engine displacement

1896 cm³ 115.7 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

79.5 mm 3.13 in.

Piston Stroke

95.5 mm 3.76 in.

Compression ratio

19.5:1

Number of valves per cylinder

Fuel injection system

Pump-nozzle (Unit Injector)

Engine aspiration

Turbocharger, Intercooler

Valvetrain

SOHC

Engine oil capacity

4.5 l 4.76 US qt | 3.96 UK qt

Engine oil specification

Coolant

6 l 6.34 US qt | 5.28 UK qt

Volume and weights

Kerb Weight

1434 kg 3161 lbs.

Max. weight

1900 kg 4189 lbs.

Max load

466 kg 1027 lbs.

Trunk (boot) space - minimum

460 l 16.2 cu. ft.

Trunk (boot) space - maximum

1470 l 51.9 cu. ft.

Fuel tank capacity

55 l 14.53 US gal | 12.1 UK gal

Dimensions

Length

4409 mm 173.58 in.

Width

1735 mm 68.31 in.

Height

1485 mm 58.46 in.

Wheelbase

2515 mm 99.02 in.

Front track

1513 mm 59.57 in.

Rear (Back) track

1494 mm 58.82 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Semi-independent, coil spring

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

195/65 R15

Wheel rim size

6J x 15

Specs of Volkswagen Bora Variant (1J6) 1.9 TDI (100 Hp) /2000, 2001, 2002, 2003, 2004, 2005/
