Volkswagen Arteon Shooting Brake (facelift 2020) R 2.0 TSI (320 Hp) 4MOTION DSG | Technical specs, data, fuel consumption, Dimensions

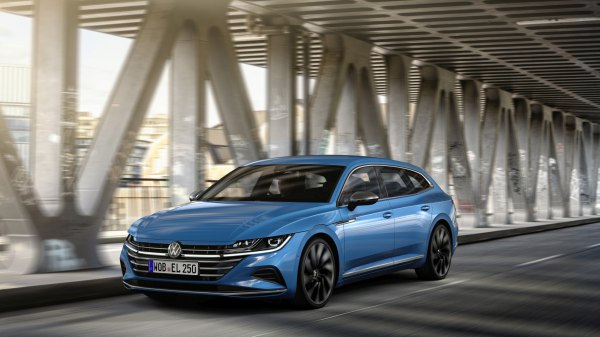

2021 Volkswagen Arteon Shooting Brake (facelift 2020) - Photo 1

Key specs

Volkswagen Arteon Shooting Brake (facelift 2020) R 2.0 TSI (320 Hp) 4MOTION DSG /Station wagon (estate) 2020 - /

What is the body type of Volkswagen Arteon Shooting Brake (facelift 2020)?

Station wagon (estate), 5 Doors, 5 Seats

What is the fuel consumption and economy of Volkswagen Arteon Shooting Brake (facelift 2020) R 2.0 TSI (320 Hp) 4MOTION DSG?

9 l/100 km
26.1 US mpg
31.4 UK mpg
11.1 km/l

How environmentally friendly is Volkswagen Arteon R 2.0 TSI (320 Hp) 4MOTION DSG?

203 g/km CO₂
Euro 6d-ISC-FCM

How fast is 2020 Arteon Shooting Brake (facelift 2020) R 2.0 TSI (320 Hp) 4MOTION DSG?

270 km/h | 168 mph
0-100 km/h: 4.9 sec
0-60 mph: 4.7 sec

What is the power output of Volkswagen Arteon Station wagon (estate) 2020 R 2.0 TSI (320 Hp) 4MOTION DSG?

320 Hp, 420 Nm
310 lb.-ft.

What is the engine displacement of Volkswagen Arteon Station wagon (estate) 2020 R 2.0 TSI (320 Hp) 4MOTION DSG?

2.0 l
1984 cm³
121.07 cu. in.

What is the number of cylinders in 2020 Volkswagen R 2.0 TSI (320 Hp) 4MOTION DSG?

4, Inline

What is the drivetrain of Volkswagen Arteon Shooting Brake (facelift 2020) Station wagon (estate) 2020 R 2.0 TSI (320 Hp) 4MOTION DSG?

All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.

What is the length of 2020 Volkswagen Arteon Station wagon (estate)?

4866 mm
191.57 in.

What is the width of 2020 Volkswagen Arteon Station wagon (estate)?

1871 mm
73.66 in.

What is the kerb weight of 2020 Volkswagen Arteon Shooting Brake (facelift 2020) R 2.0 TSI (320 Hp) 4MOTION DSG?

1718 kg
3788 lbs.

What is the maximum permissible mass of 2020 Volkswagen Arteon Shooting Brake (facelift 2020) R 2.0 TSI (320 Hp) 4MOTION DSG?

2290 kg
5049 lbs.

What is the trunk (boot) capacity of 2020 Volkswagen Arteon Station wagon (estate)?

565 - 1632 l
20 - 57.6 cu. ft.

What is the number of gears in What is the gearbox type of 2020 Volkswagen Arteon Shooting Brake (facelift 2020) R 2.0 TSI (320 Hp) 4MOTION DSG?

7, automatic transmission DSG

Volkswagen
- Volkswagen Arteon
  - Arteon Shooting Brake (facelift 2020)

Compare

General information

Brand

Volkswagen

Model

Arteon

Generation

Arteon Shooting Brake (facelift 2020)

Modification (Engine)

R 2.0 TSI (320 Hp) 4MOTION DSG

Start of production

2020 year

Powertrain Architecture

Internal Combustion engine

Body type

Station wagon (estate)

Seats

Doors

Looking for Volkswagen Arteon on the used-car market?

Check its history →

Performance specs

Fuel consumption at Low speed (WLTP)

13.3 l/100 km 17.7 US mpg
21.2 UK mpg
7.5 km/l

Fuel consumption at Medium speed (WLTP)

9.1 l/100 km 25.8 US mpg
31 UK mpg
11 km/l

Fuel consumption at high speed (WLTP)

7.7 l/100 km 30.5 US mpg
36.7 UK mpg
13 km/l

Fuel consumption at very high speed (WLTP)

8.3 l/100 km 28.3 US mpg
34 UK mpg
12 km/l

Combined fuel consumption (WLTP)

9 l/100 km 26.1 US mpg
31.4 UK mpg
11.1 km/l

CO₂ emissions (WLTP)

203 g/km

Fuel consumption (economy) - urban (NEDC)

9.9 l/100 km 23.8 US mpg
28.5 UK mpg
10.1 km/l

Fuel consumption (economy) - extra urban (NEDC)

6.5 l/100 km 36.2 US mpg
43.5 UK mpg
15.4 km/l

Fuel consumption (economy) - combined (NEDC)

7.7 l/100 km 30.5 US mpg
36.7 UK mpg
13 km/l

CO₂ emissions (NEDC)

177 g/km

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

4.9 sec

Acceleration 0 - 62 mph

4.9 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

4.7 sec

Maximum speed

270 km/h 168 mph

Emission standard

Euro 6d-ISC-FCM

Weight-to-power ratio

5.4 kg/Hp, 186.3 Hp/tonne

Weight-to-torque ratio

4.1 kg/Nm, 244.5 Nm/tonne

Engine specs

Power

320 Hp @ 5350-6500 rpm.

Power per litre

161.3 Hp/l

Torque

420 Nm @ 2100-5350 rpm. 310 lb.-ft. @ 2100-5350 rpm.

Engine layout

Front, Transverse

Engine Model/Code

DNFG

Engine displacement

1984 cm³ 121.07 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

82.5 mm 3.25 in.

Piston Stroke

92.8 mm 3.65 in.

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

5.7 l 6.02 US qt | 5.02 UK qt

Engine oil specification

Engine systems

Start & Stop System
Particulate filter

Volume and weights

Kerb Weight

1718 kg 3788 lbs.

Max. weight

2290 kg 5049 lbs.

Max load

572 kg 1261 lbs.

Trunk (boot) space - minimum

565 l 20 cu. ft.

Trunk (boot) space - maximum

1632 l 57.6 cu. ft.

Fuel tank capacity

66 l 17.44 US gal | 14.52 UK gal

Max. roof load

100 kg 220 lbs.

Permitted trailer load with brakes (12%)

2200 kg 4850 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Permitted towbar download

90 kg 198 lbs.

Dimensions

Length

4866 mm 191.57 in.

Width

1871 mm 73.66 in.

Height

1462 mm 57.56 in.

Wheelbase

2838 mm 111.73 in.

Front track

1587 mm 62.48 in.

Rear (Back) track

1579 mm 62.17 in.

Minimum turning circle (turning diameter)

11.9 m 39.04 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

7 gears, automatic transmission DSG

Front suspension

Independent, McPherson type, Anti-roll bar

Rear suspension

Independent multi-link suspension, Anti-roll bar

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

245/45 R18

Wheel rims size

8J x 18
