VolkswagenVolkswagen Amarok I Double Cab 2.0 TSI (160 Hp)2010, 2011, 2012, 2013, 2014, 2015, 2016: specs, Fuel consumption, Dimensions

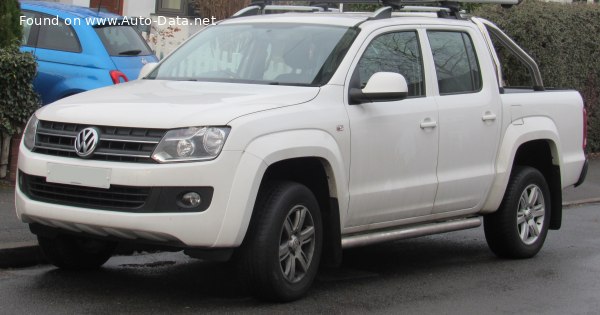

2010 Volkswagen Amarok I Double Cab - Photo 1
Volkswagen Amarok I Double Cab - Photo 2Volkswagen Amarok I Double Cab - Photo 3Volkswagen Amarok I Double Cab - Photo 4Volkswagen Amarok I Double Cab - Photo 5Volkswagen Amarok I Double Cab - Photo 6Volkswagen Amarok I Double Cab - Photo 7Volkswagen Amarok I Double Cab - Photo 8Volkswagen Amarok I Double Cab - Photo 9Volkswagen Amarok I Double Cab - Photo 10

Key specs

Volkswagen Amarok I Double Cab 2.0 TSI (160 Hp) /Pick-up 2010 - 2016/
What is the body type of Volkswagen Amarok I Double Cab?
Pick-up, 4 Doors, 5 Seats
What is the fuel consumption and economy of Volkswagen Amarok I Double Cab 2.0 TSI (160 Hp)?
9.6 l/100 km
24.5 US mpg
29.4 UK mpg
10.4 km/l
How environmentally friendly is Volkswagen Amarok 2.0 TSI (160 Hp)?
228 g/km CO2
Euro 4
What is the power output of Volkswagen Amarok Pick-up 2010 2.0 TSI (160 Hp)?
160 Hp, 300 Nm
221 lb.-ft.
What is the engine displacement of Volkswagen Amarok Pick-up 2010 2.0 TSI (160 Hp)?
2.0 l
1984 cm3
121.07 cu. in.
What is the number of cylinders in 2010 Volkswagen 2.0 TSI (160 Hp)?
4, Inline
What is the drivetrain of Volkswagen Amarok I Double Cab Pick-up 2010 2.0 TSI (160 Hp)?
Rear wheel drive. ICE. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
What is the length of 2010 Volkswagen Amarok Pick-up?
5254 mm
206.85 in.
What is the width of 2010 Volkswagen Amarok Pick-up?
1944 mm
76.54 in.
What is the kerb weight of 2010 Volkswagen Amarok I Double Cab 2.0 TSI (160 Hp)?
1842 kg
4061 lbs.
What is the maximum permissible mass of 2010 Volkswagen Amarok I Double Cab 2.0 TSI (160 Hp)?
3040 kg
6702 lbs.
What are the number of gears and the gearbox type of 2010 Volkswagen Amarok I Double Cab 2.0 TSI (160 Hp)?
6, manual transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Volkswagen Amarok I Double Cab 2.0 TSI (160 Hp)
Compare

General information

Brand
Volkswagen
Model
Amarok
Generation
Amarok I Double Cab
Modification (Engine)
2.0 TSI (160 Hp)
Start of production
2010
End of production
2016
Powertrain Architecture
Internal Combustion engine
Body type
Pick-up
Seats
5
Doors
4
Looking for Volkswagen Amarok on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
12.7 l/100 km 18.5 US mpg
22.2 UK mpg
7.9 km/l
Fuel consumption (economy) - extra urban
7.9 l/100 km 29.8 US mpg
35.8 UK mpg
12.7 km/l
Fuel consumption (economy) - combined
9.6 l/100 km 24.5 US mpg
29.4 UK mpg
10.4 km/l
CO2 emissions
228 g/km
Fuel Type
Petrol (Gasoline)
Emission standard
Euro 4
Weight-to-power ratio
11.5 kg/Hp, 86.9 Hp/tonne
Weight-to-torque ratio
6.1 kg/Nm, 162.9 Nm/tonne

Engine specs

Power
160 Hp @ 3750 rpm.
Power per litre
80.6 Hp/l
Torque
300 Nm @ 1600-3750 rpm. 221 lb.-ft. @ 1600-3750 rpm.
Engine layout
Front, Longitudinal
Engine Model/Code
CFPA
Engine displacement
1984 cm3 121.07 cu. in.
Number of cylinders
4
Engine configuration
Inline
Cylinder Bore
82.5 mm 3.25 in.
Piston Stroke
92.8 mm 3.65 in.
Compression ratio
9.6:1
Number of valves per cylinder
4
Fuel injection system
Direct injection
Engine aspiration
Turbocharger, Intercooler
Valvetrain
DOHC
Engine oil capacity
6.5 l 6.87 US qt | 5.72 UK qt
Engine oil specification
Log in to see.Log in to see.

Volume and weights

Kerb Weight
1842 kg 4061 lbs.
Max. weight
3040 kg 6702 lbs.
Max load
1198 kg 2641 lbs.
Fuel tank capacity
80 l 21.13 US gal | 17.6 UK gal

Dimensions

Length
5254 mm 206.85 in.
Width
1944 mm 76.54 in.
Width including mirrors
2228 mm 87.72 in.
Height
1834 mm 72.2 in.
Wheelbase
3095 mm 121.85 in.
Front overhang
898 mm 35.35 in.
Rear overhang
1261 mm 49.65 in.
Ride height (ground clearance)
192 mm 7.56 in.
Minimum turning circle (turning diameter)
12.95 m 42.49 ft.
Approach angle
28°
Departure angle
23.6°
Ramp-over (breakover) angle
21.4°
Wading depth
500 mm 19.69 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel
Rear wheel drive
Number of gears and type of gearbox
6 gears, manual transmission
Front suspension
Independent, McPherson type
Rear suspension
Leaf spring
Front brakes
Ventilated discs
Rear brakes
Drum
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
