Toyota Regius Ace (H200) 2.0 (133 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

Key specs

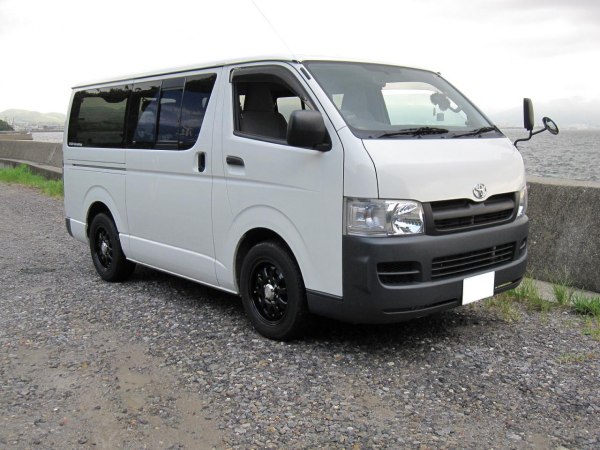

Toyota Regius Ace (H200) 2.0 (133 Hp) Automatic /Minivan 2004 - 2010/

What is the body type of Toyota Regius Ace (H200)?

Minivan, 4-5 Doors, 3-9 Seats

What is the fuel consumption and economy of Toyota Regius Ace (H200) 2.0 (133 Hp) Automatic?

10.5 l/100 km
22.4 US mpg
26.9 UK mpg
9.5 km/l

What is the power output of Toyota Regius Ace Minivan 2004 2.0 (133 Hp) Automatic?

133 Hp, 182 Nm
134 lb.-ft.

What is the engine displacement of Toyota Regius Ace Minivan 2004 2.0 (133 Hp) Automatic?

2.0 l
1998 cm³
121.93 cu. in.

What is the number of cylinders in 2004 Toyota 2.0 (133 Hp) Automatic?

4, Inline

What is the drivetrain of Toyota Regius Ace (H200) Minivan 2004 2.0 (133 Hp) Automatic?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 2004 Toyota Regius Ace Minivan?

4695 mm
184.84 in.

What is the width of 2004 Toyota Regius Ace Minivan?

1695 mm
66.73 in.

What is the kerb weight of 2004 Toyota Regius Ace (H200) 2.0 (133 Hp) Automatic?

1630-1760 kg
3594 - 3880 lbs.

What is the maximum permissible mass of 2004 Toyota Regius Ace (H200) 2.0 (133 Hp) Automatic?

2870-3095 kg
6327 - 6823 lbs.

What are the number of gears and the gearbox type of 2004 Toyota Regius Ace (H200) 2.0 (133 Hp) Automatic?

4, automatic transmission

Toyota
- Toyota Regius Ace
  - Regius Ace (H200)
    - 2.0 (133 Hp) Automatic

Compare

General information

Brand

Toyota

Model

Regius Ace

Generation

Regius Ace (H200)

Modification (Engine)

2.0 (133 Hp) Automatic

Start of production

August, 2004

End of production

2010

Powertrain Architecture

Internal Combustion engine

Body type

Minivan

Seats

3-9

Doors

4-5

Looking for Toyota Regius Ace on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined

10.5 l/100 km 22.4 US mpg
26.9 UK mpg
9.5 km/l

Fuel Type

Petrol (Gasoline)

Weight-to-power ratio

12.3 kg/Hp, 81.6 Hp/tonne

Weight-to-torque ratio

9 kg/Nm, 111.7 Nm/tonne

Engine specs

Power

133 Hp @ 5600 rpm.

Power per litre

66.6 Hp/l

Torque

182 Nm @ 4000 rpm. 134 lb.-ft. @ 4000 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

1TR-FE

Engine displacement

1998 cm³ 121.93 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

86 mm 3.39 in.

Piston Stroke

86 mm 3.39 in.

Compression ratio

9.8:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

5.5 l 5.81 US qt | 4.84 UK qt

Engine oil specification

Coolant

12 l 12.68 US qt | 10.56 UK qt

Volume and weights

Kerb Weight

1630-1760 kg 3594 - 3880 lbs.

Max. weight

2870-3095 kg 6327 - 6823 lbs.

Max load

1240-1335 kg 2734 - 2943 lbs.

Fuel tank capacity

70 l 18.49 US gal | 15.4 UK gal

Dimensions

Length

4695 mm 184.84 in.

Width

1695 mm 66.73 in.

Height

1980 mm 77.95 in.

Wheelbase

2570 mm 101.18 in.

Front track

1470 mm 57.87 in.

Rear (Back) track

1465 mm 57.68 in.

Ride height (ground clearance)

195 mm 7.68 in.

Minimum turning circle (turning diameter)

10 m 32.81 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

4 gears, automatic transmission

Front suspension

Independent torsion bar, double wishbone

Rear suspension

Leaf spring

Front brakes

Ventilated discs

Rear brakes

Drum

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Tire size

195/80 R15

Wheel rim size

6J x 15

Specs of Toyota Regius Ace (H200) 2.0 (133 Hp) Automatic /2004, 2005, 2006, 2007, 2008, 2009, 2010/
