Toyota Raum 1.5 i (105 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

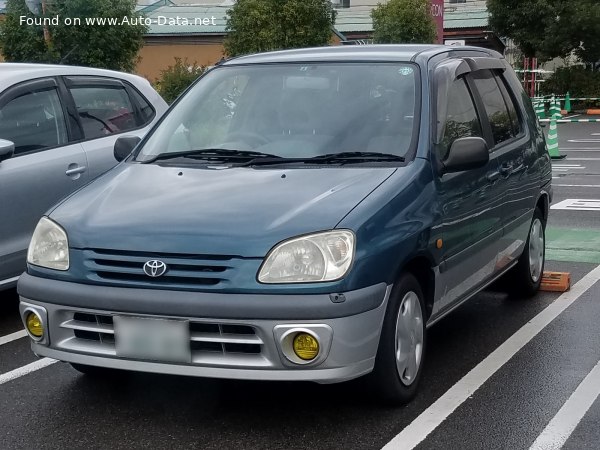

Toyota Raum 1.5 i (105 Hp) /Minivan 2003 - 2011/

What is the body type of Toyota Raum?

Minivan, 5 Doors, 5 Seats

How fast is 2003 Raum 1.5 i (105 Hp)?

170 km/h | 106 mph

What is the power output of Toyota Raum Minivan 2003 1.5 i (105 Hp)?

105 Hp, 127 Nm
94 lb.-ft.

What is the engine displacement of Toyota Raum Minivan 2003 1.5 i (105 Hp)?

1.5 l
1497 cm³
91.35 cu. in.

What is the number of cylinders in 2003 Toyota 1.5 i (105 Hp)?

4, Inline

What is the drivetrain of Toyota Raum Minivan 2003 1.5 i (105 Hp)?

All wheel drive (4x4). Internal Combustion engine.

What is the length of 2003 Toyota Raum Minivan?

4045 mm
159.25 in.

What is the width of 2003 Toyota Raum Minivan?

1690 mm
66.54 in.

What is the kerb weight of 2003 Toyota Raum 1.5 i (105 Hp)?

1190 kg
2624 lbs.

What is the number of gears in 2003 Toyota Raum 1.5 i (105 Hp)?

4, automatic transmission

Toyota
- Toyota Raum
  - Raum
    - 1.5 i (109 Hp)
    - 1.5 i (105 Hp)
    - 1.5 i 16V (94 Hp)
    - 1.5 i 16V (91 Hp) 4WD

Compare

General information

Brand

Toyota

Model

Raum

Generation

Raum

Modification (Engine)

1.5 i (105 Hp)

Start of production

2003 year

End of production

2011 year

Powertrain Architecture

Internal Combustion engine

Body type

Minivan

Seats

Doors

Looking for Toyota Raum on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

11 l/100 km 21.4 US mpg
25.7 UK mpg
9.1 km/l

Fuel consumption (economy) - extra urban

7 l/100 km 33.6 US mpg
40.4 UK mpg
14.3 km/l

Fuel Type

Petrol (Gasoline)

Maximum speed

170 km/h 106 mph

Weight-to-power ratio

11.3 kg/Hp, 88.2 Hp/tonne

Weight-to-torque ratio

9.4 kg/Nm, 106.7 Nm/tonne

Engine specs

Power

105 Hp @ 6400 rpm.

Power per litre

70.1 Hp/l

Torque

127 Nm @ 3200 rpm. 94 lb.-ft. @ 3200 rpm.

Engine layout

Front, Transverse

Engine Model/Code

1NZ-FE

Engine displacement

1497 cm³ 91.35 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

74 mm 2.91 in.

Piston Stroke

87 mm 3.43 in.

Compression ratio

9.4:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

3.7 l 3.91 US qt | 3.26 UK qt

Engine oil specification

Coolant

4.3 l 4.54 US qt | 3.78 UK qt

Volume and weights

Kerb Weight

1190 kg 2624 lbs.

Fuel tank capacity

45 l 11.89 US gal | 9.9 UK gal

Dimensions

Length

4045 mm 159.25 in.

Width

1690 mm 66.54 in.

Height

1545 mm 60.83 in.

Wheelbase

2500 mm 98.43 in.

Front track

1450 mm 57.09 in.

Rear (Back) track

1420 mm 55.91 in.

Drivetrain, brakes and suspension specs

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

4 gears, automatic transmission

Front suspension

Wishbone

Rear suspension

Coil spring

Front brakes

Ventilated discs

Rear brakes

Drum

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tires size

175/65 R14

Specs of Toyota Raum 1.5 i (105 Hp) /2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011/
