Toyota Harrier III (XU60) 2.0 (151 Hp) CVT-i | Technical specs, data, fuel consumption, Dimensions

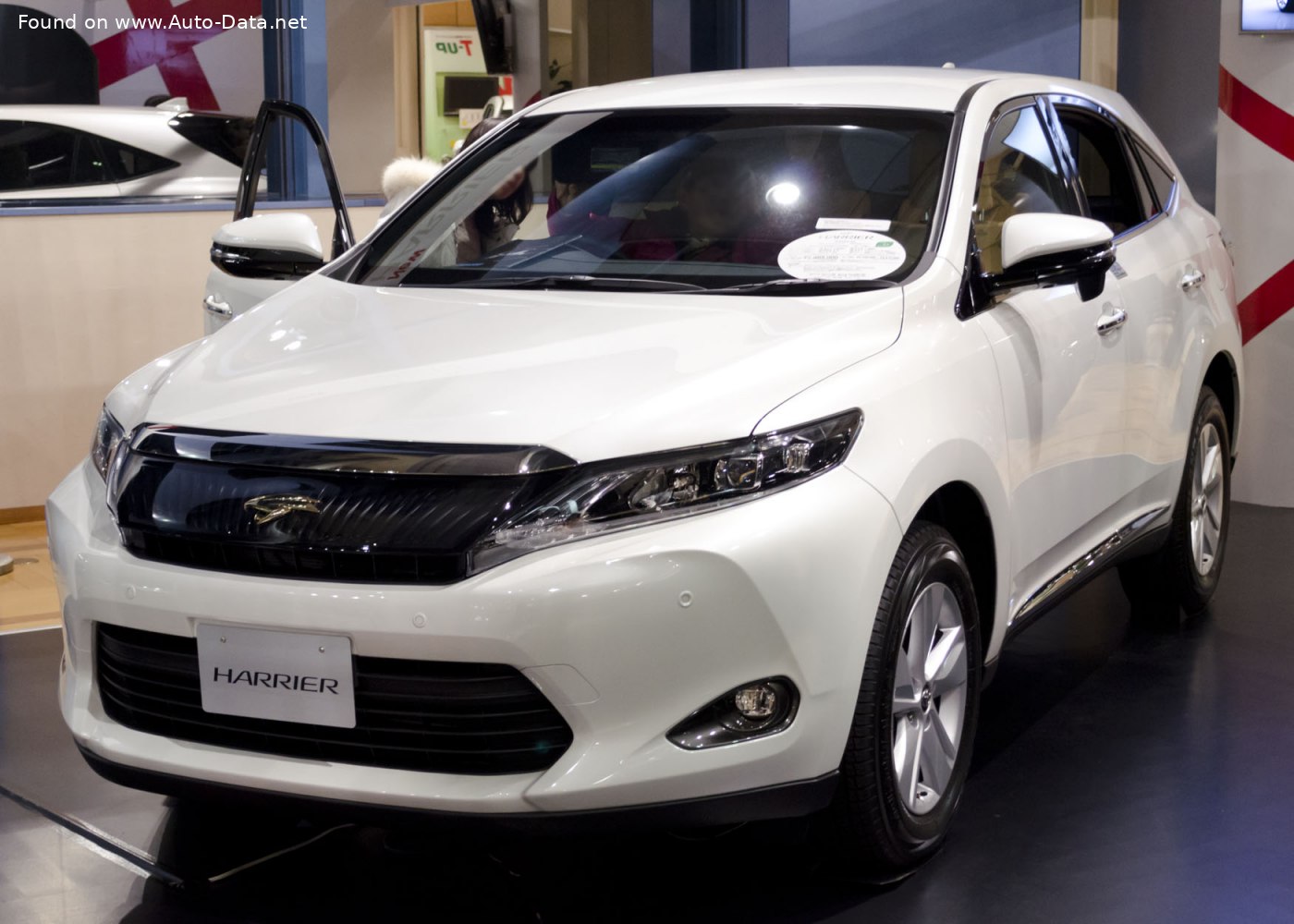

2014 Toyota Harrier III (XU60) - Photo 1

Key specs

Toyota Harrier III (XU60) 2.0 (151 Hp) CVT-i /SUV 2013 - 2017/

What is the body type of Toyota Harrier III (XU60)?

SUV, 5 Doors, 5 Seats

What is the fuel consumption and economy of Toyota Harrier III (XU60) 2.0 (151 Hp) CVT-i?

6.25 l/100 km
37.6 US mpg
45.2 UK mpg
16 km/l

What is the power output of Toyota Harrier SUV 2013 2.0 (151 Hp) CVT-i?

151 Hp, 193 Nm
142 lb.-ft.

What is the engine displacement of Toyota Harrier SUV 2013 2.0 (151 Hp) CVT-i?

2.0 l
1986 cm³
121.19 cu. in.

What is the number of cylinders in 2013 Toyota 2.0 (151 Hp) CVT-i?

4, Inline

What is the drivetrain of Toyota Harrier III (XU60) SUV 2013 2.0 (151 Hp) CVT-i?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2013 Toyota Harrier SUV?

4720 mm
185.83 in.

What is the width of 2013 Toyota Harrier SUV?

1835 mm
72.24 in.

What is the kerb weight of 2013 Toyota Harrier III (XU60) 2.0 (151 Hp) CVT-i?

1560-1630 kg
3439 - 3594 lbs.

What is the maximum permissible mass of 2013 Toyota Harrier III (XU60) 2.0 (151 Hp) CVT-i?

1855 kg
4090 lbs.

What is the number of gears in What is the gearbox type of 2013 Toyota Harrier III (XU60) 2.0 (151 Hp) CVT-i?

automatic transmission Super CVT-i

Toyota
- Toyota Harrier
  - Harrier III (XU60)
    - 2.5 (197 Hp) Hybrid E-Four e-CVT
    - 2.0 (151 Hp) CVT-i
    - 2.0 (151 Hp) 4x4 CVT-i

Compare

General information

Brand

Toyota

Model

Harrier

Generation

Harrier III (XU60)

Modification (Engine)

2.0 (151 Hp) CVT-i

Start of production

2013 year

End of production

2017 year

Powertrain Architecture

Internal Combustion engine

Body type

SUV

Seats

Doors

Performance specs

Fuel consumption (economy) - combined

6.25 l/100 km 37.6 US mpg
45.2 UK mpg
16 km/l

Fuel Type

Petrol (Gasoline)

Weight-to-power ratio

10.3 kg/Hp, 96.8 Hp/tonne

Weight-to-torque ratio

8.1 kg/Nm, 123.7 Nm/tonne

Engine specs

Power

151 Hp @ 6100 rpm.

Power per litre

76 Hp/l

Torque

193 Nm @ 3800 rpm. 142 lb.-ft. @ 3800 rpm.

Engine layout

Front, Transverse

Engine Model/Code

3ZR-FAE

Engine displacement

1986 cm³ 121.19 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

80.5 mm 3.17 in.

Piston Stroke

97.6 mm 3.84 in.

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

4.2 l 4.44 US qt | 3.7 UK qt

Engine oil specification

Coolant

5.9 l 6.23 US qt | 5.19 UK qt

Volume and weights

Kerb Weight

1560-1630 kg 3439 - 3594 lbs.

Max. weight

1855 kg 4090 lbs.

Max load

225-295 kg 496 - 650 lbs.

Fuel tank capacity

60 l 15.85 US gal | 13.2 UK gal

Dimensions

Length

4720 mm 185.83 in.

Width

1835 mm 72.24 in.

Height

1690 mm 66.54 in.

Wheelbase

2660 mm 104.72 in.

Front track

1560-1570 mm 61.42 - 61.81 in.

Rear (Back) track

1560-1570 mm 61.42 - 61.81 in.

Ride height (ground clearance)

190 mm 7.48 in.

Minimum turning circle (turning diameter)

11.2 m 36.75 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

automatic transmission Super CVT-i

Front suspension

Independent, McPherson type

Rear suspension

Double wishbone

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

225/65 R17; 235/55 R18

Wheel rims size

6.5J x 17; 7.5J x 18

Specs of Toyota Harrier III (XU60) 2.0 (151 Hp) CVT-i /2013, 2014, 2015, 2016, 2017/
