Toyota Corolla Cross (facelift 2024) 2.0 (196 Hp) Hybrid AWD e-CVT | Technical specs, data, fuel consumption, Dimensions

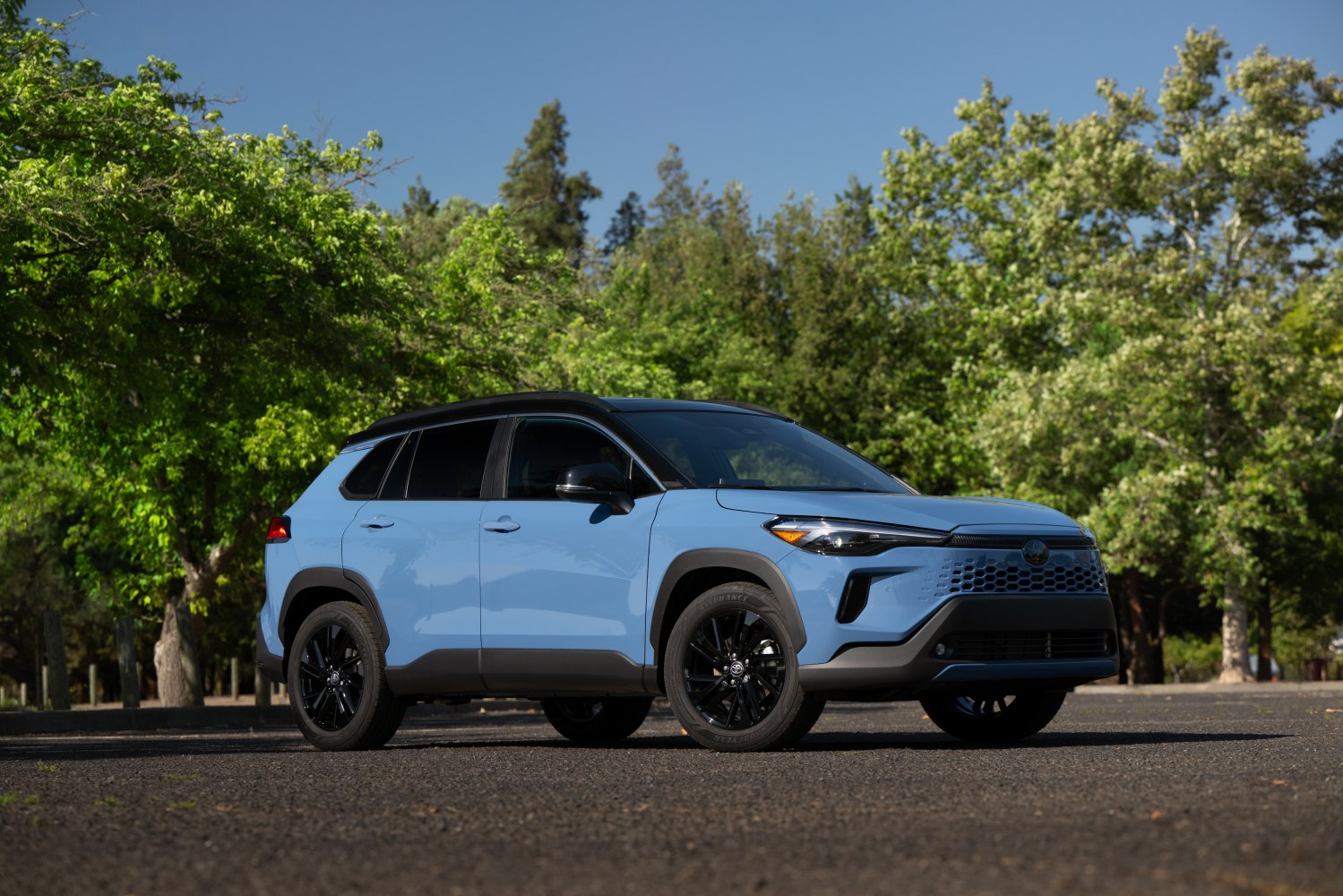

2024 Toyota Corolla Cross (facelift 2024) - Photo 1

Key specs

Toyota Corolla Cross (facelift 2024) 2.0 (196 Hp) Hybrid AWD e-CVT /SUV (Sport Utility Vehicle) 2025 - /

What is the body type of Toyota Corolla Cross (facelift 2024)?

SUV (Sport Utility Vehicle), 5 Doors, 5 Seats

What is the fuel consumption and economy of Toyota Corolla Cross (facelift 2024) 2.0 (196 Hp) Hybrid AWD e-CVT?

5.6 l/100 km
42 US mpg
50.4 UK mpg
17.9 km/l

How environmentally friendly is Toyota Corolla Cross 2.0 (196 Hp) Hybrid AWD e-CVT?

SULEV 30

How fast is 2025 Corolla Cross (facelift 2024) 2.0 (196 Hp) Hybrid AWD e-CVT?

0-60 mph: 8 sec

What is the power output of Toyota Corolla Cross SUV (Sport Utility Vehicle) 2025 2.0 (196 Hp) Hybrid AWD e-CVT?

196 Hp, 188 Nm
139 lb.-ft.

What is the engine displacement of Toyota Corolla Cross SUV (Sport Utility Vehicle) 2025 2.0 (196 Hp) Hybrid AWD e-CVT?

2.0 l
1987 cm³
121.25 cu. in.

What is the number of cylinders in 2025 Toyota 2.0 (196 Hp) Hybrid AWD e-CVT?

4, Inline

What is the drivetrain of Toyota Corolla Cross (facelift 2024) SUV (Sport Utility Vehicle) 2025 2.0 (196 Hp) Hybrid AWD e-CVT?

All wheel drive (4x4). FHEV (Full Hybrid Electric Vehicle). An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.

What is the length of 2025 Toyota Corolla Cross SUV (Sport Utility Vehicle)?

4490 mm
176.77 in.

What is the width of 2025 Toyota Corolla Cross SUV (Sport Utility Vehicle)?

1825 mm
71.85 in.

What is the kerb weight of 2025 Toyota Corolla Cross (facelift 2024) 2.0 (196 Hp) Hybrid AWD e-CVT?

1510-1556 kg
3329 - 3430 lbs.

What is the maximum permissible mass of 2025 Toyota Corolla Cross (facelift 2024) 2.0 (196 Hp) Hybrid AWD e-CVT?

2086 kg
4599 lbs.

What is the trunk (boot) capacity of 2025 Toyota Corolla Cross SUV (Sport Utility Vehicle)?

481 - 1246 l
17 - 44 cu. ft.

What are the number of gears and the gearbox type of 2025 Toyota Corolla Cross (facelift 2024) 2.0 (196 Hp) Hybrid AWD e-CVT?

automatic transmission e-CVT

Toyota
- Toyota Corolla Cross
  - Corolla Cross (facelift 2024)
    - 2.0 (169 Hp) CVTi-S
    - 2.0 (169 Hp) AWD CVTi-S
    - 2.0 (196 Hp) Hybrid AWD e-CVT
    - 2.0 (180 Hp) Hybrid e-CVT
    - 2.0 (180 Hp) Hybrid AWD-i e-CVT
    - 1.8 (140 Hp) Super CVT-i
    - 1.8 (140 Hp) Hybrid e-CVT
    - 1.8 (122 Hp) Full Hybrid E-CVT

Compare

General information

Brand

Toyota

Model

Corolla Cross

Generation

Corolla Cross (facelift 2024)

Modification (Engine)

2.0 (196 Hp) Hybrid AWD e-CVT

Start of production

September, 2025

Powertrain Architecture

FHEV (Full Hybrid Electric Vehicle)

Body type

SUV (Sport Utility Vehicle)

Seats

Doors

Looking for Toyota Corolla Cross on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

5.2 l/100 km 45.2 US mpg
54.3 UK mpg
19.2 km/l

Fuel consumption (economy) - extra urban

6.2 l/100 km 37.9 US mpg
45.6 UK mpg
16.1 km/l

Fuel consumption (economy) - combined

5.6 l/100 km 42 US mpg
50.4 UK mpg
17.9 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 60 mph

8 sec

Emission standard

SULEV 30

Weight-to-power ratio

7.7 kg/Hp, 129.8 Hp/tonne

Weight-to-torque ratio

8 kg/Nm, 124.5 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

0.9 kWh

Battery voltage

222 V

Battery technology

Lithium-ion (Li-Ion)

Electric motor 1

Electric motor location

Integrated into the transmission

Electric motor type

Synchronous

Electric motor 2

Electric motor location

Rear axle, Transverse

System power

196 Hp

Internal combustion engine specs

Power

150 Hp @ 6000 rpm.

Power per litre

75.5 Hp/l

Torque

188 Nm @ 4400-5200 rpm. 139 lb.-ft. @ 4400-5200 rpm.

Engine layout

Front, Transverse

Engine Model/Code

Dynamic Force

Engine displacement

1987 cm³ 121.25 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

80.5 mm 3.17 in.

Piston Stroke

97.6 mm 3.84 in.

Compression ratio

14:1

Number of valves per cylinder

Fuel injection system

Direct injection and Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC, Dual VVT-i

Engine oil capacity

4.5 l 4.76 US qt | 3.96 UK qt

Engine oil specification

Engine systems

Start & Stop System

Volume and weights

Kerb Weight

1510-1556 kg 3329 - 3430 lbs.

Max. weight

2086 kg 4599 lbs.

Max load

530-576 kg 1168 - 1270 lbs.

Trunk (boot) space - minimum

481 l 17 cu. ft.

Trunk (boot) space - maximum

1246 l 44 cu. ft.

Fuel tank capacity

40 l 10.57 US gal | 8.8 UK gal

Permitted trailer load with brakes (12%)

680 kg 1499 lbs.

Permitted towbar download

68 kg 150 lbs.

Dimensions

Length

4490 mm 176.77 in.

Width

1825 mm 71.85 in.

Height

1648 mm 64.88 in.

Wheelbase

2640 mm 103.94 in.

Front track

1557 mm 61.3 in.

Rear (Back) track

1557 mm 61.3 in.

Ride height (ground clearance)

204 mm 8.03 in.

Minimum turning circle (turning diameter)

10.8 m 35.43 ft.

Approach angle

16.2°

Departure angle

22.8°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

automatic transmission e-CVT

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Double wishbone, Independent coil spring, Anti-roll bar

Front brakes

Ventilated discs, 305 mm

Rear brakes

Disc, 282 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

215/65 R17; 225/55 R18

Wheel rim size

17; 18

Specs of Toyota Corolla Cross (facelift 2024) 2.0 (196 Hp) Hybrid AWD e-CVT /2025, 2026/
