Toyota Avensis II Hatch 2.0 D-4D (116 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

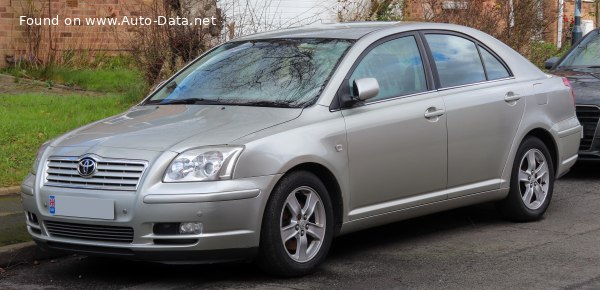

Toyota Avensis II Hatch 2.0 D-4D (116 Hp) /Hatchback 2003 - 2009/

What is the body type of Toyota Avensis II Hatch?

Hatchback, 5 Doors, 5 Seats

What is the fuel consumption and economy of Toyota Avensis II Hatch 2.0 D-4D (116 Hp)?

5.6 l/100 km
42 US mpg
50.4 UK mpg
17.9 km/l

How fast is 2003 Avensis II Hatch 2.0 D-4D (116 Hp)?

195 km/h | 121 mph
0-100 km/h: 11.2 sec
0-60 mph: 10.6 sec

What is the power output of Toyota Avensis Hatchback 2003 2.0 D-4D (116 Hp)?

116 Hp, 280 Nm
207 lb.-ft.

What is the engine displacement of Toyota Avensis Hatchback 2003 2.0 D-4D (116 Hp)?

2.0 l
1995 cm³
121.74 cu. in.

What is the number of cylinders in 2003 Toyota 2.0 D-4D (116 Hp)?

4, Inline

What is the drivetrain of Toyota Avensis II Hatch Hatchback 2003 2.0 D-4D (116 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2003 Toyota Avensis Hatchback?

4630 mm
182.28 in.

What is the width of 2003 Toyota Avensis Hatchback?

1760 mm
69.29 in.

What is the kerb weight of 2003 Toyota Avensis II Hatch 2.0 D-4D (116 Hp)?

1400 kg
3086 lbs.

What is the maximum permissible mass of 2003 Toyota Avensis II Hatch 2.0 D-4D (116 Hp)?

1970 kg
4343 lbs.

What is the trunk (boot) capacity of 2003 Toyota Avensis Hatchback?

510 - 1320 l
18 - 46.6 cu. ft.

What are the number of gears and the gearbox type of 2003 Toyota Avensis II Hatch 2.0 D-4D (116 Hp)?

5, manual transmission

Toyota
- Toyota Avensis
  - Avensis II Hatch
    - 2.0 VVT-i (147 Hp) Automatic
    - 2.0 VVT-i (147 Hp)
    - 2.0 D-4D (116 Hp)
    - 1.8 VVT-i (129 Hp) Automatic
    - 1.8 VVT-i (129 Hp)
    - 1.6 VVT-i (110 Hp)

Compare

General information

Brand

Toyota

Model

Avensis

Generation

Avensis II Hatch

Modification (Engine)

2.0 D-4D (116 Hp)

Start of production

2003

End of production

2009

Powertrain Architecture

Internal Combustion engine

Body type

Hatchback

Seats

Doors

Looking for Toyota Avensis on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

7.5 l/100 km 31.4 US mpg
37.7 UK mpg
13.3 km/l

Fuel consumption (economy) - extra urban

4.9 l/100 km 48 US mpg
57.6 UK mpg
20.4 km/l

Fuel consumption (economy) - combined

5.6 l/100 km 42 US mpg
50.4 UK mpg
17.9 km/l

Fuel Type

Diesel

Acceleration 0 - 100 km/h

11.2 sec

Acceleration 0 - 62 mph

11.2 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

10.6 sec

Maximum speed

195 km/h 121 mph

Weight-to-power ratio

12.1 kg/Hp, 82.9 Hp/tonne

Weight-to-torque ratio

5 kg/Nm, 200 Nm/tonne

Engine specs

Power

116 Hp @ 3600 rpm.

Power per litre

58.1 Hp/l

Torque

280 Nm @ 2000 rpm. 207 lb.-ft. @ 2000 rpm.

Engine layout

Front, Transverse

Engine Model/Code

1CD-FTV

Engine displacement

1995 cm³ 121.74 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

82.2 mm 3.24 in.

Piston Stroke

94 mm 3.7 in.

Compression ratio

18.6:1

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

5.9 l 6.23 US qt | 5.19 UK qt

Engine oil specification

Coolant

7.6 l 8.03 US qt | 6.69 UK qt

Volume and weights

Kerb Weight

1400 kg 3086 lbs.

Max. weight

1970 kg 4343 lbs.

Max load

570 kg 1257 lbs.

Trunk (boot) space - minimum

510 l 18 cu. ft.

Trunk (boot) space - maximum

1320 l 46.6 cu. ft.

Fuel tank capacity

60 l 15.85 US gal | 13.2 UK gal

Dimensions

Length

4630 mm 182.28 in.

Width

1760 mm 69.29 in.

Height

1480 mm 58.27 in.

Wheelbase

2700 mm 106.3 in.

Front track

1505 mm 59.25 in.

Rear (Back) track

1510 mm 59.45 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Coil spring

Rear suspension

Coil spring

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Tire size

215/45 R17

Specs of Toyota Avensis II Hatch 2.0 D-4D (116 Hp) /2003, 2004, 2005, 2006, 2007, 2008, 2009/
