Specs of Toyota Aqua I (facelift 2017) 1.5 (74 Hp) e-CVT /2017, 2018, 2019, 2020, 2021/

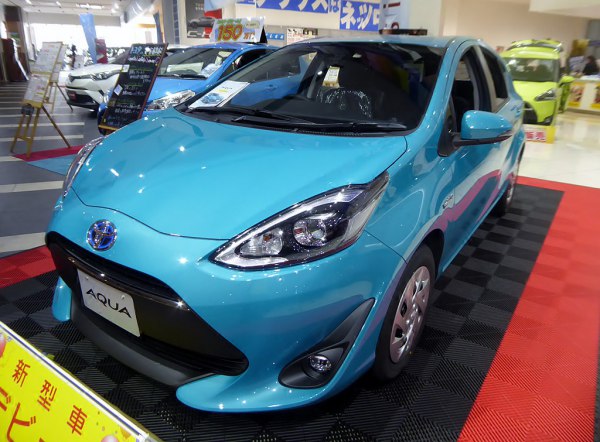

2018 Toyota Aqua I (facelift 2017) - Photo 1

Key specs

Toyota Aqua I (facelift 2017) 1.5 (74 Hp) e-CVT /Hatchback 2017 - 2021/

What is the body type of Toyota Aqua I (facelift 2017)?
Hatchback, 5 Doors, 5 Seats
What is the fuel consumption and economy of Toyota Aqua I (facelift 2017) 1.5 (74 Hp) e-CVT?
2.6-2.9 l/100 km
90.5 - 81.1 US mpg
108.6 - 97.4 UK mpg
38.5 - 34.5 km/l
What is the power output of Toyota Aqua Hatchback 2017 1.5 (74 Hp) e-CVT?
74 Hp, 111 Nm
82 lb.-ft.
What is the engine displacement of Toyota Aqua Hatchback 2017 1.5 (74 Hp) e-CVT?
1.5 l
1496 cm3
91.29 cu. in.
What is the number of cylinders in 2017 Toyota 1.5 (74 Hp) e-CVT?
4, Inline
What is the drivetrain of Toyota Aqua I (facelift 2017) Hatchback 2017 1.5 (74 Hp) e-CVT?
Front wheel drive. FHEV (Full Hybrid Electric Vehicle). The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
What is the length of 2017 Toyota Aqua Hatchback?
4050 mm
159.45 in.
What is the width of 2017 Toyota Aqua Hatchback?
1695 mm
66.73 in.
What is the kerb weight of 2017 Toyota Aqua I (facelift 2017) 1.5 (74 Hp) e-CVT?
1060-1090 kg
2337 - 2403 lbs.
What is the maximum permissible mass of 2017 Toyota Aqua I (facelift 2017) 1.5 (74 Hp) e-CVT?
1335-1365 kg
2943 - 3009 lbs.
What are the number of gears and the gearbox type of 2017 Toyota Aqua I (facelift 2017) 1.5 (74 Hp) e-CVT?
automatic transmission e-CVT
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Toyota
Model
Aqua
Generation
Aqua I (facelift 2017)
Modification (Engine)
1.5 (74 Hp) e-CVT
Start of production
2017
End of production
July, 2021
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Body type
Hatchback
Seats
5
Doors
5
Looking for Toyota Aqua on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - combined
2.6-2.9 l/100 km 90.5 - 81.1 US mpg
108.6 - 97.4 UK mpg
38.5 - 34.5 km/l
Fuel Type
Petrol (Gasoline)
Weight-to-power ratio
14.3 kg/Hp, 69.8 Hp/tonne
Weight-to-torque ratio
9.5 kg/Nm, 104.7 Nm/tonne

Electric and hybrid car specs

Battery technology
Nickel-metal hydride (NiMH)

Electric motor 1

Electric motor power
61 Hp
Electric motor Torque
169 Nm 125 lb.-ft.
Electric motor model/code
1LM
Electric motor type
Synchronous

Internal combustion engine specs

Power
74 Hp @ 4800 rpm.
Power per litre
49.5 Hp/l
Torque
111 Nm @ 3600-4400 rpm. 82 lb.-ft. @ 3600-4400 rpm.
Engine layout
Front, Transverse
Engine Model/Code
1NZ-FXE
Engine displacement
1496 cm3 91.29 cu. in.
Number of cylinders
4
Engine configuration
Inline
Cylinder Bore
75 mm 2.95 in.
Piston Stroke
84.7 mm 3.33 in.
Number of valves per cylinder
4
Fuel injection system
Multi-port manifold injection
Engine aspiration
Naturally aspirated engine
Valvetrain
VVT
Engine oil capacity
3.7 l 3.91 US qt | 3.26 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
4.5 l 4.76 US qt | 3.96 UK qt

Volume and weights

Kerb Weight
1060-1090 kg 2337 - 2403 lbs.
Max. weight
1335-1365 kg 2943 - 3009 lbs.
Max load
275 kg 606 lbs.
Fuel tank capacity
36 l 9.51 US gal | 7.92 UK gal

Dimensions

Length
4050 mm 159.45 in.
Width
1695 mm 66.73 in.
Height
1455 mm 57.28 in.
Wheelbase
2550 mm 100.39 in.
Front track
1470 mm 57.87 in.
Rear (Back) track
1460 mm 57.48 in.
Ride height (ground clearance)
140 mm 5.51 in.
Minimum turning circle (turning diameter)
9.6 m 31.5 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel
Front wheel drive
Number of gears and type of gearbox
automatic transmission e-CVT
Front suspension
Independent, McPherson type
Rear suspension
Torsion bar
Front brakes
Ventilated discs
Rear brakes
Drum
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tire size
185/60 R15
Wheel rim size
5.5J x 15
