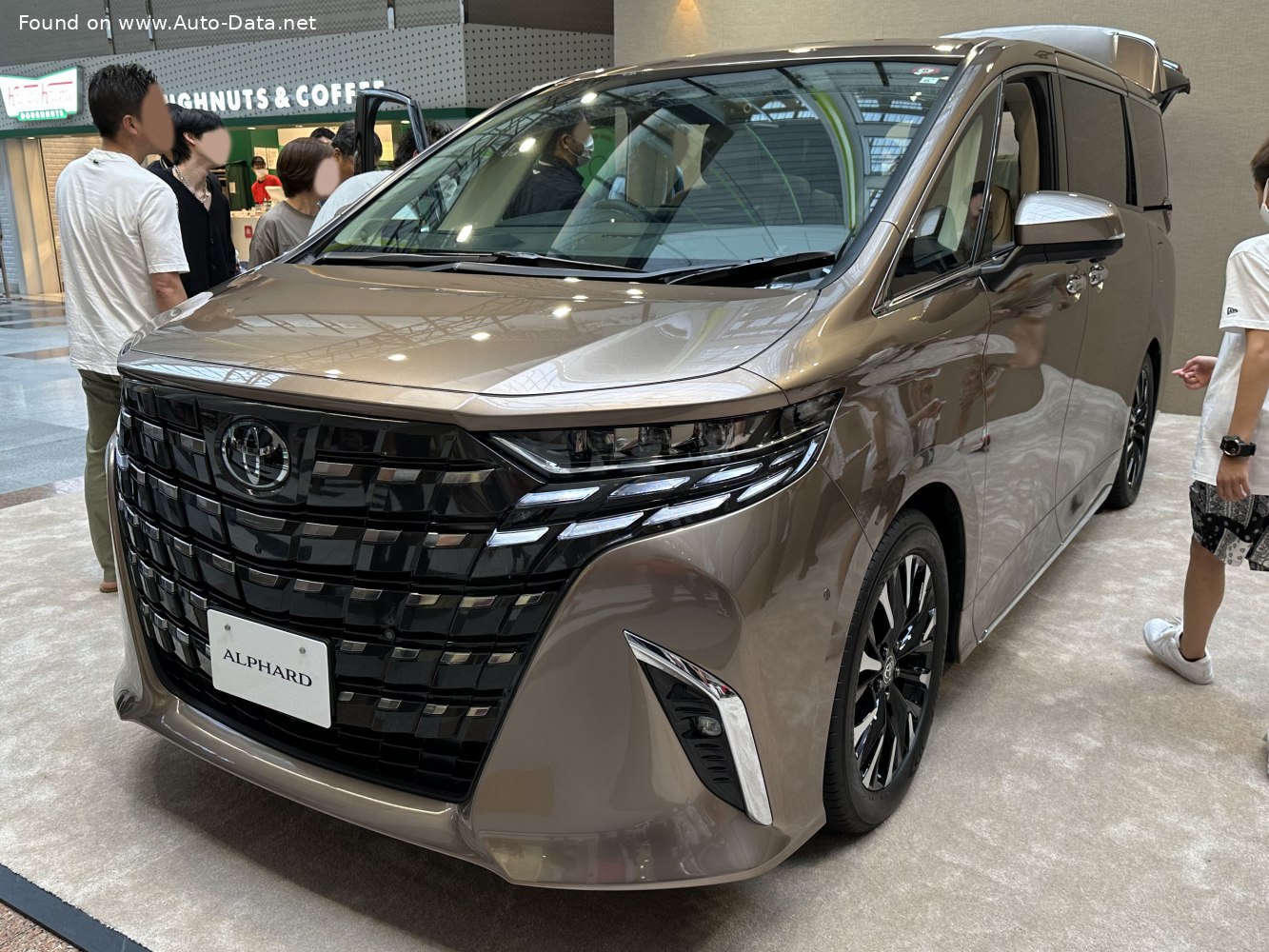

Toyota Alphard IV 2.5 (190 Hp) Hybrid e-CVT | Technical Specs, Fuel consumption, Battery, Electric range, Dimensions

Key specs

Toyota Alphard IV 2.5 (190 Hp) Hybrid e-CVT /Minivan 2023 - /

What is the body type of Toyota Alphard IV?

Minivan, 5 Doors, 7 Seats

What is the fuel consumption and economy of Toyota Alphard IV 2.5 (190 Hp) Hybrid e-CVT?

5.6-5.7 l/100 km
42 - 41.3 US mpg
50.4 - 49.6 UK mpg
17.9 - 17.5 km/l

What is the power output of Toyota Alphard Minivan 2023 2.5 (190 Hp) Hybrid e-CVT?

190 Hp, 236 Nm
174 lb.-ft.

What is the engine displacement of Toyota Alphard Minivan 2023 2.5 (190 Hp) Hybrid e-CVT?

2.5 l
2487 cm³
151.77 cu. in.

What is the number of cylinders in 2023 Toyota 2.5 (190 Hp) Hybrid e-CVT?

4, Inline

What is the drivetrain of Toyota Alphard IV Minivan 2023 2.5 (190 Hp) Hybrid e-CVT?

Front wheel drive. FHEV. The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.

What is the length of 2023 Toyota Alphard Minivan?

4995 mm
196.65 in.

What is the width of 2023 Toyota Alphard Minivan?

1850 mm
72.83 in.

What is the kerb weight of 2023 Toyota Alphard IV 2.5 (190 Hp) Hybrid e-CVT?

2160-2230 kg
4762 - 4916 lbs.

What is the maximum permissible mass of 2023 Toyota Alphard IV 2.5 (190 Hp) Hybrid e-CVT?

2615 kg
5765 lbs.

What are the number of gears and the gearbox type of 2023 Toyota Alphard IV 2.5 (190 Hp) Hybrid e-CVT?

automatic transmission e-CVT

Toyota Alphard IV 2.5 (190 Hp) Hybrid e-CVT

Toyota
- Toyota Alphard
  - Alphard IV
    - 2.5 (190 Hp) Hybrid E-Four e-CVT
    - 2.5 (190 Hp) Hybrid e-CVT
    - 2.5 (182 Hp) Super CVT-i
    - 2.5 (182 Hp) 4WD Super CVT-i

Compare

General information

Brand

Toyota

Model

Alphard

Generation

Alphard IV

Modification (Engine)

2.5 (190 Hp) Hybrid e-CVT

Start of production

June, 2023

Powertrain Architecture

FHEV (Full Hybrid Electric Vehicle)

Body type

Minivan

Seats

Doors

Looking for Toyota Alphard on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban (WLTC)

6.4-6.5 l/100 km 36.8 - 36.2 US mpg
44.1 - 43.5 UK mpg
15.6 - 15.4 km/l

Fuel consumption (economy) - extra urban (WLTC)

5.2 l/100 km 45.2 US mpg
54.3 UK mpg
19.2 km/l

Fuel consumption (economy) - combined (WLTC)

5.6-5.7 l/100 km 42 - 41.3 US mpg
50.4 - 49.6 UK mpg
17.9 - 17.5 km/l

Fuel Type

Petrol (Gasoline)

Weight-to-power ratio

11.4 kg/Hp, 88 Hp/tonne

Weight-to-torque ratio

9.2 kg/Nm, 109.3 Nm/tonne

Electric and hybrid car specs

Battery technology

Nickel-metal hydride (NiMH)

Battery location

Below the floor, under the front seats

Electric motor 1

Electric motor power

182 Hp

Electric motor Torque

270 Nm 199 lb.-ft.

Electric motor model/code

5NM

Electric motor location

Integrated into the transmission

Electric motor type

Synchronous

Internal combustion engine specs

Power

190 Hp @ 6000 rpm.

Power per litre

76.4 Hp/l

Torque

236 Nm @ 4300-4500 rpm. 174 lb.-ft. @ 4300-4500 rpm.

Engine layout

Front, Transverse

Engine Model/Code

A25A-FXS

Engine displacement

2487 cm³ 151.77 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

87.5 mm 3.44 in.

Piston Stroke

103.4 mm 4.07 in.

Number of valves per cylinder

Fuel injection system

Direct injection and Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

VVT

Engine systems

Start & Stop System

Volume and weights

Kerb Weight

2160-2230 kg 4762 - 4916 lbs.

Max. weight

2615 kg 5765 lbs.

Max load

385-455 kg 849 - 1003 lbs.

Fuel tank capacity

60 l 15.85 US gal | 13.2 UK gal

Dimensions

Length

4995 mm 196.65 in.

Width

1850 mm 72.83 in.

Height

1935 mm 76.18 in.

Wheelbase

3000 mm 118.11 in.

Front track

1600 mm 62.99 in.

Rear (Back) track

1600 mm 62.99 in.

Ride height (ground clearance)

150 mm 5.91 in.

Minimum turning circle (turning diameter)

11.8 m 38.71 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

automatic transmission e-CVT

Front suspension

Coil spring, Independent, McPherson type

Rear suspension

Double wishbone, Coil spring

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

225/65 R17; 225/60 R18

Wheel rim size

6.5J x 17; 7J x 18
