Tesla Model 3 (facelift 2020) Standard Plus 54 kWh (325 Hp) | Technical specs, data, battery, electric range, Dimensions

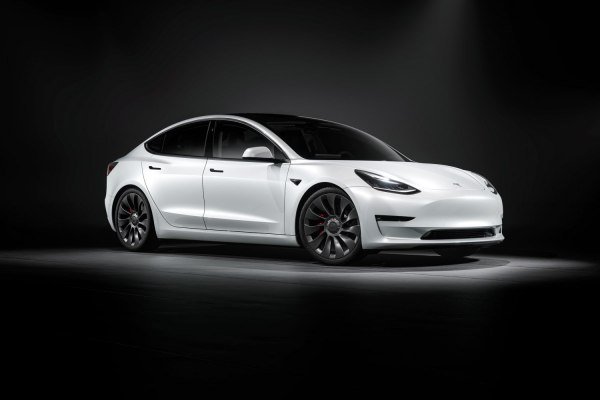

2021 Tesla Model 3 (facelift 2020) - Photo 1

Key specs

Tesla Model 3 (facelift 2020) Standard Plus 54 kWh (325 Hp) /Sedan, Fastback 2020 - 2021/

What is the body type of Tesla Model 3 (facelift 2020)?

Sedan, Fastback, 4 Doors, 5 Seats

What is the all-electric range of Standard Plus 54 kWh (325 Hp)?

448 km
278 mi

How fast is 2020 Model 3 (facelift 2020) Standard Plus 54 kWh (325 Hp)?

225 km/h | 140 mph
0-100 km/h: 5.6 sec
0-60 mph: 5.3 sec

What is the power output of Tesla Model 3 Sedan, Fastback 2020 Standard Plus 54 kWh (325 Hp)?

325 Hp, 420 Nm
310 lb.-ft.

What is the drivetrain of Tesla Model 3 (facelift 2020) Sedan, Fastback 2020 Standard Plus 54 kWh (325 Hp)?

Rear wheel drive. BEV (Electric Vehicle). One electric motor drives the rear wheels.

What is the length of 2020 Tesla Model 3 Sedan, Fastback?

4694 mm
184.8 in.

What is the width of 2020 Tesla Model 3 Sedan, Fastback?

1849 mm
72.8 in.

What is the kerb weight of 2020 Tesla Model 3 (facelift 2020) Standard Plus 54 kWh (325 Hp)?

1655 kg
3649 lbs.

What is the maximum permissible mass of 2020 Tesla Model 3 (facelift 2020) Standard Plus 54 kWh (325 Hp)?

2060 kg
4542 lbs.

What is the trunk (boot) capacity of 2020 Tesla Model 3 Sedan, Fastback?

649 l
22.9 cu. ft.

What are the number of gears and the gearbox type of 2020 Tesla Model 3 (facelift 2020) Standard Plus 54 kWh (325 Hp)?

1, automatic transmission

Tesla
- Tesla Model 3
  - Model 3 (facelift 2020)
    - Standard Plus 54 kWh (325 Hp)
    - Performance 80.5 kWh (513 Hp) Dual Motor AWD
    - Long Range 80.5 kWh (441 Hp) Dual Motor AWD
    - Long Range 80.5 kWh (441 Hp) Dual Motor AWD
    - 60 kWh (325 Hp)

Compare

General information

Brand

Tesla

Model

Model 3

Generation

Model 3 (facelift 2020)

Modification (Engine)

Standard Plus 54 kWh (325 Hp)

Start of production

October, 2020

End of production

November, 2021

Powertrain Architecture

BEV (Electric Vehicle)

Body type

Sedan, Fastback

Seats

Doors

Looking for Tesla Model 3 on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Acceleration 0 - 100 km/h

5.6 sec

Acceleration 0 - 62 mph

5.6 sec

Acceleration 0 - 60 mph

5.3 sec

Maximum speed

225 km/h 140 mph

Weight-to-power ratio

5.1 kg/Hp, 196.4 Hp/tonne

Weight-to-torque ratio

3.9 kg/Nm, 253.8 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

54 kWh

Battery technology

Lithium iron phosphate (LiFePO₄)

Electric range (WLTP)

448 km 278 mi

Electric range

421 km 262 mi

Charging times

Electric motor 1

Electric motor power

325 Hp @ 5525 rpm.

Electric motor Torque

420 Nm @ 325-5200 rpm. 310 lb.-ft. @ 325-5200 rpm.

Electric motor location

Rear axle, Transverse

System power

325 Hp @ 5525 rpm.

System torque

420 Nm @ 325-5200 rpm. 310 lb.-ft. @ 325-5200 rpm.

Volume and weights

Kerb Weight

1655 kg 3649 lbs.

Max. weight

2060 kg 4542 lbs.

Max load

405 kg 893 lbs.

Trunk (boot) space - minimum

649 l 22.9 cu. ft.

Dimensions

Length

4694 mm 184.8 in.

Width

1849 mm 72.8 in.

Width with mirrors folded

1933 mm 76.1 in.

Width including mirrors

2088 mm 82.2 in.

Height

1443 mm 56.81 in.

Wheelbase

2875 mm 113.19 in.

Front track

1580 mm 62.2 in.

Rear (Back) track

1580 mm 62.2 in.

Front overhang

841 mm 33.11 in.

Rear overhang

978 mm 38.5 in.

Ride height (ground clearance)

140 mm 5.51 in.

Minimum turning circle (turning diameter)

11.6 m 38.06 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the rear wheels.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Coil spring, Double wishbone, Anti-roll bar

Rear suspension

Independent multi-link suspension, Coil spring

Front brakes

Ventilated discs, 320x25 mm

Rear brakes

Ventilated discs, 335x20 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

235/45 R18; 235/40 R19

Wheel rim size

8.5J x 18; 8.5J x 19

Specs of Tesla Model 3 (facelift 2020) Standard Plus 54 kWh (325 Hp) /2020, 2021/
