Specs of Stelato S9T 1.5T 37 kWh (309 Hp) Extended Range Hybrid /2025, 2026/

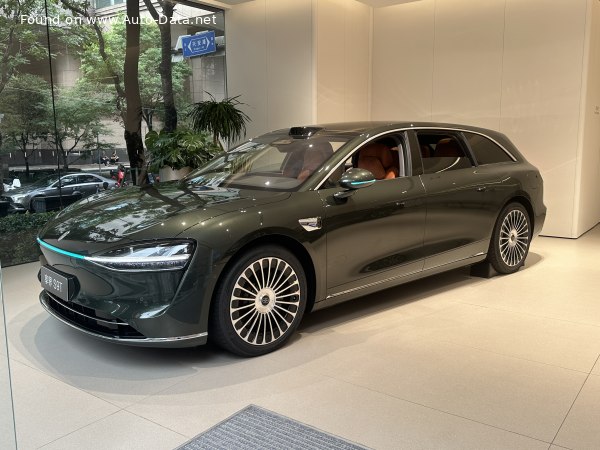

2025 Stelato S9T - Photo 1

Key specs

Stelato S9T 1.5T 37 kWh (309 Hp) Extended Range Hybrid /Station wagon (estate) 2025 - /

What is the body type of Stelato S9T?
Station wagon (estate), 5 Doors, 5 Seats
What is the fuel consumption and economy of Stelato S9T 1.5T 37 kWh (309 Hp) Extended Range Hybrid?
0.56-6.15 l/100 km
420 - 38.2 US mpg
504.4 - 45.9 UK mpg
178.6 - 16.3 km/l
How environmentally friendly is Stelato S9 1.5T 37 kWh (309 Hp) Extended Range Hybrid?
China VI b
What is the all-electric range of 1.5T 37 kWh (309 Hp) Extended Range Hybrid?
201-251 km
125 - 156 mi
What is the electricity consumption of Stelato S9T 1.5T 37 kWh (309 Hp) Extended Range Hybrid?
17.9 kWh/100 km
28.81 kWh/100 mi
117 MPGe
5.6 km/kWh
3.5 mi/kWh
How fast is 2025 S9T 1.5T 37 kWh (309 Hp) Extended Range Hybrid?
204 km/h | 127 mph
0-100 km/h: 7.32 sec
0-60 mph: 7 sec
What is the power output of Stelato S9 Station wagon (estate) 2025 1.5T 37 kWh (309 Hp) Extended Range Hybrid?
309 Hp, 320 Nm
236 lb.-ft.
What is the engine displacement of Stelato S9 Station wagon (estate) 2025 1.5T 37 kWh (309 Hp) Extended Range Hybrid?
1.5 l
1498 cm3
91.41 cu. in.
What is the number of cylinders in 2025 Stelato 1.5T 37 kWh (309 Hp) Extended Range Hybrid?
4, Inline
What is the drivetrain of Stelato S9T Station wagon (estate) 2025 1.5T 37 kWh (309 Hp) Extended Range Hybrid?
Rear wheel drive. PHEV (Plug-in Hybrid Electric Vehicle). The Internal combustion engine (ICE) drives the generator only, with no mechanical connection to the drive. An electric motor drives the rear wheels.
What is the length of 2025 Stelato S9 Station wagon (estate)?
5160 mm
203.15 in.
What is the width of 2025 Stelato S9 Station wagon (estate)?
2005 mm
78.94 in.
What is the kerb weight of 2025 Stelato S9T 1.5T 37 kWh (309 Hp) Extended Range Hybrid?
2354 kg
5190 lbs.
What is the maximum permissible mass of 2025 Stelato S9T 1.5T 37 kWh (309 Hp) Extended Range Hybrid?
2759 kg
6083 lbs.
What is the trunk (boot) capacity of 2025 Stelato S9 Station wagon (estate)?
729 - 1677 l
25.7 - 59.2 cu. ft.
What are the number of gears and the gearbox type of 2025 Stelato S9T 1.5T 37 kWh (309 Hp) Extended Range Hybrid?
1, automatic transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Stelato
Model
S9
Generation
S9T
Modification (Engine)
1.5T 37 kWh (309 Hp) Extended Range Hybrid
Start of production
September, 2025
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Body type
Station wagon (estate)
Seats
5
Doors
5
Looking for Stelato S9 on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - combined (WLTC)
0.56-6.15 l/100 km 420 - 38.2 US mpg
504.4 - 45.9 UK mpg
178.6 - 16.3 km/l
Fuel Type
Petrol / electricity
Acceleration 0 - 100 km/h
7.32 sec
Acceleration 0 - 62 mph
7.32 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
7 sec
Maximum speed
204 km/h 127 mph
Emission standard
China VI b
Weight-to-power ratio
7.6 kg/Hp, 131.3 Hp/tonne
Weight-to-torque ratio
7.4 kg/Nm, 135.9 Nm/tonne

Electric and hybrid car specs

Gross battery capacity
37 kWh
Battery voltage
400 V
Battery technology
Lithium iron phosphate (LiFePO4)
Electric range (CLTC)
201-251 km 125 - 156 mi
Average Energy consumption (CLTC)
17.9 kWh/100 km 28.81 kWh/100 mi
117 MPGe
5.6 km/kWh
3.5 mi/kWh
Charging ports
Log in to see.Log in to see.

Electric motor 1

Electric motor power
309 Hp
Electric motor Torque
320 Nm 236 lb.-ft.
Electric motor model/code
TZ210XYAP4
Electric motor location
Rear axle, Transverse
Electric motor type
Synchronous
System power
309 Hp
System torque
320 Nm 236 lb.-ft.

Internal combustion engine specs

Power
160 Hp
Power per litre
106.8 Hp/l
Engine layout
Front, Transverse
Engine Model/Code
A156T2H
Engine displacement
1498 cm3 91.41 cu. in.
Number of cylinders
4
Engine configuration
Inline
Number of valves per cylinder
4
Fuel injection system
Direct injection
Engine aspiration
Turbocharger, Intercooler
Valvetrain
DOHC

Volume and weights

Kerb Weight
2354 kg 5190 lbs.
Max. weight
2759 kg 6083 lbs.
Max load
405 kg 893 lbs.
Trunk (boot) space - minimum
729 l 25.7 cu. ft.
Trunk (boot) space - maximum
1677 l 59.2 cu. ft.
Fuel tank capacity
52 l 13.74 US gal | 11.44 UK gal

Dimensions

Length
5160 mm 203.15 in.
Width
2005 mm 78.94 in.
Height
1492 mm 58.74 in.
Wheelbase
3050 mm 120.08 in.
Front track
1706 mm 67.17 in.
Rear (Back) track
1738 mm 68.43 in.
Drag coefficient (Cd)
0.23
Approach angle
13°
Departure angle
15°

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the generator only, with no mechanical connection to the drive. An electric motor drives the rear wheels.
Drive wheel
Rear wheel drive
Number of gears and type of gearbox
1 gears, automatic transmission
Front suspension
Double wishbone, Anti-roll bar, Air suspension
Rear suspension
Independent multi-link suspension, Air suspension, Anti-roll bar
Front brakes
Ventilated discs
Rear brakes
Ventilated discs
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tire size
245/45 R20; 255/45 R20; 255/40 R21
Wheel rim size
20; 21
