Skoda Fabia II 1.2 i HTP (60 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

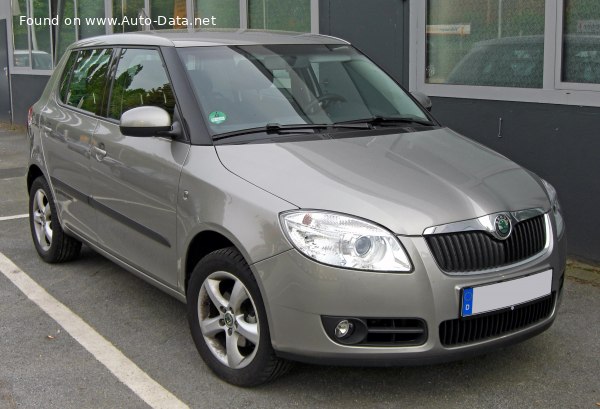

Skoda Fabia II 1.2 i HTP (60 Hp) /Hatchback 2007 - 2010/

What is the body type of Skoda Fabia II?

Hatchback, 5 Doors, 5 Seats

What is the fuel consumption and economy of Skoda Fabia II 1.2 i HTP (60 Hp)?

5.9 l/100 km
39.9 US mpg
47.9 UK mpg
16.9 km/l

How environmentally friendly is Skoda Fabia 1.2 i HTP (60 Hp)?

Euro 4

How fast is 2007 Fabia II 1.2 i HTP (60 Hp)?

155 km/h | 96 mph
0-100 km/h: 16.5 sec
0-60 mph: 15.7 sec

What is the power output of Skoda Fabia Hatchback 2007 1.2 i HTP (60 Hp)?

60 Hp, 108 Nm
80 lb.-ft.

What is the engine displacement of Skoda Fabia Hatchback 2007 1.2 i HTP (60 Hp)?

1.2 l
1198 cm³
73.11 cu. in.

What is the number of cylinders in 2007 Skoda 1.2 i HTP (60 Hp)?

3, Inline

What is the drivetrain of Skoda Fabia II Hatchback 2007 1.2 i HTP (60 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2007 Skoda Fabia Hatchback?

3992 mm
157.17 in.

What is the width of 2007 Skoda Fabia Hatchback?

1642 mm
64.65 in.

What is the kerb weight of 2007 Skoda Fabia II 1.2 i HTP (60 Hp)?

1040 kg
2293 lbs.

What is the maximum permissible mass of 2007 Skoda Fabia II 1.2 i HTP (60 Hp)?

1555 kg
3428 lbs.

What is the trunk (boot) capacity of 2007 Skoda Fabia Hatchback?

300 - 1163 l
10.6 - 41.1 cu. ft.

What is the number of gears in What is the gearbox type of 2007 Skoda Fabia II 1.2 i HTP (60 Hp)?

5, manual transmission

Skoda
- Skoda Fabia
  - Fabia II

Compare

General information

Brand

Skoda

Model

Fabia

Generation

Fabia II

Modification (Engine)

1.2 i HTP (60 Hp)

Start of production

2007 year

End of production

2010 year

Powertrain Architecture

Internal Combustion engine

Body type

Hatchback

Seats

Doors

Performance specs

Fuel consumption (economy) - urban

7.8 l/100 km 30.2 US mpg
36.2 UK mpg
12.8 km/l

Fuel consumption (economy) - extra urban

4.8 l/100 km 49 US mpg
58.9 UK mpg
20.8 km/l

Fuel consumption (economy) - combined

5.9 l/100 km 39.9 US mpg
47.9 UK mpg
16.9 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

16.5 sec

Acceleration 0 - 62 mph

16.5 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

15.7 sec

Maximum speed

155 km/h 96 mph

Emission standard

Euro 4

Weight-to-power ratio

17.3 kg/Hp, 57.7 Hp/tonne

Weight-to-torque ratio

9.6 kg/Nm, 103.8 Nm/tonne

Engine specs

Power

60 Hp @ 5200 rpm.

Power per litre

50.1 Hp/l

Torque

108 Nm @ 3000 rpm. 80 lb.-ft. @ 3000 rpm.

Engine layout

Front, Transverse

Engine Model/Code

EA111 / BBM

Engine displacement

1198 cm³ 73.11 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

76.5 mm 3.01 in.

Piston Stroke

86.9 mm 3.42 in.

Compression ratio

10.3:1

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Engine oil capacity

2.8 l 2.96 US qt | 2.46 UK qt

Engine oil specification

Coolant

5.2 l 5.49 US qt | 4.58 UK qt

Volume and weights

Kerb Weight

1040 kg 2293 lbs.

Max. weight

1555 kg 3428 lbs.

Max load

515 kg 1135 lbs.

Trunk (boot) space - minimum

300 l 10.6 cu. ft.

Trunk (boot) space - maximum

1163 l 41.1 cu. ft.

Fuel tank capacity

45 l 11.89 US gal | 9.9 UK gal

Dimensions

Length

3992 mm 157.17 in.

Width

1642 mm 64.65 in.

Height

1498 mm 58.98 in.

Wheelbase

2462 mm 96.93 in.

Front track

1436 mm 56.54 in.

Rear (Back) track

1426 mm 56.14 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Suspension strut

Rear suspension

Coil spring

Front brakes

Ventilated discs

Rear brakes

Drum

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Tires size

165/70 R14

Specs of Skoda Fabia II 1.2 i HTP (60 Hp) /2007, 2008, 2009, 2010/
