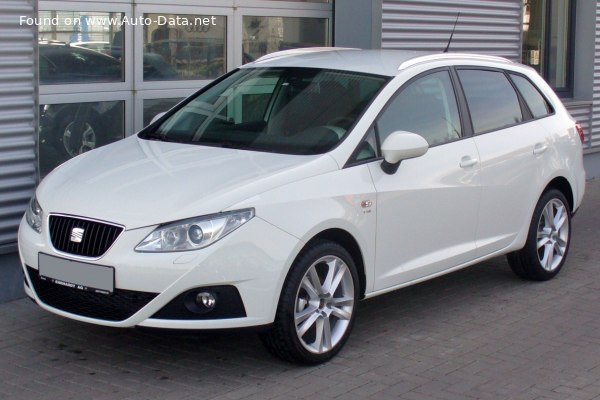

Seat Ibiza IV ST 1.2 TSI (105 Hp) DSG | Technical specs, data, fuel consumption, Dimensions

Key specs

Seat Ibiza IV ST 1.2 TSI (105 Hp) DSG /Station wagon (estate) 2010 - 2012/

What is the body type of Seat Ibiza IV ST?

Station wagon (estate), 5 Doors, 5 Seats

What is the fuel consumption and economy of Seat Ibiza IV ST 1.2 TSI (105 Hp) DSG?

5.3 l/100 km
44.4 US mpg
53.3 UK mpg
18.9 km/l

How environmentally friendly is Seat Ibiza 1.2 TSI (105 Hp) DSG?

124 g/km CO₂
Euro 5

How fast is 2010 Ibiza IV ST 1.2 TSI (105 Hp) DSG?

190 km/h | 118 mph
0-100 km/h: 10 sec
0-60 mph: 9.5 sec

What is the power output of Seat Ibiza Station wagon (estate) 2010 1.2 TSI (105 Hp) DSG?

105 Hp, 175 Nm
129 lb.-ft.

What is the engine displacement of Seat Ibiza Station wagon (estate) 2010 1.2 TSI (105 Hp) DSG?

1.2 l
1197 cm³
73.05 cu. in.

What is the number of cylinders in 2010 Seat 1.2 TSI (105 Hp) DSG?

4, Inline

What is the drivetrain of Seat Ibiza IV ST Station wagon (estate) 2010 1.2 TSI (105 Hp) DSG?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2010 Seat Ibiza Station wagon (estate)?

4227 mm
166.42 in.

What is the width of 2010 Seat Ibiza Station wagon (estate)?

1693 mm
66.65 in.

What is the kerb weight of 2010 Seat Ibiza IV ST 1.2 TSI (105 Hp) DSG?

1090 kg
2403 lbs.

What is the maximum permissible mass of 2010 Seat Ibiza IV ST 1.2 TSI (105 Hp) DSG?

1605 kg
3538 lbs.

What is the trunk (boot) capacity of 2010 Seat Ibiza Station wagon (estate)?

430 l
15.2 cu. ft.

What are the number of gears and the gearbox type of 2010 Seat Ibiza IV ST 1.2 TSI (105 Hp) DSG?

7, automatic transmission DSG

Seat
- Seat Ibiza
  - Ibiza IV ST
    - 1.6 TDI (105 Hp) DPF
    - 1.6 TDI (90 Hp)
    - 1.4 (85 Hp)
    - 1.2 TSI (105 Hp) Start & Stop Ecomotive
    - 1.2 TSI (105 Hp) DSG
    - 1.2 TDI (75 Hp) Start & Stop E-Ecomotive
    - 1.2 TDI (75 Hp)
    - 1.2 (70 Hp)

Compare

General information

Brand

Seat

Model

Ibiza

Generation

Ibiza IV ST

Modification (Engine)

1.2 TSI (105 Hp) DSG

Start of production

2010

End of production

2012

Powertrain Architecture

Internal Combustion engine

Body type

Station wagon (estate)

Seats

Doors

Looking for Seat Ibiza on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban (NEDC)

7 l/100 km 33.6 US mpg
40.4 UK mpg
14.3 km/l

Fuel consumption (economy) - extra urban (NEDC)

4.4 l/100 km 53.5 US mpg
64.2 UK mpg
22.7 km/l

Fuel consumption (economy) - combined (NEDC)

5.3 l/100 km 44.4 US mpg
53.3 UK mpg
18.9 km/l

CO₂ emissions (NEDC)

124 g/km

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

10 sec

Acceleration 0 - 62 mph

10 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

9.5 sec

Maximum speed

190 km/h 118 mph

Emission standard

Euro 5

Weight-to-power ratio

10.4 kg/Hp, 96.3 Hp/tonne

Weight-to-torque ratio

6.2 kg/Nm, 160.6 Nm/tonne

Engine specs

Power

105 Hp @ 5000 rpm.

Power per litre

87.7 Hp/l

Torque

175 Nm @ 1550-4100 rpm. 129 lb.-ft. @ 1550-4100 rpm.

Engine layout

Front, Transverse

Engine Model/Code

CBZB

Engine displacement

1197 cm³ 73.05 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

71 mm 2.8 in.

Piston Stroke

75.6 mm 2.98 in.

Compression ratio

10:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

3.6 l 3.8 US qt | 3.17 UK qt

Engine oil specification

Coolant

5.6 l 5.92 US qt | 4.93 UK qt

Volume and weights

Kerb Weight

1090 kg 2403 lbs.

Max. weight

1605 kg 3538 lbs.

Max load

515 kg 1135 lbs.

Trunk (boot) space - minimum

430 l 15.2 cu. ft.

Fuel tank capacity

45 l 11.89 US gal | 9.9 UK gal

Permitted trailer load with brakes (12%)

1000 kg 2205 lbs.

Dimensions

Length

4227 mm 166.42 in.

Width

1693 mm 66.65 in.

Height

1445 mm 56.89 in.

Wheelbase

2469 mm 97.2 in.

Front track

1465 mm 57.68 in.

Rear (Back) track

1457 mm 57.36 in.

Minimum turning circle (turning diameter)

10.48 m 34.38 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

7 gears, automatic transmission DSG

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Semi-independent beam with anti-roll bar

Front brakes

Ventilated discs, 256x22 mm

Rear brakes

Disc, 232x9 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

185/60 R15; 215/45 R16; 215/40 R17

Wheel rim size

6J x 15; 7J x 16; 7J x 17

Specs of Seat Ibiza IV ST 1.2 TSI (105 Hp) DSG /2010, 2011, 2012/
