Specs of Santana PS-10 Pick-up 2.8 TD (125 Hp) 4WD /2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011/

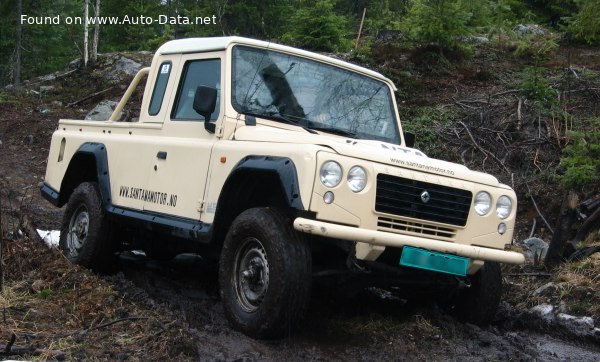

2004 Santana PS-10 Pick-up - Photo 1
Santana PS-10 Pick-up - Photo 2Santana PS-10 Pick-up - Photo 3Santana PS-10 Pick-up - Photo 4

Key specs

Santana PS-10 Pick-up 2.8 TD (125 Hp) 4WD /Off-road, Pick-up 2004 - 2011/

What is the body type of Santana PS-10 Pick-up?
Off-road, Pick-up, 2 Doors, 2 Seats
How environmentally friendly is Santana PS-10 2.8 TD (125 Hp) 4WD?
Euro 3
How fast is 2004 PS-10 Pick-up 2.8 TD (125 Hp) 4WD?
145 km/h | 90 mph
What is the power output of Santana PS-10 Off-road, Pick-up 2004 2.8 TD (125 Hp) 4WD?
125 Hp, 275 Nm
203 lb.-ft.
What is the engine displacement of Santana PS-10 Off-road, Pick-up 2004 2.8 TD (125 Hp) 4WD?
2.8 l
2800 cm3
170.87 cu. in.
What is the number of cylinders in 2004 Santana 2.8 TD (125 Hp) 4WD?
4, Inline
What is the drivetrain of Santana PS-10 Pick-up Off-road, Pick-up 2004 2.8 TD (125 Hp) 4WD?
All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
What is the length of 2004 Santana PS-10 Off-road, Pick-up?
4541 mm
178.78 in.
What is the width of 2004 Santana PS-10 Off-road, Pick-up?
1750 mm
68.9 in.
What is the kerb weight of 2004 Santana PS-10 Pick-up 2.8 TD (125 Hp) 4WD?
1915 kg
4222 lbs.
What is the maximum permissible mass of 2004 Santana PS-10 Pick-up 2.8 TD (125 Hp) 4WD?
3050 kg
6724 lbs.
What are the number of gears and the gearbox type of 2004 Santana PS-10 Pick-up 2.8 TD (125 Hp) 4WD?
5, manual transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Santana
Model
PS-10
Generation
PS-10 Pick-up
Modification (Engine)
2.8 TD (125 Hp) 4WD
Start of production
2004
End of production
2011
Powertrain Architecture
Internal Combustion engine
Body type
Off-road, Pick-up
Seats
2
Doors
2
Looking for Santana PS-10 on the used-car market?
Check its history →

Performance specs

Fuel Type
Diesel
Maximum speed
145 km/h 90 mph
Emission standard
Euro 3
Weight-to-power ratio
15.3 kg/Hp, 65.3 Hp/tonne
Weight-to-torque ratio
7 kg/Nm, 143.6 Nm/tonne

Engine specs

Power
125 Hp @ 3600 rpm.
Power per litre
44.6 Hp/l
Torque
275 Nm @ 1800 rpm. 203 lb.-ft. @ 1800 rpm.
Engine layout
Front, Longitudinal
Engine Model/Code
8140.43P
Engine displacement
2800 cm3 170.87 cu. in.
Number of cylinders
4
Engine configuration
Inline
Cylinder Bore
94.4 mm 3.72 in.
Piston Stroke
100 mm 3.94 in.
Fuel injection system
Diesel Commonrail
Engine aspiration
Turbocharger, Intercooler
Engine oil capacity
7 l 7.4 US qt | 6.16 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
12 l 12.68 US qt | 10.56 UK qt

Volume and weights

Kerb Weight
1915 kg 4222 lbs.
Max. weight
3050 kg 6724 lbs.
Max load
1135 kg 2502 lbs.
Fuel tank capacity
100 l 26.42 US gal | 22 UK gal
Permitted trailer load with brakes (12%)
3000 kg 6614 lbs.
Permitted trailer load without brakes
750 kg 1653 lbs.

Dimensions

Length
4541 mm 178.78 in.
Width
1750 mm 68.9 in.
Height
2000 mm 78.74 in.
Wheelbase
2768 mm 108.98 in.
Front track
1486 mm 58.5 in.
Rear (Back) track
1486 mm 58.5 in.
Front overhang
670 mm 26.38 in.
Rear overhang
1103 mm 43.43 in.
Ride height (ground clearance)
200 mm 7.87 in.
Minimum turning circle (turning diameter)
14.6 m 47.9 ft.
Approach angle
50°
Departure angle
30°
Ramp-over (breakover) angle
29°
Climb angle
45°
Wading depth
500 mm 19.69 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel
All wheel drive (4x4)
Number of gears and type of gearbox
5 gears, manual transmission
Front suspension
Rigid axle suspension, Leaf spring
Rear suspension
Rigid axle suspension, Leaf spring
Front brakes
Ventilated discs
Rear brakes
Disc, 290 mm
Power steering
Hydraulic Steering
Tire size
235/85 R16
Wheel rim size
16
