Specs of SAIC H5 1.5T 32.6 kWh (204 Hp) Extended Range /2025, 2026/

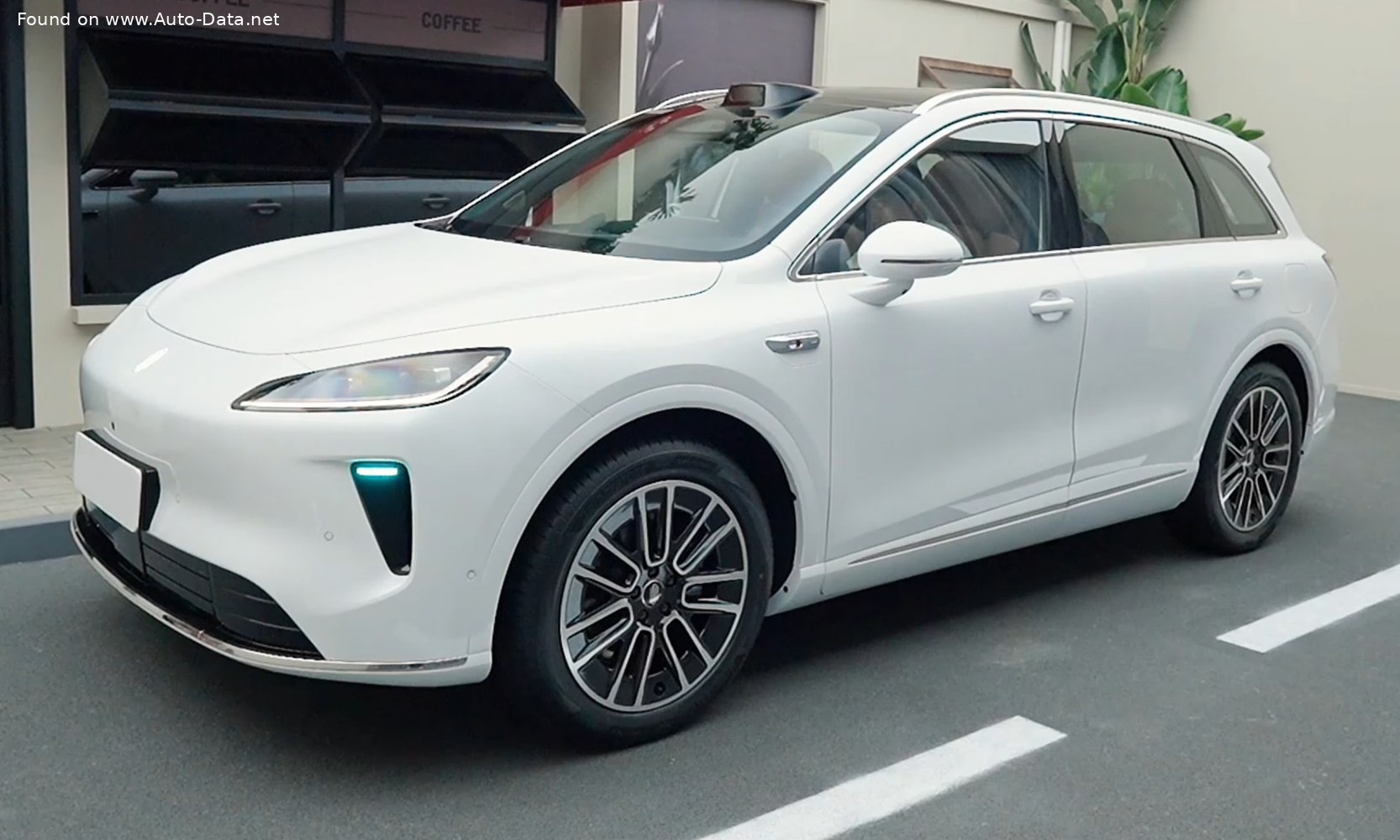

2025 SAIC H5 - Photo 1
SAIC H5 - Photo 2SAIC H5 - Photo 3SAIC H5 - Photo 4

Key specs

SAIC H5 1.5T 32.6 kWh (204 Hp) Extended Range /SUV 2025 - /

What is the body type of SAIC H5?
SUV, 5 Doors, 5 Seats
What is the fuel consumption and economy of SAIC H5 1.5T 32.6 kWh (204 Hp) Extended Range?
0.62-5.19 l/100 km
379.4 - 45.3 US mpg
455.6 - 54.4 UK mpg
161.3 - 19.3 km/l
How environmentally friendly is SAIC H5 1.5T 32.6 kWh (204 Hp) Extended Range?
China VI b
What is the all-electric range of 1.5T 32.6 kWh (204 Hp) Extended Range?
200-235 km
124 - 146 mi
What is the electricity consumption of SAIC H5 1.5T 32.6 kWh (204 Hp) Extended Range?
17.2 kWh/100 km
27.68 kWh/100 mi
122 MPGe
5.8 km/kWh
3.6 mi/kWh
How fast is 2025 H5 1.5T 32.6 kWh (204 Hp) Extended Range?
180 km/h | 112 mph
0-100 km/h: 7.8 sec
0-60 mph: 7.4 sec
What is the power output of SAIC H5 SUV 2025 1.5T 32.6 kWh (204 Hp) Extended Range?
204 Hp, 350 Nm
258 lb.-ft.
What is the engine displacement of SAIC H5 SUV 2025 1.5T 32.6 kWh (204 Hp) Extended Range?
1.5 l
1498 cm3
91.41 cu. in.
What is the number of cylinders in 2025 SAIC 1.5T 32.6 kWh (204 Hp) Extended Range?
4, Inline
What is the drivetrain of SAIC H5 SUV 2025 1.5T 32.6 kWh (204 Hp) Extended Range?
Rear wheel drive. PHEV (Plug-in Hybrid Electric Vehicle). The Internal combustion engine (ICE) drives the generator only, with no mechanical connection to the drive. An electric motor drives the rear wheels.
What is the length of 2025 SAIC H5 SUV?
4780 mm
188.19 in.
What is the width of 2025 SAIC H5 SUV?
1910 mm
75.2 in.
What is the kerb weight of 2025 SAIC H5 1.5T 32.6 kWh (204 Hp) Extended Range?
2000 kg
4409 lbs.
What is the maximum permissible mass of 2025 SAIC H5 1.5T 32.6 kWh (204 Hp) Extended Range?
2410 kg
5313 lbs.
What is the trunk (boot) capacity of 2025 SAIC H5 SUV?
593 - 1829 l
20.9 - 64.6 cu. ft.
What is the number of gears in What is the gearbox type of 2025 SAIC H5 1.5T 32.6 kWh (204 Hp) Extended Range?
1, automatic transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
SAIC
Model
H5
Generation
H5
Modification (Engine)
1.5T 32.6 kWh (204 Hp) Extended Range
Start of production
September, 2025 year
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Body type
SUV
Seats
5
Doors
5
Looking for SAIC H5 on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - combined (WLTC)
0.62-5.19 l/100 km 379.4 - 45.3 US mpg
455.6 - 54.4 UK mpg
161.3 - 19.3 km/l
Fuel Type
Petrol / electricity
Acceleration 0 - 100 km/h
7.8 sec
Acceleration 0 - 62 mph
7.8 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
7.4 sec
Maximum speed
180 km/h 112 mph
100 km/h - 0
35.12 m
Emission standard
China VI b
Weight-to-power ratio
9.8 kg/Hp, 102 Hp/tonne
Weight-to-torque ratio
5.7 kg/Nm, 175 Nm/tonne

Electric cars and hybrids specs

Gross battery capacity
32.6 kWh
Battery voltage
400 V
Battery technology
Lithium iron phosphate (LiFePO4)
Battery location
Below the floor
Electric range
200-235 km 124 - 146 mi
Average Energy consumption
17.2 kWh/100 km 27.68 kWh/100 mi
122 MPGe
5.8 km/kWh
3.6 mi/kWh
Charging ports
Log in to see.Log in to see.

Electric motor 1

Electric motor power
204 Hp
Electric motor Torque
350 Nm 258 lb.-ft.
Electric motor model/code
TZ204XS1352
Electric motor location
Rear axle, Transverse
Electric motor type
Synchronous
System power
204 Hp
System torque
350 Nm 258 lb.-ft.

Internal combustion engine specs

Power
98 Hp
Power per litre
65.4 Hp/l
Engine layout
Front, Transverse
Engine Model/Code
15FMC
Engine displacement
1498 cm3 91.41 cu. in.
Number of cylinders
4
Engine configuration
Inline
Number of valves per cylinder
4
Fuel injection system
Multi-port manifold injection
Engine aspiration
Naturally aspirated engine
Valvetrain
DOHC

Volume and weights

Kerb Weight
2000 kg 4409 lbs.
Max. weight
2410 kg 5313 lbs.
Max load
410 kg 904 lbs.
Trunk (boot) space - minimum
593 l 20.9 cu. ft.
Trunk (boot) space - maximum
1829 l 64.6 cu. ft.
Fuel tank capacity
50 l 13.21 US gal | 11 UK gal

Dimensions

Length
4780 mm 188.19 in.
Width
1910 mm 75.2 in.
Height
1657-1664 mm 65.24 - 65.51 in.
Wheelbase
2840 mm 111.81 in.
Front track
1623 mm 63.9 in.
Rear (Back) track
1612 mm 63.46 in.
Minimum turning circle (turning diameter)
11 m 36.09 ft.
Approach angle
17°
Departure angle
22°

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the generator only, with no mechanical connection to the drive. An electric motor drives the rear wheels.
Drive wheel
Rear wheel drive
Number of gears and type of gearbox
1 gears, automatic transmission
Front suspension
Independent, McPherson type with coil spring and anti-roll bar
Rear suspension
Independent multi-link spring suspension with anti-roll bar
Front brakes
Ventilated discs
Rear brakes
Ventilated discs
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tires size
235/55 R19; 245/50 R20
Wheel rims size
19; 20
