Saab 9-5 II 2.0i (220 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

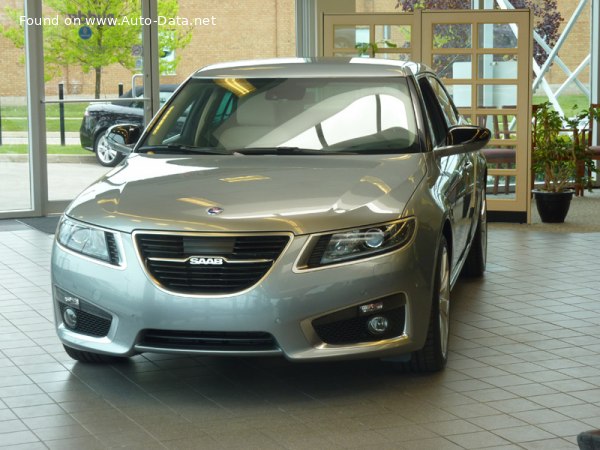

Saab 9-5 II 2.0i (220 Hp) /Sedan 2009 - 2011/

What is the body type of Saab 9-5 II?

Sedan, 4 Doors, 5 Seats

What is the power output of Saab 9-5 Sedan 2009 2.0i (220 Hp)?

220 Hp, 350 Nm
258 lb.-ft.

What is the engine displacement of Saab 9-5 Sedan 2009 2.0i (220 Hp)?

2.0 l
1998 cm³
121.93 cu. in.

What is the number of cylinders in 2009 Saab 2.0i (220 Hp)?

4, Inline

What is the drivetrain of Saab 9-5 II Sedan 2009 2.0i (220 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2009 Saab 9-5 Sedan?

5009 mm
197.2 in.

What is the width of 2009 Saab 9-5 Sedan?

2113 mm
83.19 in.

What is the kerb weight of 2009 Saab 9-5 II 2.0i (220 Hp)?

1885-1975 kg
4156 - 4354 lbs.

What is the maximum permissible mass of 2009 Saab 9-5 II 2.0i (220 Hp)?

2430 kg
5357 lbs.

What is the trunk (boot) capacity of 2009 Saab 9-5 Sedan?

513 l
18.1 cu. ft.

What are the number of gears and the gearbox type of 2009 Saab 9-5 II 2.0i (220 Hp)?

6, manual transmission

Saab
- Saab 9-5
  - 9-5 II
    - 2.8i V6 (300 Hp) XWD Automatic
    - 2.0i (220 Hp) Automatic
    - 2.0i (220 Hp)

Compare

General information

Brand

Saab

Model

9-5

Generation

9-5 II

Modification (Engine)

2.0i (220 Hp)

Start of production

October, 2009

End of production

March, 2011

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Saab 9-5 on the used-car market?

Check its history →

Performance specs

Fuel Type

Petrol (Gasoline)

Weight-to-power ratio

8.6 kg/Hp, 116.7 Hp/tonne

Weight-to-torque ratio

5.4 kg/Nm, 185.7 Nm/tonne

Engine specs

Power

220 Hp @ 5300 rpm.

Power per litre

110.1 Hp/l

Torque

350 Nm @ 2500 rpm. 258 lb.-ft. @ 2500 rpm.

Engine layout

Front, Transverse

Engine Model/Code

A20NHT

Engine displacement

1998 cm³ 121.93 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

86 mm 3.39 in.

Piston Stroke

86 mm 3.39 in.

Compression ratio

9.5:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Twin-scroll turbocharger, Intercooler

Engine oil capacity

5.7 l 6.02 US qt | 5.02 UK qt

Engine oil specification

Volume and weights

Kerb Weight

1885-1975 kg 4156 - 4354 lbs.

Max. weight

2430 kg 5357 lbs.

Max load

455-545 kg 1003 - 1202 lbs.

Trunk (boot) space - minimum

513 l 18.1 cu. ft.

Fuel tank capacity

68 l 17.96 US gal | 14.96 UK gal

Permitted trailer load with brakes (12%)

2000 kg 4409 lbs.

Dimensions

Length

5009 mm 197.2 in.

Width

2113 mm 83.19 in.

Height

1466 mm 57.72 in.

Wheelbase

2837 mm 111.69 in.

Drag coefficient (C_d)

0.28

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, manual transmission

Front suspension

Independent, McPherson type

Rear suspension

Independent multi-link suspension

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

225/55 R17 97H

Wheel rim size

Specs of Saab 9-5 II 2.0i (220 Hp) /2009, 2010, 2011/
