Saab 9-5 (facelift 2001) 3.0 TiD (176 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

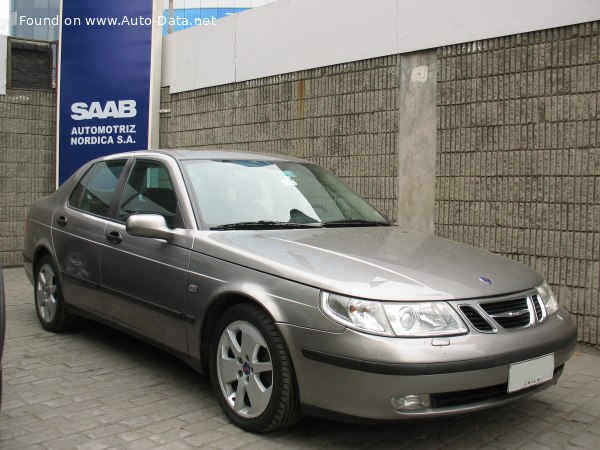

Saab 9-5 (facelift 2001) 3.0 TiD (176 Hp) /Sedan 2001 - 2005/

What is the body type of Saab 9-5 (facelift 2001)?

Sedan, 4 Doors, 5 Seats

How fast is 2001 9-5 (facelift 2001) 3.0 TiD (176 Hp)?

215 km/h | 134 mph
0-100 km/h: 9.3 sec
0-60 mph: 8.8 sec

What is the power output of Saab 9-5 Sedan 2001 3.0 TiD (176 Hp)?

176 Hp, 350 Nm
258 lb.-ft.

What is the engine displacement of Saab 9-5 Sedan 2001 3.0 TiD (176 Hp)?

3.0 l
2959 cm³
180.57 cu. in.

What is the number of cylinders in 2001 Saab 3.0 TiD (176 Hp)?

6, V-engine

What is the drivetrain of Saab 9-5 (facelift 2001) Sedan 2001 3.0 TiD (176 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2001 Saab 9-5 Sedan?

4805 mm
189.17 in.

What is the width of 2001 Saab 9-5 Sedan?

1792 mm
70.55 in.

What is the kerb weight of 2001 Saab 9-5 (facelift 2001) 3.0 TiD (176 Hp)?

1685 kg
3715 lbs.

What is the maximum permissible mass of 2001 Saab 9-5 (facelift 2001) 3.0 TiD (176 Hp)?

2130 kg
4696 lbs.

What is the trunk (boot) capacity of 2001 Saab 9-5 Sedan?

500 l
17.7 cu. ft.

What are the number of gears and the gearbox type of 2001 Saab 9-5 (facelift 2001) 3.0 TiD (176 Hp)?

5, manual transmission

Saab
- Saab 9-5
  - 9-5 (facelift 2001)
    - 3.0 TiD (176 Hp)
    - 2.3 t (185 Hp)
    - 2.2 TDi (120 Hp) Automatic
    - 2.2 TDi (120 Hp)

Compare

General information

Brand

Saab

Model

9-5

Generation

9-5 (facelift 2001)

Modification (Engine)

3.0 TiD (176 Hp)

Start of production

2001

End of production

2005

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Saab 9-5 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

10 l/100 km 23.5 US mpg
28.2 UK mpg
10 km/l

Fuel consumption (economy) - extra urban

5.8 l/100 km 40.6 US mpg
48.7 UK mpg
17.2 km/l

Fuel Type

Diesel

Acceleration 0 - 100 km/h

9.3 sec

Acceleration 0 - 62 mph

9.3 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

8.8 sec

Maximum speed

215 km/h 134 mph

Weight-to-power ratio

9.6 kg/Hp, 104.5 Hp/tonne

Weight-to-torque ratio

4.8 kg/Nm, 207.7 Nm/tonne

Engine specs

Power

176 Hp @ 4400 rpm.

Power per litre

59.5 Hp/l

Torque

350 Nm @ 1800 rpm. 258 lb.-ft. @ 1800 rpm.

Engine layout

Front, Transverse

Engine Model/Code

D308L

Engine displacement

2959 cm³ 180.57 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

87.5 mm 3.44 in.

Piston Stroke

82 mm 3.23 in.

Compression ratio

18:1

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Valvetrain

OHC

Engine oil capacity

7.3 l 7.71 US qt | 6.42 UK qt

Engine oil specification

Coolant

8.1 l 8.56 US qt | 7.13 UK qt

Volume and weights

Kerb Weight

1685 kg 3715 lbs.

Max. weight

2130 kg 4696 lbs.

Max load

445 kg 981 lbs.

Trunk (boot) space - maximum

500 l 17.7 cu. ft.

Fuel tank capacity

75 l 19.81 US gal | 16.5 UK gal

Dimensions

Length

4805 mm 189.17 in.

Width

1792 mm 70.55 in.

Height

1475 mm 58.07 in.

Wheelbase

2703 mm 106.42 in.

Front track

1522 mm 59.92 in.

Rear (Back) track

1522 mm 59.92 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Suspension strut

Rear suspension

Suspension strut

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

205/65 R16

Specs of Saab 9-5 (facelift 2001) 3.0 TiD (176 Hp) /2001, 2002, 2003, 2004, 2005/
