Renault Logan 1.6 i (90 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

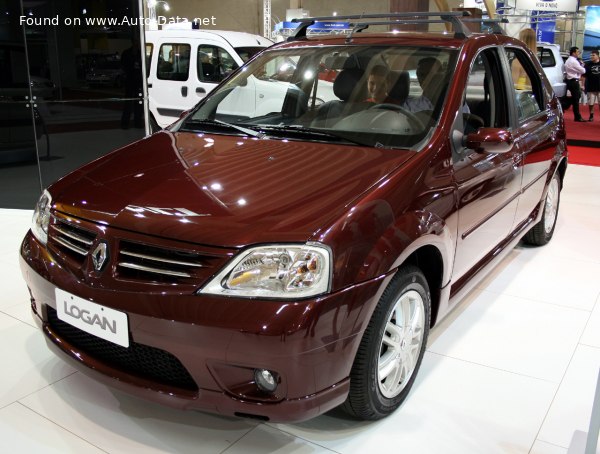

Renault Logan 1.6 i (90 Hp) /Sedan 2004 - 2008/

What is the body type of Renault Logan?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Renault Logan 1.6 i (90 Hp)?

7.3 l/100 km
32.2 US mpg
38.7 UK mpg
13.7 km/l

How fast is 2004 Logan 1.6 i (90 Hp)?

175 km/h | 109 mph
0-100 km/h: 11.5 sec
0-60 mph: 10.9 sec

What is the power output of Renault Logan Sedan 2004 1.6 i (90 Hp)?

90 Hp, 131 Nm
97 lb.-ft.

What is the engine displacement of Renault Logan Sedan 2004 1.6 i (90 Hp)?

1.6 l
1598 cm³
97.52 cu. in.

What is the number of cylinders in 2004 Renault 1.6 i (90 Hp)?

4, Inline

What is the drivetrain of Renault Logan Sedan 2004 1.6 i (90 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2004 Renault Logan Sedan?

4250 mm
167.32 in.

What is the width of 2004 Renault Logan Sedan?

1735 mm
68.31 in.

What is the kerb weight of 2004 Renault Logan 1.6 i (90 Hp)?

980 kg
2161 lbs.

What is the maximum permissible mass of 2004 Renault Logan 1.6 i (90 Hp)?

1540 kg
3395 lbs.

What is the trunk (boot) capacity of 2004 Renault Logan Sedan?

510 l
18 cu. ft.

What are the number of gears and the gearbox type of 2004 Renault Logan 1.6 i (90 Hp)?

5, manual transmission

Renault
- Renault Logan
  - Logan
    - 1.6 i 16V (102 Hp)
    - 1.6 i (90 Hp)
    - 1.4 i (75 Hp)

Compare

General information

Brand

Renault

Model

Logan

Generation

Logan

Modification (Engine)

1.6 i (90 Hp)

Start of production

2004

End of production

2008

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Renault Logan on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

10 l/100 km 23.5 US mpg
28.2 UK mpg
10 km/l

Fuel consumption (economy) - extra urban

5.8 l/100 km 40.6 US mpg
48.7 UK mpg
17.2 km/l

Fuel consumption (economy) - combined

7.3 l/100 km 32.2 US mpg
38.7 UK mpg
13.7 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

11.5 sec

Acceleration 0 - 62 mph

11.5 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

10.9 sec

Maximum speed

175 km/h 109 mph

Weight-to-power ratio

10.9 kg/Hp, 91.8 Hp/tonne

Weight-to-torque ratio

7.5 kg/Nm, 133.7 Nm/tonne

Engine specs

Power

90 Hp @ 5250 rpm.

Power per litre

56.3 Hp/l

Torque

131 Nm @ 2500 rpm. 97 lb.-ft. @ 2500 rpm.

Engine layout

Front, Transverse

Engine Model/Code

K7M

Engine displacement

1598 cm³ 97.52 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

79.5 mm 3.13 in.

Piston Stroke

80.5 mm 3.17 in.

Compression ratio

9.5:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

3.3 l 3.49 US qt | 2.9 UK qt

Engine oil specification

Coolant

4.5 l 4.76 US qt | 3.96 UK qt

Volume and weights

Kerb Weight

980 kg 2161 lbs.

Max. weight

1540 kg 3395 lbs.

Max load

560 kg 1235 lbs.

Trunk (boot) space - minimum

510 l 18 cu. ft.

Fuel tank capacity

50 l 13.21 US gal | 11 UK gal

Dimensions

Length

4250 mm 167.32 in.

Width

1735 mm 68.31 in.

Height

1525 mm 60.04 in.

Wheelbase

2630 mm 103.54 in.

Front track

1466 mm 57.72 in.

Rear (Back) track

1456 mm 57.32 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Suspension strut

Rear suspension

Coil spring

Front brakes

Disc

Rear brakes

Drum

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Tire size

185/65 R15

Wheel rim size

6.5J x 15

Specs of Renault Logan 1.6 i (90 Hp) /2004, 2005, 2006, 2007, 2008/
